Specifications:

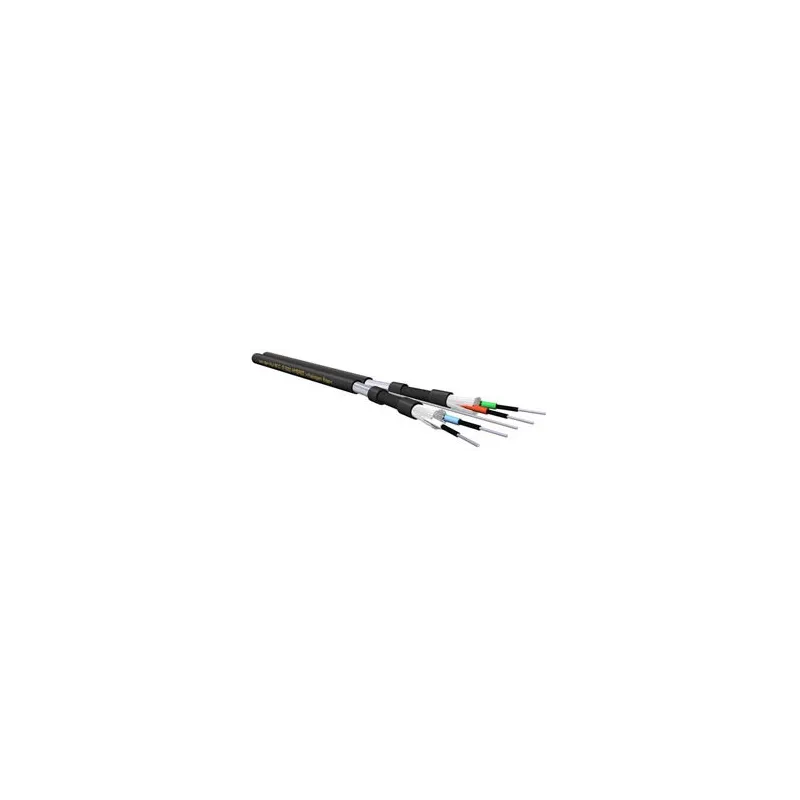

D - 502 HYBRID

Cable Type: Twin line (Figure of 8), screened twin core (Balanced)

Conductor Material: HYBRID: High purity dense Silver coated high purity OFC + Linear Structured Carbon ® saturated layer(s)

Design Purpose / Application Area(s): Tonearm and mixing console / tonearm to preamp, microphone and interlink cable

Eff. Conductor Ø / Eq. AWG No. / Strands: Cores: 0.15 mm² / Cores: AWG 25.4 / Cores: 19; Screen: 96

External Diameter / -Dimensions: 9.8 mm. wide; 4.7 mm. thick

Resistance (20 °C / 68 °F): Cores: 11.3 Ohm/100 m.; Screen: 2.3 Ohm/100 m.

Capacitance: Core-core: 75 pF/m.

Characteristic Impedance:

Insulation / Dielectric Strength / Test Voltage: Cores: Cell PE; Jacket: HULLIFLEX ® 3 / 300 Vrms min.

Connector Types Suitable: Our RCA type C - 5.5; Our tonearm connector; Neutrik XLR; Neutrik 1/4" (6.3 mm.) Jack/Phone plug; Custom mountable on ordered lengths.

Standard Sales Units / -Lengths: 100 m. reels; Other lengths: please consult your van den Hul dealer or the van den Hul distributor in your country.

Jacket Colour(s) Available: Black

Remarks: Is a dual version of the D - 501 HYBRID.

RCA connector terminated units are equipped with a ground-end marking sticker.
