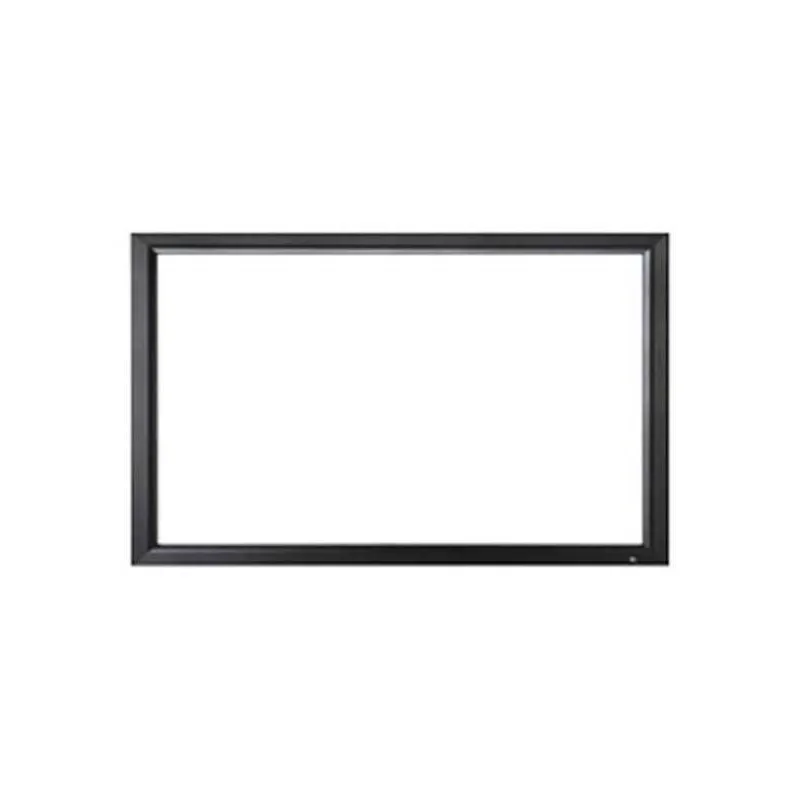

PA-01 / PA-02 (Fixed Type [PAT.])
Screen for UHD projection, Pure Mat III features
Reproduce realistic picture and layering, so effective to avoid moire phenomenon.
Pure Mat III, a highly diffusive fabric, corresponding to 4K or 8K large format screen material, now available with Fixed-frame screens (PA series).
Fabric close-up photo (each side around 25mm)
Random knitted surface, effectively reflect the projector light, image become more natural
Fabric photo under microscope
Super-fine and tighter irregular knitting fabric achieves a clear focus
- Fabric surface
Pure Mat III adopted double-knitted method.
Fibers are knitted in a random manner to give a smooth dispersion of light and this successfully minimizes the interfering stripes visible under some fixed-output projectors.
- Natural color image
The super-fine randomly knitted woven fabric suppress moiré patterns and contributes to smoother diffusion.
This highly diffusive screen can reproduce the natural color tones of an image.
- PVC-Free
Pure Mat III is made of fiber and free from polyvinyl chloride, it is an environmental friendly product.
- Highly Diffusive White Mat
Pure Mat III is a highly diffusive fabric, specially designed to effectively reflect the light in a dispersed and wide angle with spot-free equal brightness.
PAの主な特長
- The spring design creates excellent flatness in all directions and gives the best image quality.
- The frame is made from a "knock-down aluminium frame" which can be easily transported, assembled and maintained.
- Provide with the necessary metal tool for easy fixing to the wall.
- After the two metal joints are fixed vertically on the wall, the horizontal position can be further adjusted (if fixed in a left-right positions, then the screen can be adjusted upwards and downwards.
- PA-01 series: Classic Fixed Type
The screen comes in a matte black finish.
- PA-02 series: Deluxe Fixed Type
The frame with superior velvet finish gives a better appearance of the installation, also provides a perfect black border to the image.
Curved screens added to PA-L series！
OS Screen has announced the addition of curved screens to our PA series for projector end-users using Anamorphic Lens to enjoy widescreen 2.35:1 cinemascope movies at home.
PA-H Series HDTV Format (16:9 / 1.78:1 Aspect Ratio)
| Model | Image
Size
W×H(mm) | Screen
Width
A(mm) | Screen
Hight
B(mm) | Frame
Width
(mm) | Screen
Weight
(kg) |
|---|
| PA-080H-01/02 |
1771×996 |
1975 |
1211 |
43 |
10.0 |
|---|
| PA-090H-01/02 |
1992×1121 |
2196 |
1336 |
43 |
11.0 |
|---|
| PA-100H-01/02 |
2214×1245 |
2418 |
1460 |
43 |
12.0 |
|---|
| PA-110H-01/02 |
2435×1370 |
2639 |
1585 |
43 |
13.5 |
|---|
| PA-120H-01/02 |
2657×1494 |
2861 |
1709 |
43 |
14.0 |
|---|
| PA-130H-01/02 |
2878×1619 |
3082 |
1834 |
43 |
15.5 |
|---|
| PA-140H-01/02 |
3099×1743 |
3303 |
1958 |
43 |
17.0 |
|---|
| PA-150H-01/02 |
3321×1868 |
3525 |
2083 |
43 |
18.5 |
|---|
| PA-160H-01/02 |
3542×1992 |
3746 |
2207 |
43 |
30.0 |
|---|
| PA-170H-01/02 |
3764×2117 |
3525 |
2232 |
43 |
32.0 |
|---|
| PA-180H-01/02 |
3985×2242 |
4189 |
2357 |
43 |
34.0 |
|---|
| Model | White Mat
(WG103) | White Mat
(WG207) | Pure Mat III
(WF301) | Pure Mat II EX
(WF203) | Pure Mat II plus
(WF202) |
|---|
| PA-080H-01/02 |
○ |
- |
○ |
○ |
○ |
|---|
| PA-090H-01/02 |
○ |
- |
○ |
○ |
○ |
|---|
| PA-100H-01/02 |
○ |
- |
○ |
○ |
○ |
|---|
| PA-110H-01/02 |
○ |
- |
○ |
○ |
○ |
|---|
| PA-120H-01/02 |
○ |
- |
○ |
○ |
○ |
|---|
| PA-130H-01/02 |
○ |
- |
○ |
○ |
○ |
|---|
| PA-140H-01/02 |
○ |
- |
○ |
○ |
○ |
|---|
| PA-150H-01/02 |
○ |
- |
○ |
○ |
○ |
|---|
| PA-160H-01/02 |
● |
○ |
- |
- |
- |
|---|
| PA-170H-01/02 |
● |
○ |
- |
- |
- |
|---|
| PA-180H-01/02 |
● |
○ |
- |
- |
- |
|---|
| Model | Sound Mat
(WS102) | Ultra Beads
Premium White
(BU201) | Ultra Beads
Premium Gray
(BU202) | Peal
(PP201) | 3D Sliver
(SD) |
|---|
| PA-080H-01/02 |
○ |
○ |
○ |
○ |
○ |
|---|
| PA-090H-01/02 |
○ |
○ |
○ |
○ |
○ |
|---|
| PA-100H-01/02 |
○ |
○ |
○ |
○ |
○ |
|---|
| PA-110H-01/02 |
○ |
○ |
○ |
○ |
○ |
|---|
| PA-120H-01/02 |
○ |
○ |
○ |
○ |
○ |
|---|
| PA-130H-01/02 |
○ |
○ |
○ |
- |
○ |
|---|
| PA-140H-01/02 |
○ |
○ |
○ |
- |
○ |
|---|
| PA-150H-01/02 |
○ |
○ |
○ |
- |
○ |
|---|
| PA-160H-01/02 |
○ |
○ |
○ |
- |
● |
|---|
| PA-170H-01/02 |
○ |
○ |
○ |
- |
● |
|---|
| PA-180H-01/02 |
○ |
○ |
○ |
- |
● |
|---|
