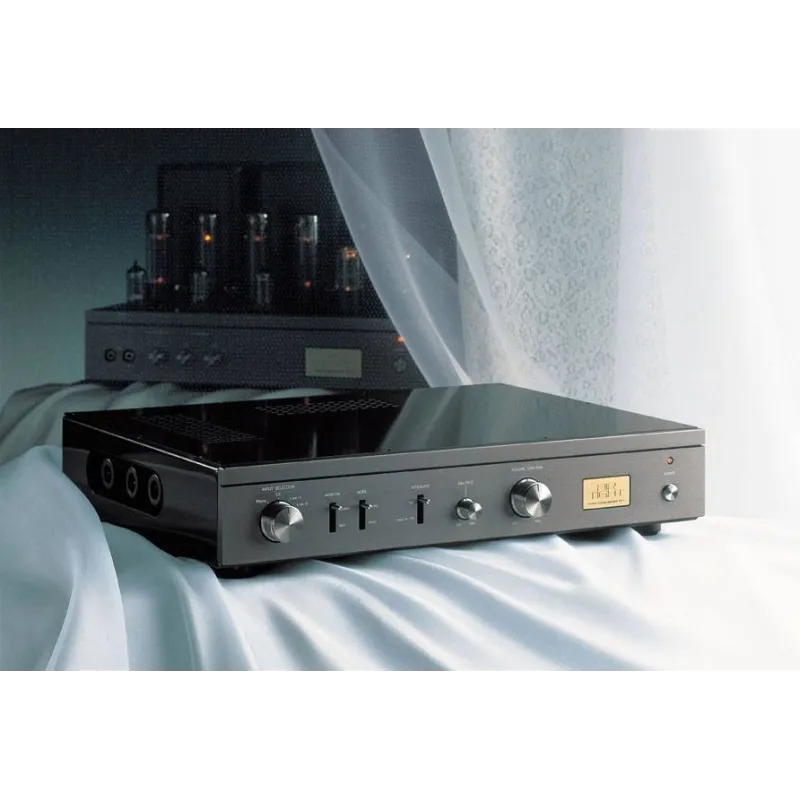

ATC-1 Stereo Line-Control Amplifier
Satisfaction of craving for past with modern technology
From its drop-dead gorgeous looks to its sophisticated engineering, the ATC-1 exudes its pedigree as one of the finest full-function preamplifiers extant. Point-to-point, hand wired construction (with OFC copper), hand-selected and pre-aged 12AX7 tubes, and a highly rigid, nanmagnetic chassis add up to a component worthy of the finest ancillary equipment. The ATC-1 features a simple, sensibly laid-out front panel, and is a superb complement, sonically and cosmetically, to the ATM-1 and ATM-2 amplifiers.
Features include:
- Highly reliable 12AX7 valves meticulously selected after ageing
- 3-stage low-impedance K-K NF configuration equaliser acclaimed for low distortion & wide frequency response
- Simple, single-stage flat amp for pure sound
- High-voltage B-power supply with quick recovery diode
- PCB-free hand wiring
- Discrete, highly rigid dia-magnetic chassis
- EL-core power transformer
Specification
|
Valves employed |
12AX7 (ECC83) x 5 |
|
Output voltage |
rated 2V, max. 15V |
|
Output impedance |
600 ohm (pre-out, EQ-out) |
|
THD |
0.05% (phono), 0.02% (line) |
|
Input sensitivity |
phono: 1.8mV (output 1V), line: 150mV (output 1V) |
|
S/N ratio |
85dB (phono) & 98dB (line) |
|
Dimensions |
430 (W) x 325 (D) x 90 (H) mm |
|
Weight |
7kg |
