ASTELL & KERN PD10
Portable Hi-Res player with quad DAC and dock with XLR outputs.
HEXA architecture: completely separate digital/analog signals
4 AKM AK4499EX DACs + 2 AK4191EQ modulators
Resolutions up to 32-bit/768kHz and DSD512
Bluetooth 5.3 with LDAC and aptX HD
6" Full HD touchscreen + 256GB internal storage + 2TB microSD
Includes multifunction dock with balanced XLR outputs
Up to 15 hours of battery life + Roon Ready
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
ASTELL&KERN PD10. Flagship Portable Digital Audio Player with HEXA Architecture and Multifunction Dock

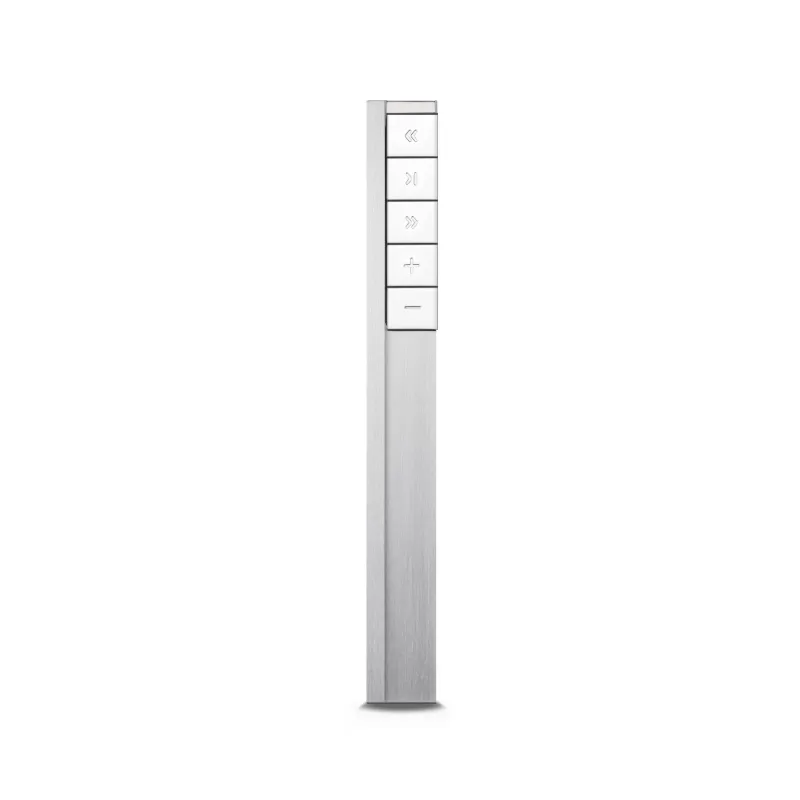

The PD10 redefines the concept of a high-fidelity portable audio player, blending cutting-edge technology with a minimalist design inspired by the award-winning A&ultima SP3000M. Its updated aesthetic — replacing the traditional volume wheel with sleek touch-sensitive buttons — signals a shift toward greater performance and flexibility.
HEXA Architecture: Full Signal Separation for Maximum Fidelity
At its core, the PD10 employs HEXA architecture, which fully separates digital and analog signal paths. This layout drastically reduces circuit interference, resulting in a purer, more detailed, and more dynamic sound. It also features dedicated circuitry for balanced and unbalanced outputs, optimizing performance for each connection type.
Key Innovations of the PD10
HEXA architecture: full digital/analog separation
Dual amplifiers optimized by impedance
Independent circuits for balanced and unbalanced outputs
4 x AKM AK4499EX DACs for top-tier conversion
2 x AKM AK4191EQ multibit delta-sigma modulators
Bluetooth 5.3 with aptX HD and LDAC for wireless Hi-Res audio
Octa-core processor for fluid and efficient operation
6" Full HD touchscreen for full system control
Battery life up to 15 hours (with FLAC files)

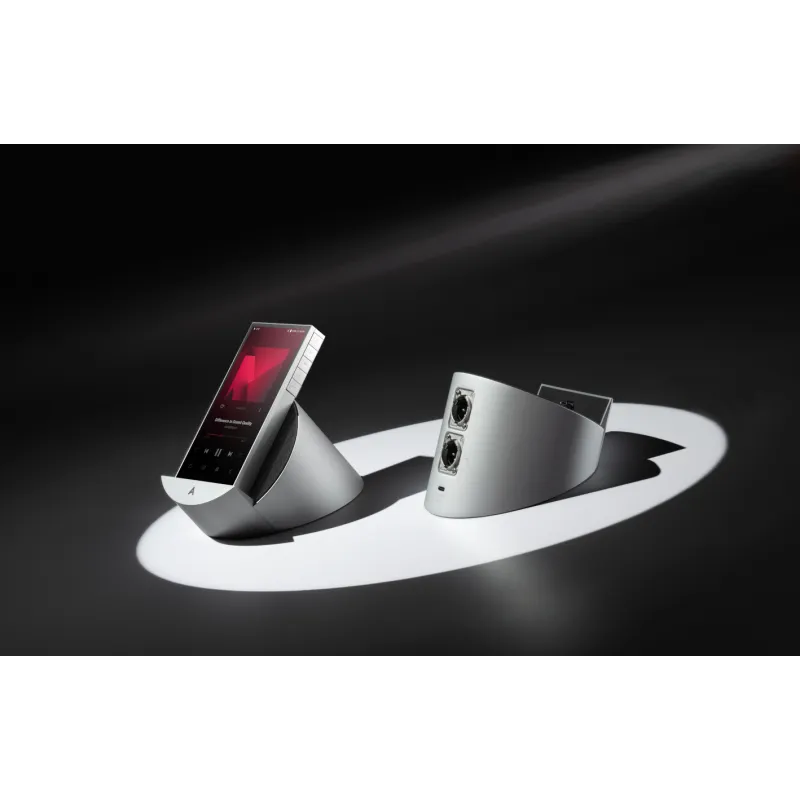

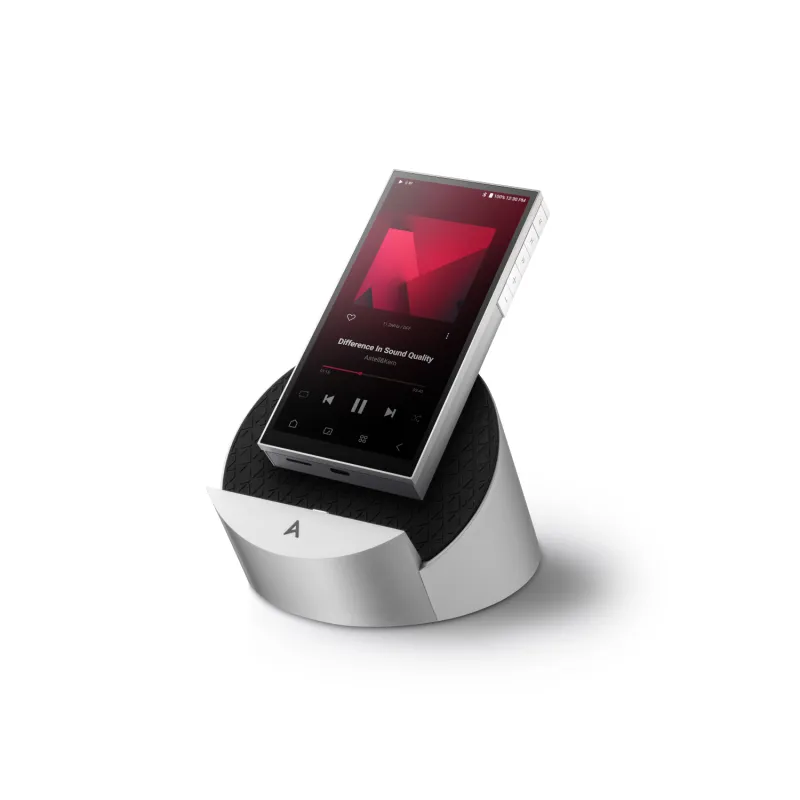

Charging Base with XLR Outputs – More Than Just a Dock
The PD10 includes a premium aluminum dock that not only charges the device but also acts as a dedicated signal hub, offering balanced XLR analog outputs — ideal for integration into high-end stationary audio systems.
PD10 Technical Specifications
Reference-grade portable Hi-Res player
DACs: 4 x AKM AK4499EX
Modulators: 2 x AKM AK4191EQ multibit delta-sigma
Supported formats: PCM up to 32-bit / 768 kHz, DSD up to DSD512, MQA
Bluetooth: 5.3 with aptX HD and LDAC
Internal storage: 256 GB
Expandable via microSD: up to 2 TB
Display: 6" Full HD touchscreen
Clock: High-precision sync clock
Headphone outputs: 1 x balanced, 1 x unbalanced
Dock outputs: Balanced XLR, USB digital input
Frequency response: 20 – 70,000 Hz (±0.61 dB, balanced)
SNR: 128 dB (balanced, 1 kHz)
Crosstalk: –144 dB (balanced, 1 kHz)
Battery life: Up to 15 hours (FLAC 16-bit / 44.1 kHz)
Roon Ready: Yes
Player dimensions: 75.4 × 149.5 × 17.3 mm
Player weight: 435 g
Dock dimensions: 126 × 97.1 × 166.4 mm
Dock weight: 565 g
Why Choose the PD10?
Reference-class technology in a portable format
Perfect for discerning audiophiles on the go or in desktop setups
Full Hi-Res and MQA support
Next-gen wireless connectivity
Multifunction dock with balanced XLR outputs
