The new Wharfedale EVO4 has grown out of the extensive research and development that produced ELYSIAN's flagship loudspeakers and borrows much of the technology involved in ELYSIAN.
The main focus is on AMT development, resulting in a radically different way of reproducing high-frequency details efficiently and accurately. Enclosure technology, similar to ELYSIAN's, provides a stable and solid foundation for drive units with radial edges to help integrate driver output with room acoustics. In addition, the exclusive SLPP bass reflex system, developed for ELYSIAN, is now incorporated into EVO4.

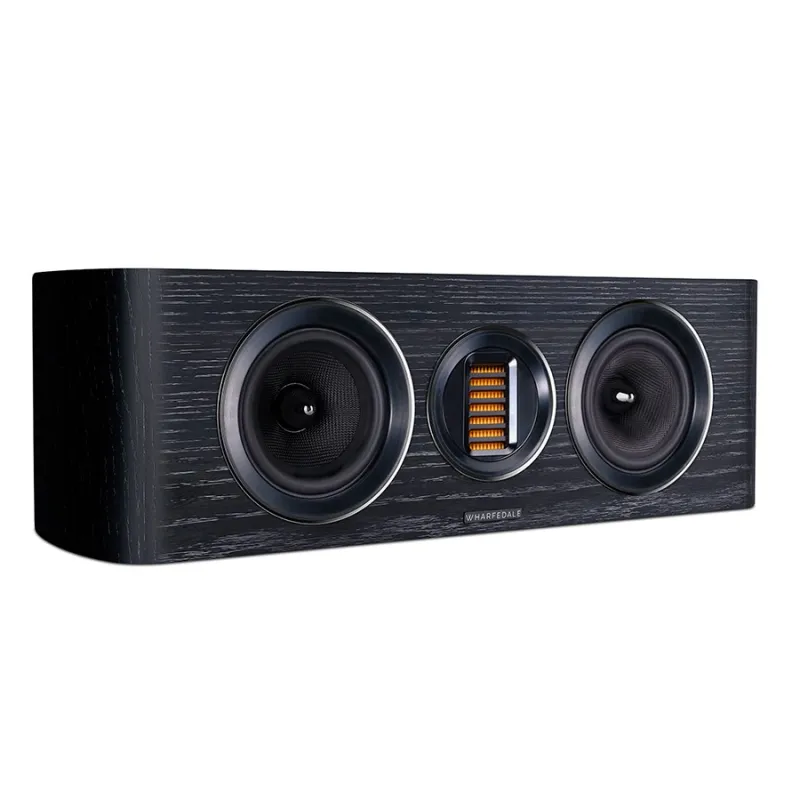

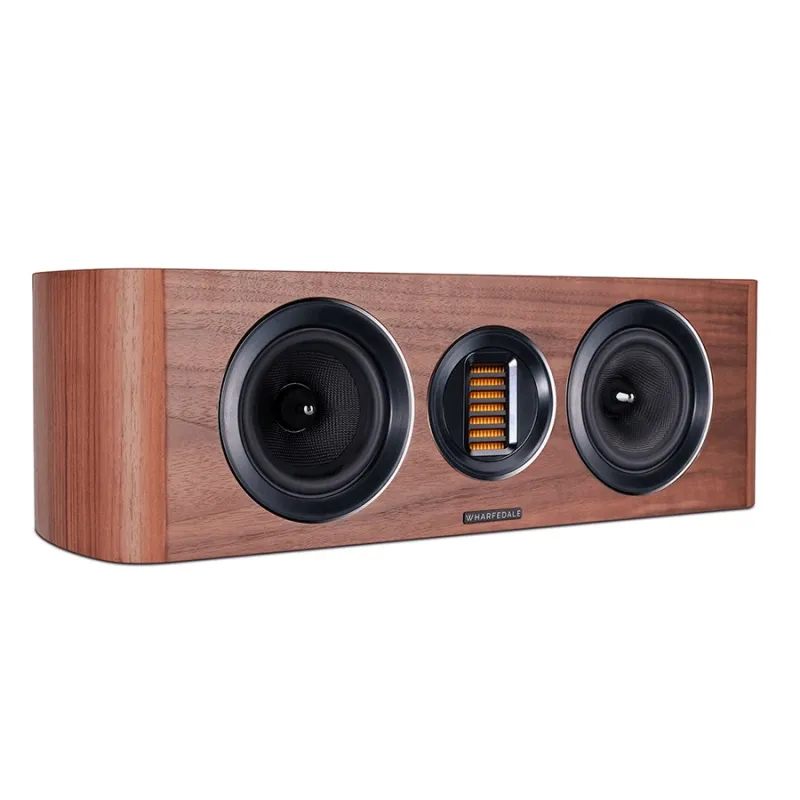

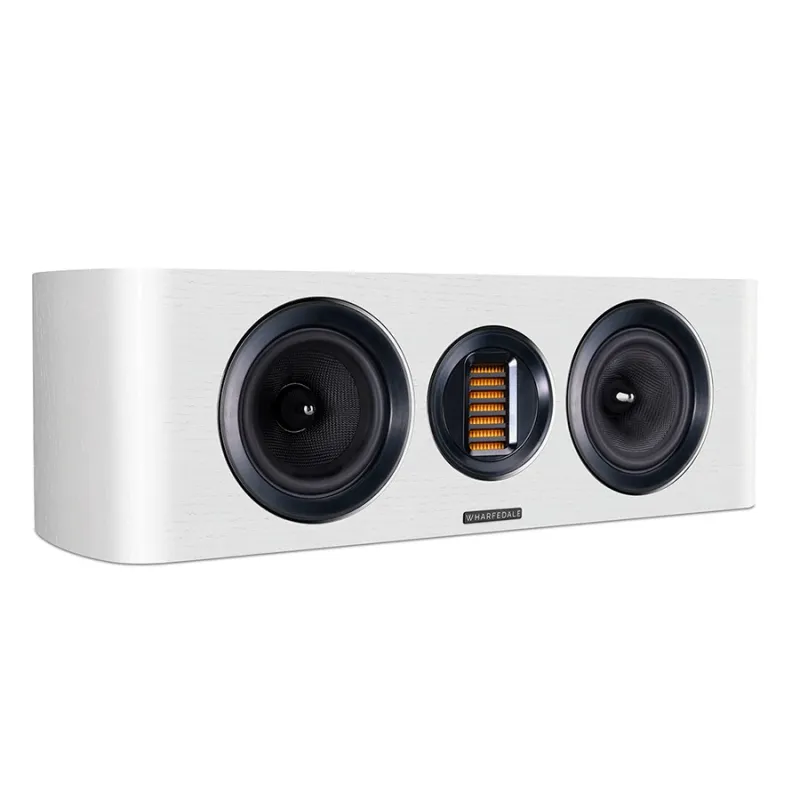

Overview 2-way center speaker.
Bass reflex box.
2-Way Complement Transducer.
Bass Driver 5 "(130mm) Black Woven Kevlar® Cone x2. Midrange
Driver ...
Treble Driver 30 * 60mm AMT.
AV Shield No.
Sensitivity (2.83V @ 1M) 89dB.
Recommended Amplifier Power 25-100W.
Peak SPL 103dB.
Nominal impedance 8Ω.
Minimum impedance 4.4Ω.
Frequency response (+/- 3dB) 50Hz ~ 22kHz.
Bass extension (-6dB) 45Hz. Crossover
frequency 2.7kHz.
Dimensions ( H x W x D ) 185 x 585 x (265 + 10) mm.
Net weight 11.6kg / pcs.
