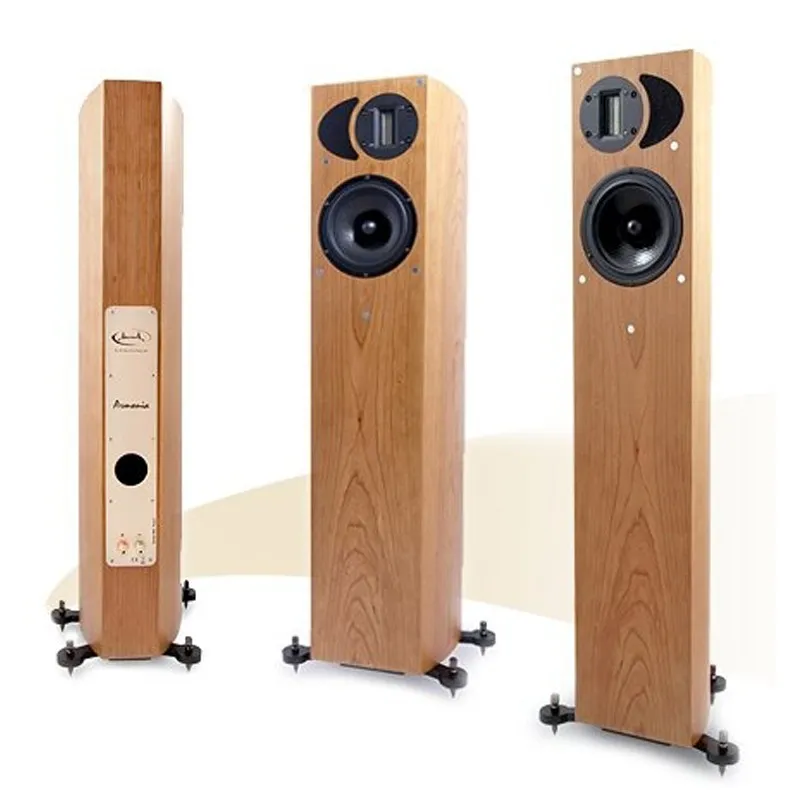

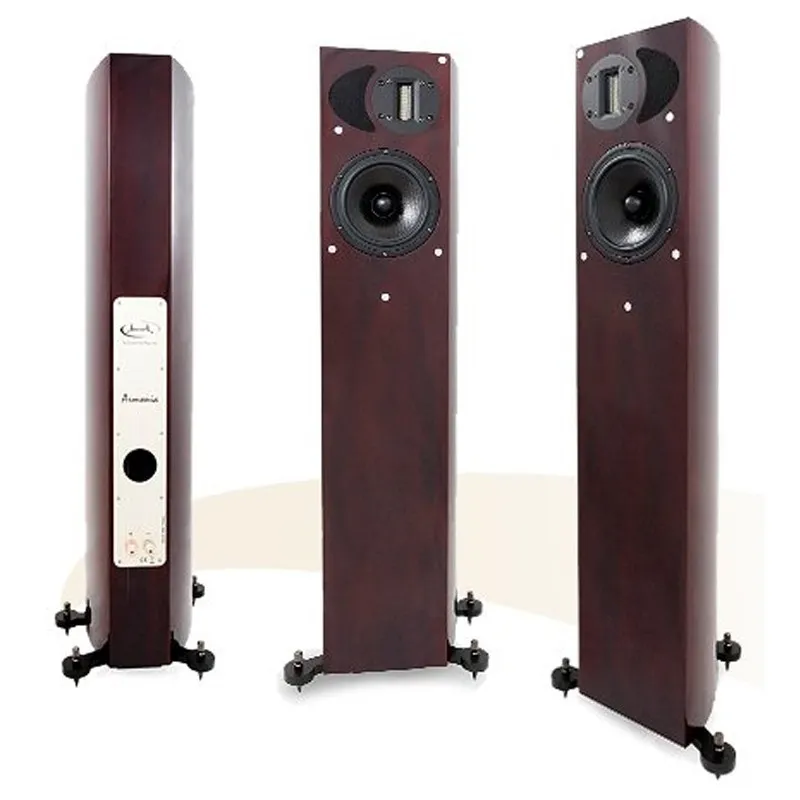

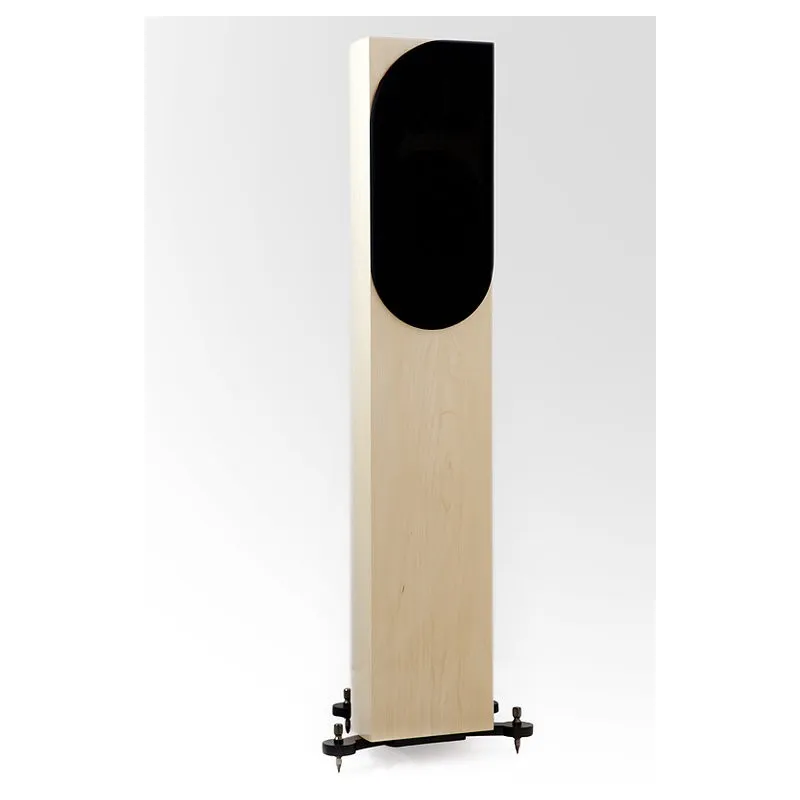

Armonia is the first loudspeaker of the Apertura range to use this specific shape, which helps to make this loudspeaker so neutral.
Two sides with curves of different radius. No symmetrical faces, but angles between front and back panels carefully calculated to maximize stiffness and to reduce cabinet resonance.

The multiple internal bracing panels form the skeleton on which the various panels are assembled. These multiply panels of high density MDF make a laminar structure more rigid and damped than a conventional structure.
To optimize the dispersal of structure‐borne noise, the Armonia enclosure stands on its central cone positioned on the axis of the center of gravity. The four other spikes are for stability only.

Armonia use a 7" bass/mid‐range unit driven by a powerful magnetic circuit of 11cm in diameter, totally decompressed. The "Isotactic matrix "cone combines stiffness and damping, to allow playback of a wide bandwidth without any break‐up mode and with low distortion.

The chassis shape is the result of a study using CAD and finite element analysis. Thanks to its thin branches, the frame leaves the rear of the drive unit totally free to improve the propagation of the rear wave‐form.

The high frequency drive unit is from a new generation of ribbon tweeter that uses an aluminum / polymer sandwich diaphragm, more linear and less fragile than previous generations.
The use of a Neodymium magnetic circuit and a membrane of only 18mg (10 times less than a dome tweeter of similar emissive area), allows accurate reproduction of all transients.

The crossover is the brainchild of Christian Yvon.
This proprietary filter structure called "DRIM ' has an ellipse on one of its branches, with three different slopes: 6dB, 12dB, 24dB per octave. The overall intersection is 6 dB at the cutoff frequency, allowing a minimum intermodulation zone.
A strict phase optimization makes possible a three‐dimensional stereo soundstage.

Musically, Armonia combines a wide frequency response, accuracy, and a remarkable sense of musical phrasing. It is capable of great gentleness, but remains rock‐solid even on the most dynamic tracks.

Armonia may be associated with low‐mid power (40‐50W) high‐quality electronics, as well as the most ambitious amplifiers.

Technology

RibbonTweeter
Sandwich membrane 3 "and only 18mg.
NeodymiumFerBoro magnetic circuit.

18 cm. Matrix membrane (braided polypropylene composite). Linear for a wide range of frequencies and perfectly damped.
It is equipped with a powerful motor based on an 11 cm ferrite. In diameter, and a copper ring in the air gap that reduces distortion.

The cabinetmaking
The medium-high density multi-layer joinery, with a total thickness of 21 mm, molded under pressure around a structure of four laces of strong thickness.
Only this type of set-up allows an absolute neutrality of the cabinetmaking.

Filter
Filter structure DRIM
High-end audio components: Jantzen inductance vitrified wire and section 1.4mm2,
Mundorf and Jantzen polypropylene film capacitor.
Manual Wiring on printed circuit FR4-copper 130um.
Internal wiring copper / silver insulation PTFE.

Details

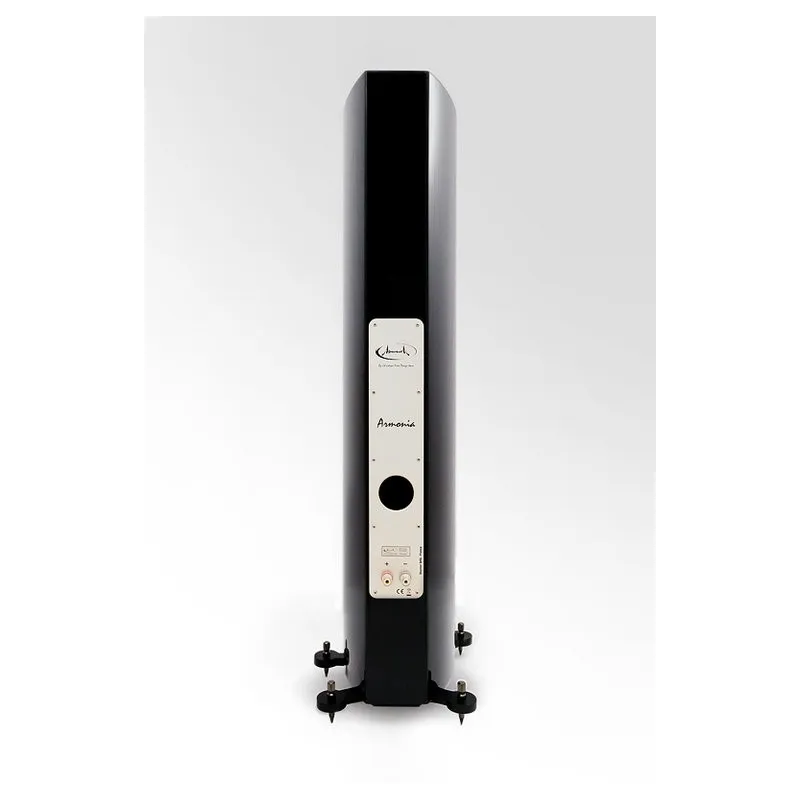

The Harmony rests on a central cone located on the axis of the center of gravity. This allows to optimize the evacuation of solidary noises.
The four lateral tips serve only to stabilize the enclosure.

Technical characteristics

• Speaker 2-way speaker and 2 speakers
• Frequency response 37-30 000Hz / + -3dB
• Sensitivity 88dB / 1w / 1m
• Impedance 8 ohms
• Charging Bass-Reflex
• Speakers Medium / serious 17cm Isotactic Matrix
• Ribbon Tweeter 3 "
• Cut-off frequency of the 3kHz filter
• Connections Monocable
• Accepts spades and bananas
• Dimensions 216 x 271 x 1030 mm 350 x 293 x 1081 mm (with feet)
• Weight 25.6Kg net (29Kg packed)
