Burson Audio Conductor V2+. Preamplifier, headphone amplifier DAC.

bloques info producto

Bank Transfer (3% OFF)

If you make the payment via bank transfer, you will receive an extra 3% discount on your order.

For personalized advice, contact us with no obligation

957460112
info@audiohum.com

Need to upgrade your equipment?

Would you be interested in trading in a device when purchasing this item?

Renovar equipo




Burson Audio Conductor V2+. Preamplifier, headphone amplifier DAC

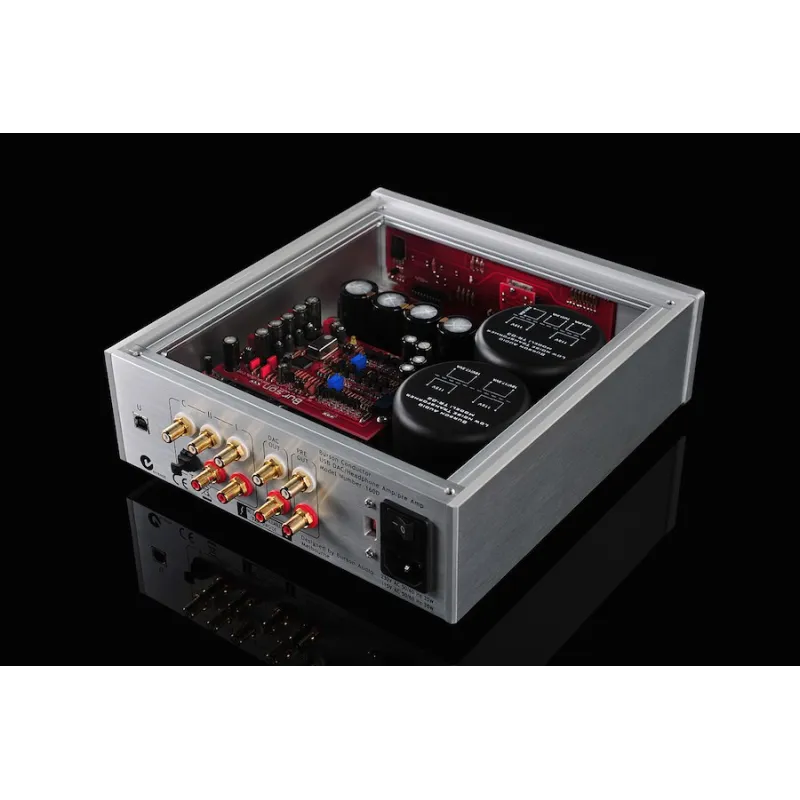

Thanks to a new high density winding technique, the new power transformers that support the headphone amp and preamp section are able to output twice as much power as the Conductor V1. The entire circuitry has been redesigned based on our new V5 SS opamp which is the best sounding audio opamp in the world. While still a pure Class ­A designed with Field Effect Transistors, Conductor V2 fully utilize the two 70W transformers to output over 8200 mW per channel into 16ohm. It will comfortably drive the toughest headphone in the world while delicately handling the most sensitive.

The PGA2310 is the flagship volume control chip offered by Texas Instruments. With an impressive dynamic range of 120dB and 0.0004 THD measurement, it is the go to solution for pro audio applications and broadcast studios, allowing for a 0.5dB per step of fine control to Conductor V2. With the PGA2310 the Conductor V2 operate smoothly and silently with no mechanical moving parts. It will serve you seamlessly for years to come!

The V2+ provides the addition of a reference class DAC PCB which allows for TOS link, Coaxial Input that supports up to 24bit 192K of input. Furthermore, you could add the latest XMOS USB module that supports most IOS & Android devices, up to 32bit/364K sampling, 256DSD and DXD.

Burson Audio Conductor V2+ Headphone Amplifier Features

  • V5 SS opamp
  • PGA2310 volume control chip offered by Texas Instruments
  • Reference class DAC

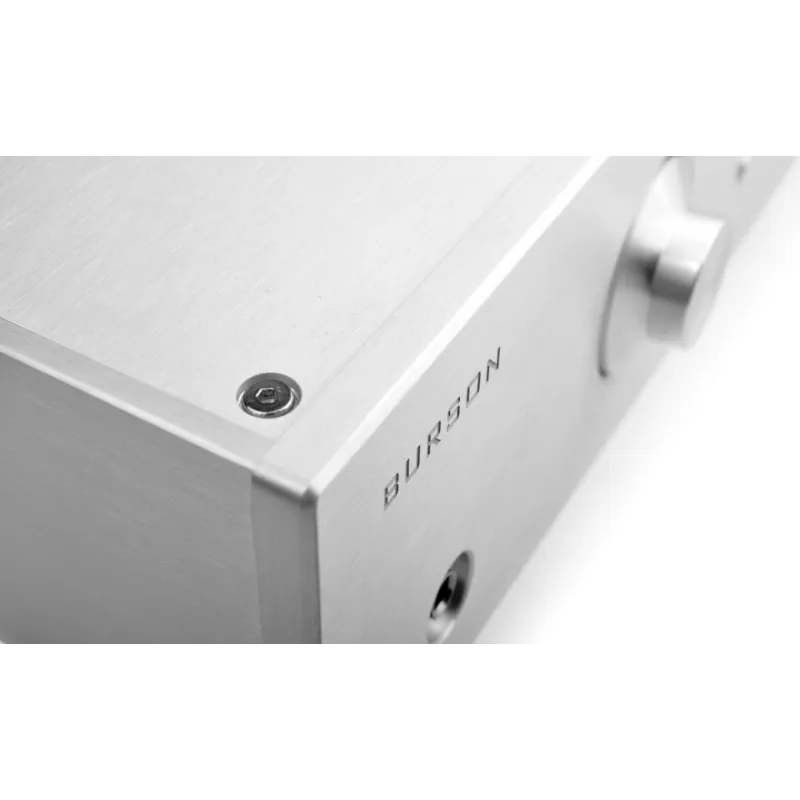

  • Silver anodized aluminum case
  • RCA line level input
  • RCA Pre Amp output
  • 1/4" Headphone Jack output

Burson Audio Conductor V2+ Headphone Amplifier Specifications

  • Input impedance: 35 KOhms
  • Frequency response: ± 1 dB 0 – 56Khz
  • THD: <0.003%
  • Output impedance (Headphone Amp): 3 Ohm
  • Output impedance (Line Level): 25 Ohm
  • Impedance (Headphone Jack)
    • 16 Ohm @8.2W - SN 92db with 99% separation
    • 32 Ohm @4W - SN 95db 99% separation
    • 100 Ohm @1.46W - SN 94db 99% separation
    • 150 Ohm @1W - SN 94db 99% separation
    • 300 Ohm @0.5W - SN 95db 99.5% separation
  • DAC Spec
    • Channel Separation: 142 dB @ 1KHz, 135 dB @ 20KHz
    • THD+N: 0.0005% @ 1KHz, 0dBFS
    • COAX & Toslink / SPDIF: 24 bits / 44.1K, 48K, 88.2K, 96K, 176.4K, 192KHz
  • USB Spec/ OS Compatibility
    • Windows XP, 7, 8, 10
    • Mac OSX
    • iOS
    • Android (require OTG support)
    • PCM Support: PCM ? 384kHz @ 16, 24 or 32bits
    • Native DSD: Native DSD 64 / 128 / 256
    • DSD over PCM: DoP64 / DoP128 / DoP256
    • Asynchronous
    • Isochronous

Burson Audio Conductor V2+ Headphone Amplifier Includes

  • Burson Audio Conductor V2+ Headphone Amplifier

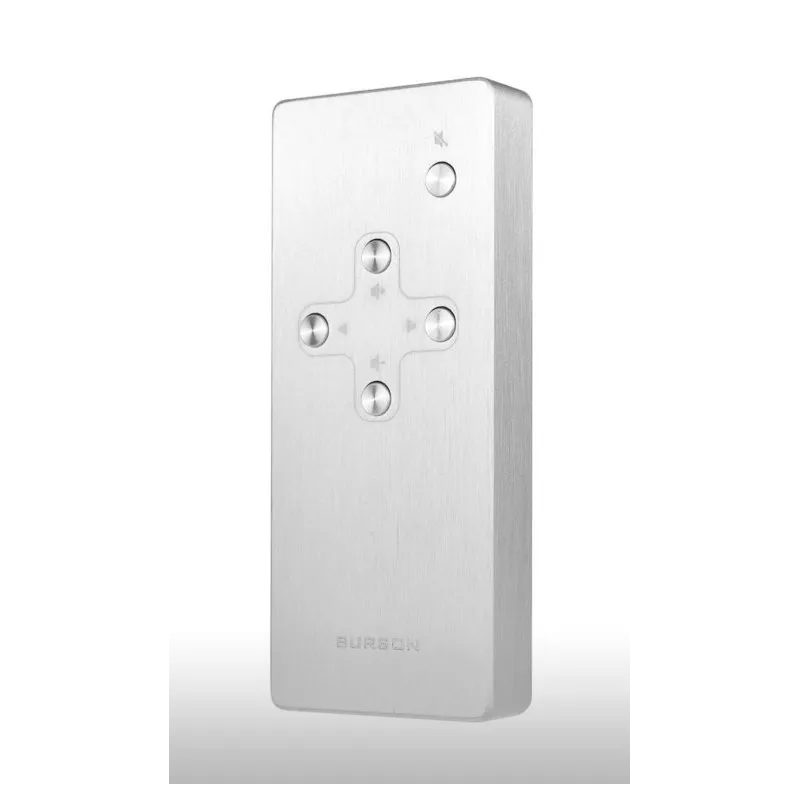

  • Remote Control
  • RCA Cable
  • Power Cable
