This article is 'End of Life'. This means that we unfortunately can no longer supply these (now and in the future). The best alternatives for this article are the miniDSP UMIK-1 or the miniDSP UMIK-2.

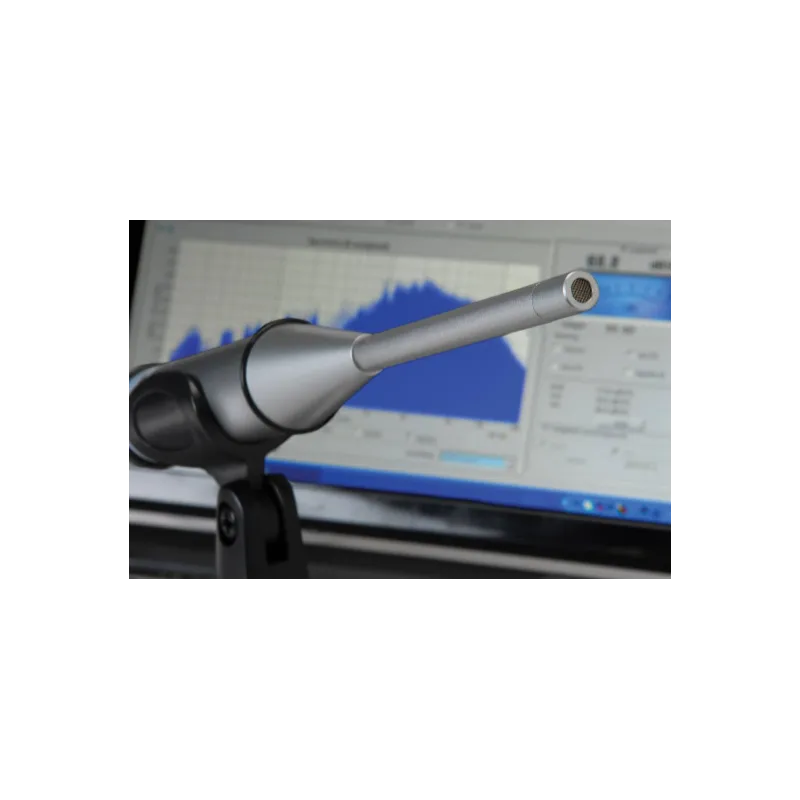

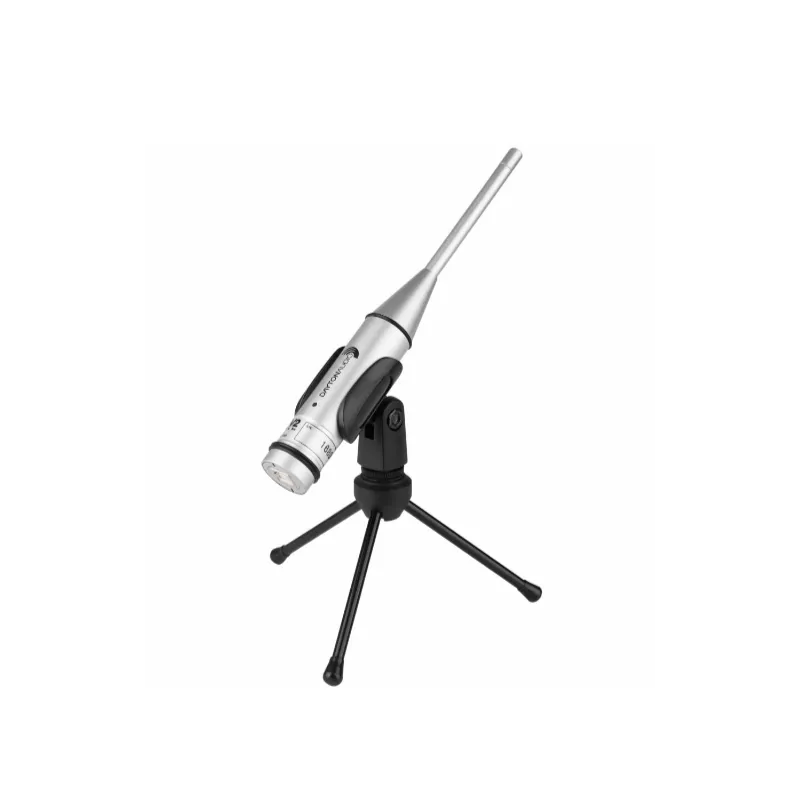

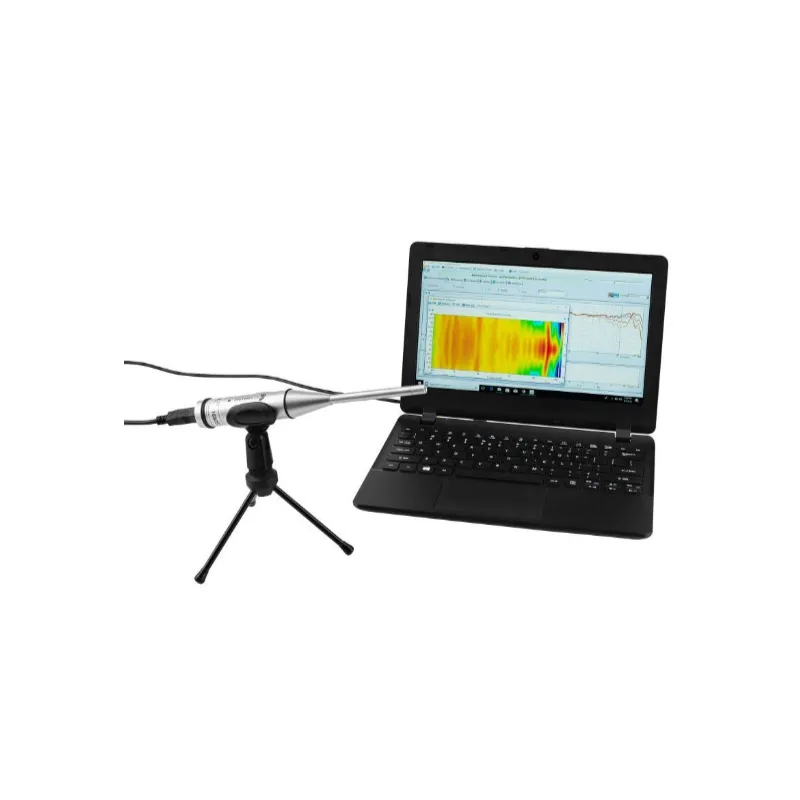

Dayton Audio's OmniMic V2 is a must-have omnidirectional acoustic measurement system for audio system integrators, acoustic engineers, and residential A/V installers. The OmniMic V2's new hardware provides fast, comprehensive, and accurate audio measurements.
Highlights:
Updated software and improved hardware
Compact, portable, accurate, affordable
Intuitive software—open the box, start testing in minutes
Perfect for setting up home theater systems
Optimized for use with netbooks and laptops
Accurate response down to 5 Hz, fully calibrated, includes FRD file
For professionals and hobbyists—design and tune speaker systems and arrays
Product details:
Dayton Audio OmniMic V2 Computer Based Precision Room Measurement System
Acoustic measurements just got easier!
Dayton Audio's OmniMic V2 was developed in collaboration with Liberty Instruments, inventors of the Praxis analysis tool. Powerful, versatile, yet easy to use, the OmniMic V2 will become an indispensible part of your audio toolbox—whether for testing individual speaker components or entire in-place audio systems of every description. The OmniMic V2 provides quick and accurate measurements that will reduce installation time, saving you both labor and money.

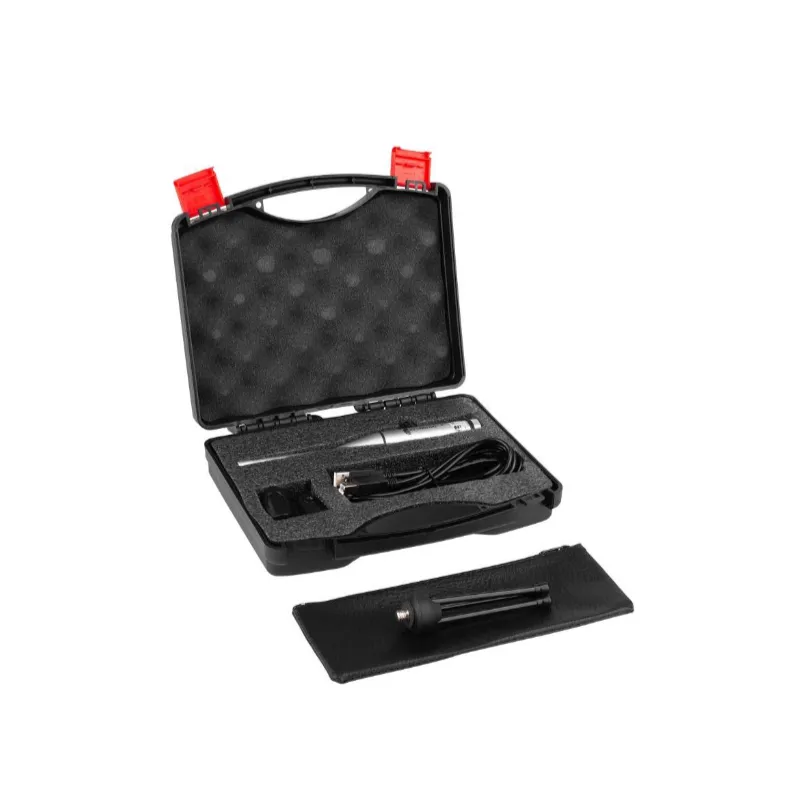

The OmniMic V2's test signals may be initiated from the host computer, or from any audio CD player. System includes calibrated USB microphone, rubberized mic clip, 6 ft. USB 2.0 cable, desktop tripod stand, and carrying case. Compatible with Windows XP, Vista, Windows 7, Windows 8, and Windows 10.
OmniMic 5.1 Test DVD now available! Now, make home theater measurements with the ease and speed of the OmniMic!
Measurements:
SPL meter with A, B, C, or no weighting
Spectrum analyzer, FFT, or RTA
Frequency response with phase and impulse response
Oscilloscope function to view complex waveforms
Harmonic distortion: 2nd, 3rd, 4th, 5th harmonics plus THD
RT60 reverberation: measures sound reflection
Bass decay function identifies room modes and helps determine proper subwoofer placement
Polar Plotting, in flat or 3D radar format
Wavelet Spectrogram (color) to the Waterfall group
Curve Math for live or added curves
Auto-naming of repeated FRD measurements; updated
Snapshots to PNG, BMP, JPG or WMF formats
Measurement down to 5 Hz
Energy-Time Curves, with configurable band limiting
Supports new file-based microphone calibration
Expanded Help Files
Printer selection
Note: Windows 8 Users
Windows 8 has a USB recording bug. To get around this issue and use the OmniMic on a machine using Windows 8, please perform the following:
Find the OmniMic icon, Start Menu entries, etc., that you use to start the OmniMic software. Instead of left-clicking the icon, right-click and then left-click on the "Properties" menu item. A "Properties" window should open. Select the compatibility tab and find a checkbox labeled "Run this program in compatibility mode for:" There is a drop-down box just below the checkbox, set that to "Windows XP (Service Pack 3)". Then put a check in the checkbox and click "Ok" to close the properties windows.
Now when you start OmniMic using that icon (or menu item), it will run in the XP mode that avoids the Windows 8 USB recording bug.
Calibrate Your OmniMic V2 Instantly
A unique serialized calibration .txt file will be available for your OmniMic V2. Once you receive your microphone, click Calibrate OmniMic V2 where you will be prompted to enter the serial number found on the base of your calibrated OmniMic V2. After entering the serial number, your unique calibration .txt file will be available for you to download.
Specifications:
Article number: OmniMic V2
Measurement Domain: Acoustic
Connector: USB-B
Calibration file: Unique calibration for frequency and phase
Power: USB-Powered
Polar pattern: Omnidirectional
Capsule Type: Electret
Frequency response: 5 - 20kHz (Calibrated)
USB-Audio: USB 2.0 streaming
