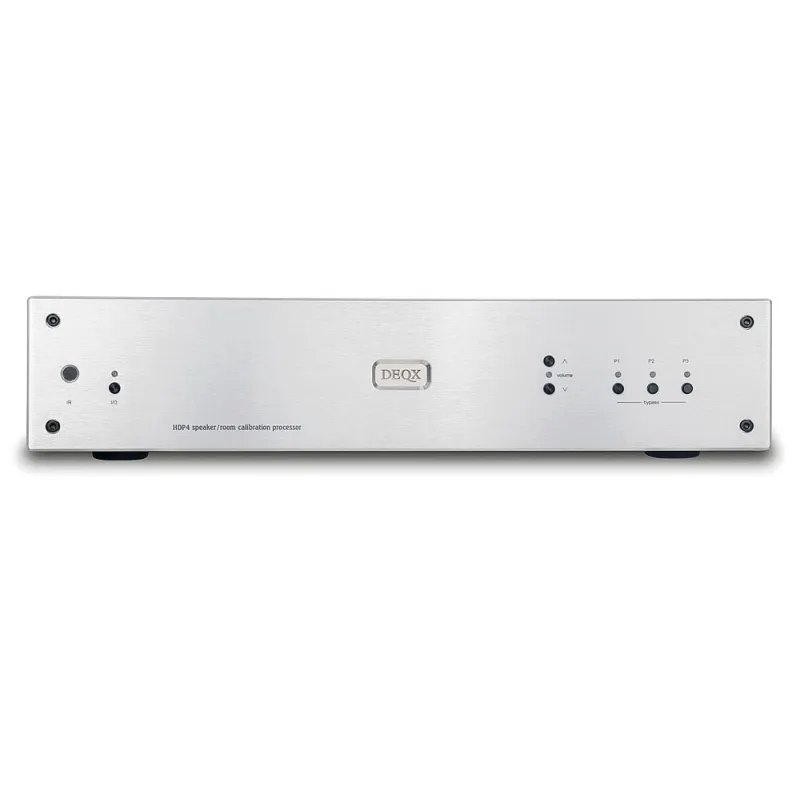

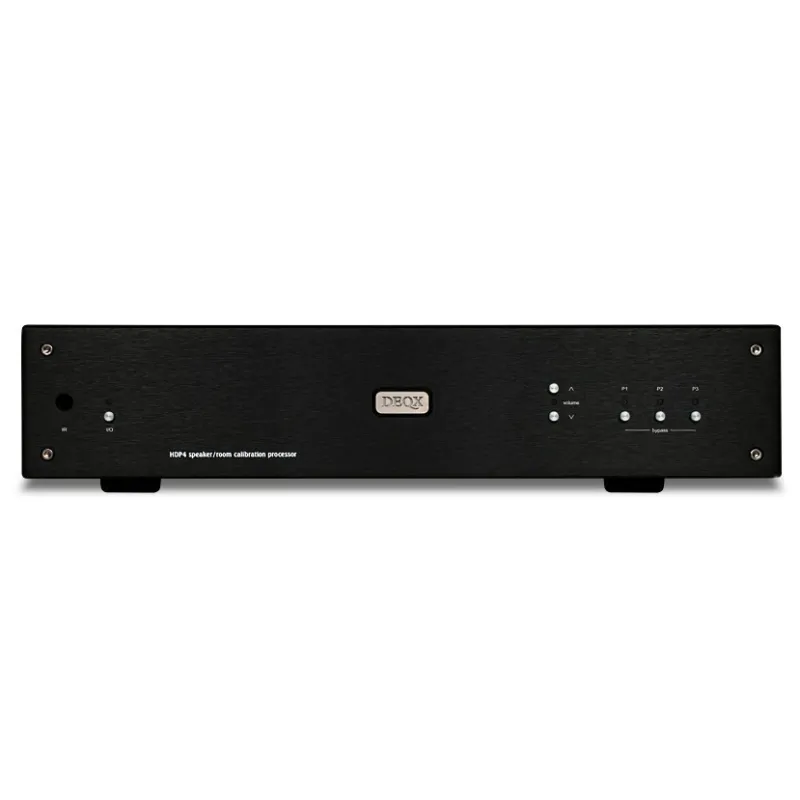

DEQX HDP-4. Preamplifier.
The HDP-4 is DEQX's functions as a speaker / room correction processor and 3 way digital crossover. It also performs the duty of pre-amplifier with 6 analog and digital inputs, volume control and both unbalanced and balanced outputs.
Features:
- Speaker correction - measure and correct the frequency response, group delay and phase anomalies of your loudspeakers using DEQX's unique linear phase filters
- Room correction - measure your room and implement up to 10 bands of real time controllable digital parametric EQ with selectable frequency, bandwidth and gain
- Digital crossover - create up to a 3 way crossover with selectable crossover filter types, slopes, time delay and level gain/cut. You can use the crossover functionality to add subwoofer(s) to your existing speakers and/or replace the existing crossover in your speakers to go 'active'
- Recording equalization - implement up to 3 bands of real time EQ using the remote control
- Digital pre-amplifier - with 4 digital and 2 analog inputs as well as volume control, all accessible via the remote control, DEQX can act as a full function pre-amplifier and directly connect to your power amps
Specifications:

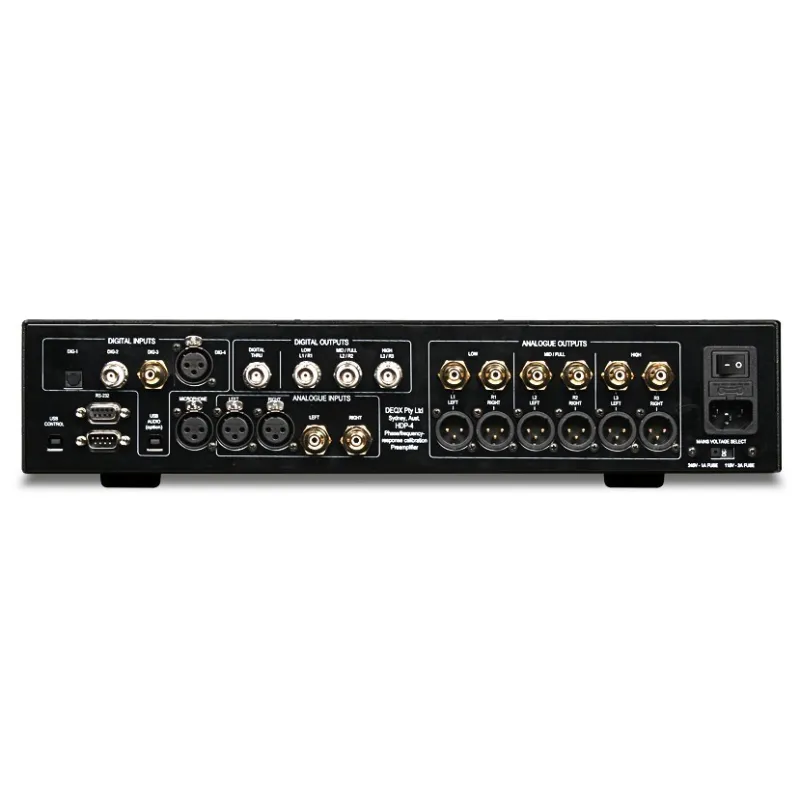

- Two stereo analog inputs: Unbalanced (2 x RCA) and Balanced (2 x XLR)
- Four stereo digital inputs: S/PDIF (1 x RCA, 1 x BNC), AES/EBU (1 x XLR), Optical Toslink
- Digital inputs are 24/192 capable
- Asynchronous 24/192 USB input board now included as standard
- 2U high chassis: 3.5" H x 17" W x 11.5"
- Six analog outputs: unbalanced (6 x RCA), balanced (6 x XLR), configurable output levels via internal jumpers
- Digital post DSP outputs: yes, SPDIF (BNC), all channels
- Digital pass through: yes, SPDIF (BNC)
- 24-bit 96kHz reference class Cirrus Logic ADC
- 32-bit 192kHz Burr Brown PCM1795 DACs
- 32-bit, floating-point, 240-MFLOPS processing with dual Analog Devices SHARC DSPs
- Audiophile op-amps with 300V/uSec slew-rate and high current drive
- Included remote control allows control of volume, profile, input and setting of preference EQ
- Microphone input has 48V phantom power
- 115V-230VAC switchable mains input, 100V-200V Japan only option
