ISOTEK EVO3 MOSAIC GENESIS
ISOTEK EVO3 MOSAIC GENESIS
The EVO3 Mosaic Genesis is a hybrid version of IsoTek's Ultimate series. Combining Genesis' extremely low THD sine wave generation engine and a lighter version of Super Titan's Direct-Coupled© conditioning network, it offers the perfect balance of power and performance.
Discontinued product.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
Eliminates common mode and differential mode network noise.
Medium Power: (three outlets provide a new generation of sine wave) exceeds 85dB of noise reduction, extending to zero Hz. High Current: (two outlets) offers extremely low impedance and 75dB RFI reduction (50 ohms standard ).
99,000A progressive protection circuit.
Internal wiring; Solid silver plated PCOCC with FEP virtually an air dielectric.
150W of totally clean power for front components (three outlets) combined.
With 4600W (230V @ 20A) for large power amplifiers and mono blocks (two outputs). Combining a single cell network sine wave generator cell from Genesis combined with a lightweight version of Mosaic Titan's exclusive Direct-Coupled© conditioning network.
Available in the UK, EU, US, Australia, Switzerland and South Africa.
FEATURES:
Three outlets with full sine wave generation with extremely low THD (0.7% typical).
Two dedicated high current, low impedance (16Amps) outlets suitable for power amplifiers.
Suitable for all audio or AV systems.
Compact and elegant half-shelf design.
Full system upgrade.
Supplied with IsoTek's award winning Premier Power Cord.
Specifications available for UK, EU, US, Australia and Switzerland.
DESIGN:
EVO3 Mosaic Genesis.

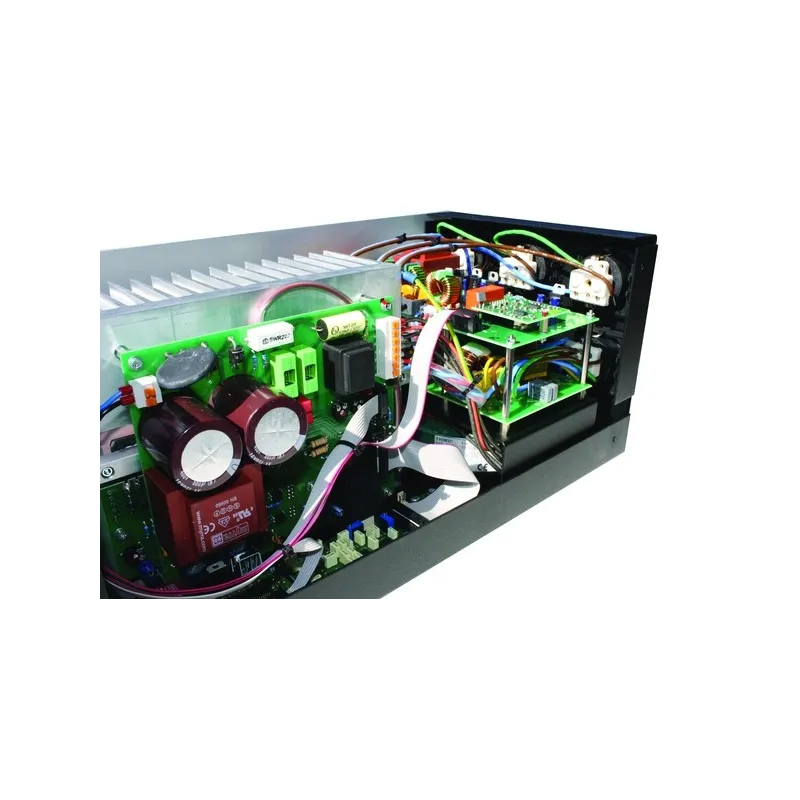

IsoTek's EVO3 Mosaic Genesis is a state-of-the-art hybrid power cleaning system, combining the complete mains sine wave generation system seen in our Ultimate Genesis series, combined with the high current, low current circuitry. Impedance Direct Coupled Design from the winner of the Titan room.
The EVO3 Mosaic Genesis offers audiovisual systems a huge leap forward in terms of performance. Expect to have a significant expansion of the soundstage, with incredible openness and transparency. Direct Coupled Design technology enables low impedance, high current delivery to two dedicated outlets. They are specifically designed for power amplifiers, active speakers or subwoofers.
EVO3 Mosaic Genesis is an easy to install full system upgrade.

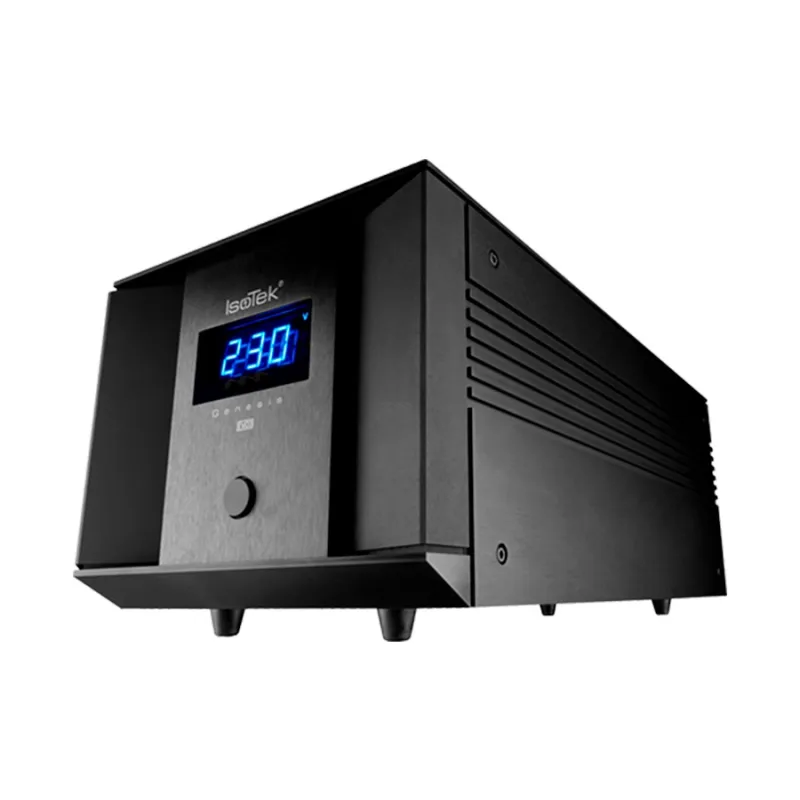

Machined aluminum chassis housing with fully functional display showing input voltage, THD and mains frequency and output voltage, THD and power consumption.
SPECIFICATION:
Number of outputs 5
Outputs 1-3 (sinusoidal wave generation) 150W
Outputs 4-5 (high current) 3680W Mains
input 16A IEC C20
Mains voltage from 100 to 240V depending on the model
Mains frequency 50 to 60Hz depending on the model
Dimensions 225 x 225 x 470mm (W x H x D)
Weight (in box) 20Kg
803000004
