Following the great success of LUMIN D2, we decided to investigate the possibility of making LUMIN transport technology similarly accessible. The result is a great specification in a compact package.

Capable of sampling up and down from 44.1kHz to DSD128 and supporting DSD256 playback, the LUMIN U1 MINI matches the U1 in almost every area except price.

The transport unit combines the best of LUMIN U1 and LUMIN D2

Identical processor supporting DSD256 and 384khz playback

Native Quad Clock System for Accurate Timing

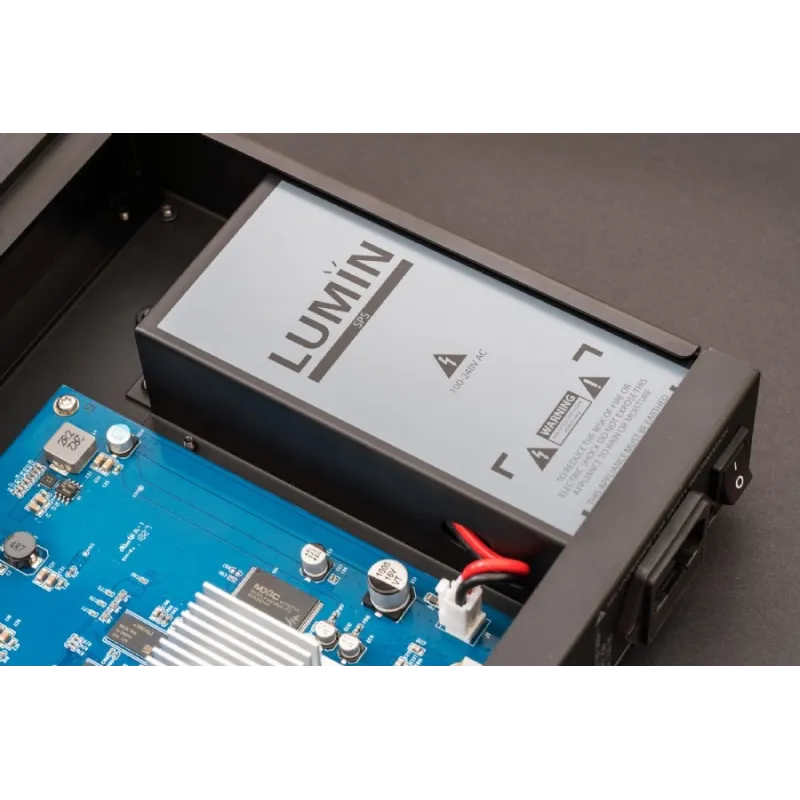

Low noise shielded switch mode power supply

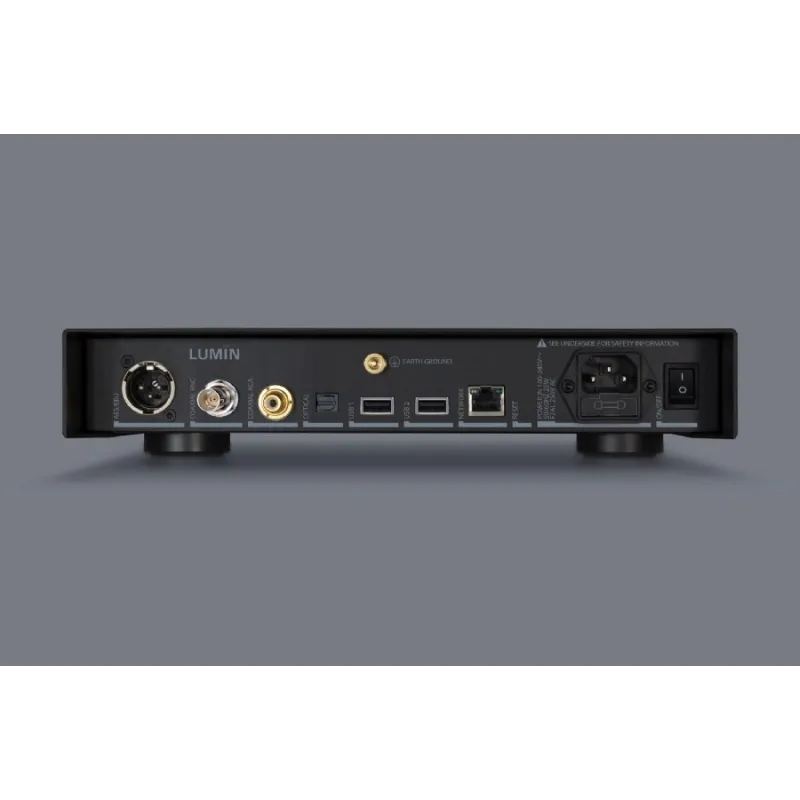

5 types of digital audio output including USB

MQA decoding

Oversampling to all supported formats up to DSD128

Supports DoP (DSD over PCM) for Optical, Coaxial RCA, Coaxial BNC and AES / EUB SPDIF

All the usual refinements of LUMIN

STREAMING UPnP AV protocol with audio streaming extension (OpenHome) Roon Ready Spotify Connect Apple AirPlay Pause-free playback Playlist on device

APP FEATURES Native support for TIDAL, MQA, Qobuz and TuneIn Radio. MQA tide icons for identifying high-resolution music High-resolution Qobuz icons for identifying high-resolution music Volume control High-resolution artwork Caching artwork Search Multiple tag handling Composer tag support Grouping albums in list of playback Automatic internet links to artists / album / songs. Save and restore playlists (including Tidal and Qobuz)

SUPPORTED FORMATS DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD) PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF Compressed audio (lossy): MP3, AAC (in M4A container) MQA

INPUTS Ethernet RJ45 1000 Base-T Gigabit network USB storage, flash drive, USB hard drive (FAT32, exFAT, NTFS and EXT2 / 3)

COMPATIBLE CONTROL DEVICES All Apple iPad models (v2 or later). IOS 8.0 or later is required. Full Retina display support. Android devices Android 4.0 (Ice Cream Sandwich) or later required

OTHERS Continuous Development Program - Firmware upgradeable for other features and enhancements

DSD SUPPORT Up to DSD256 11.2MHz, 1 bit

PCM COMPATIBILITY Up to 384 KHz, 16-32 bit, stereo

USB DSD256, 11.2MHz, 1 bit, Stereo PCM 44.1–384kHz, 16–24 bit, stereo

OPTICAL, RCA COAXIAL, BNC COAXIAL AND AES-EBU DSD (DoP, DSD over PCM) 2.8MHz, 1 bit PCM 44.1kHz - 192kHz, 16–24 bits

POWER SUPPLY Internal shielding 100-240V AC with automatic reach

FINISHES Raw brushed aluminum or Black brushed aluminum

DIMENSIONS (WIDTH X DEPTH X HEIGHT) 300 x 244 x 60 mm

PACKAGING DIMENSIONS (WIDTH X DEPTH X HEIGHT) 470 x 340 x 170 mm
