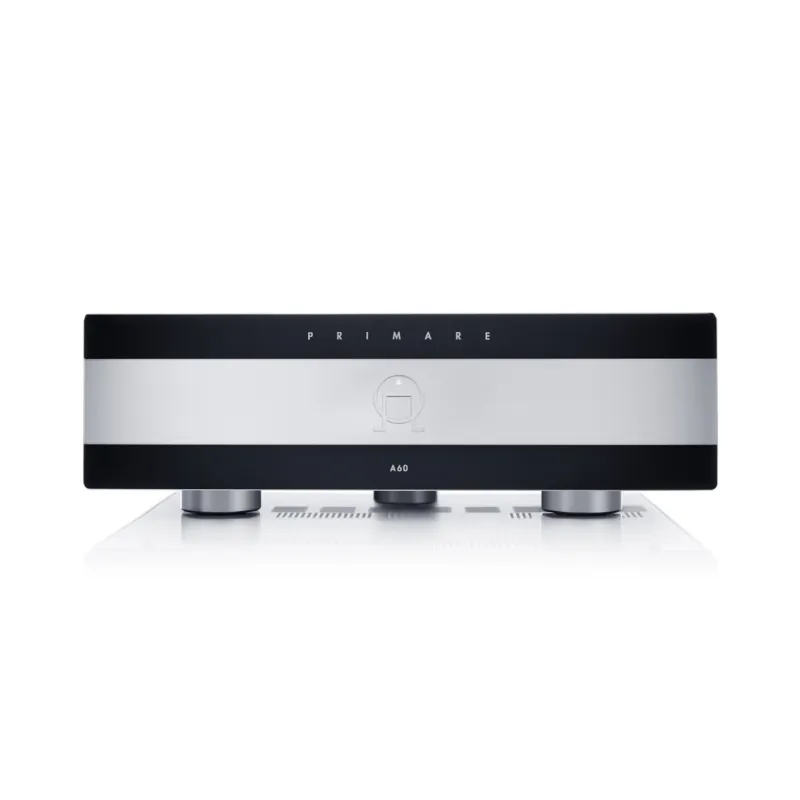

Primare A60
Primare A60. Stereo Power Amplifier.
Product not available. Discover all our PRIMARE products here.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
Description
Elegant and clear in its presentation, as a natural complement to the PRE60 preamplifier, the Primare A60 is a stereo power stage with a one hundred percent balanced architecture based on UFPD (Ultra Fast Power Device) Of Primare delivering 250 continuous watts per channel over 8 ohms. The interior of this superb electronics houses four separate UFPD amplifiers (two per channel) mounted in a fully balanced configuration. Each channel incorporates balanced and unbalanced inputs, as well as WBT Nextgen speaker connection terminals, trip signal jacks and an RS-232 control input. The Primare A60 is particularly notable for its powerful (2,600 VA peak) switchgear and highly regulated power supply, as well as a four-layer printed circuit board with custom-built heat sinks, 1% tolerance MELF resistors, Minimized signal, cable van den Hul SCS12 for connection to optimized case connection terminals and ground return lines. Also, the A60 has an elaborate electronic protection to guarantee its reliability in extreme conditions.
Technical characteristics
- Stereo power stage of very high performance.
- Designed and built in Sweden.
- Based on Primare exclusive amplification technology (UFPD).
- Equipped with a switched high dynamic capacity power supply (2,600 VA peak).
- Fully balanced architecture.
- Multilayer printed circuit board (4 layers) to minimize signal and ground paths.
- Equipped with balanced and unbalanced inputs.
- Conversion of unbalanced input signals into balanced ones.
- Output power of 2x250 continuous watts over 8 ohms or 2x400 continuous watts over 4 ohms.
- Signal-to-noise ratio of 105 dB.
- Gain of 26 dB in unbalanced mode and 20 dB in balanced mode.
- Dimensions: 430x142x385 mm (W x H x D).
