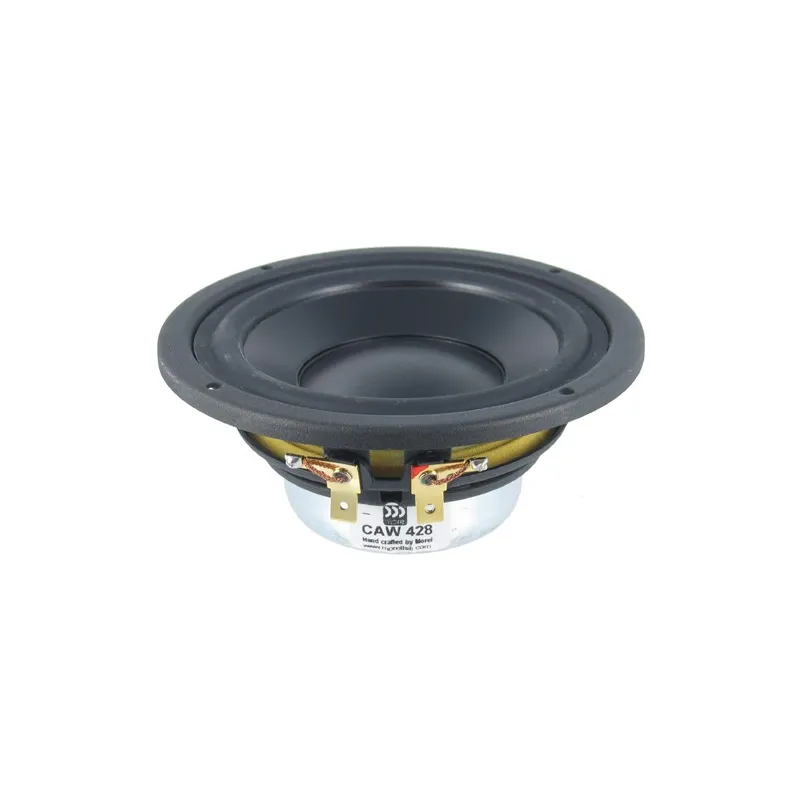

MOREL CAW428 Woofer
Morel CAW428 4" Woofer
Bankwire payment (3% DTO)
If you choose Bankwire payment you will get a 3% discount on your order.
Shipping Policy
Return policy
The Classic Advanced woofers are based on Morel's renowned MW series. This woofer features an aerodynamic Uniflow™ open chassis, large diameter spider, powerful neodymium magnets, and low resonance frequency and Qts point.
Highlights:
Large 2.1" Hexatech™ aluminum voice coil
Uniflow™ stamped steel chassis
Neodymium motor with vented pole
Shallow profile DPC cone
High excursion
Product details:
Morel Classic Advanced CAW 428 4" Woofer
The Classic Advanced woofers is based on Morel's renowned MW series. These products have high power handling due to the aerodynamic Uniflow™ open chassis and large diameter spider. This woofer uses a powerful neodymium magnet system, delivering higher magnetic flux and resulting in a low resonance frequency and Qts point.
Classic Advanced Series
- Uniflow steel chassis
- Neodymium magnet system
- 2.1" large Hexatech voice coil
- High power handling
- Shallow profile DPC cone
Frequency response 75Hz to 3000Hz
8 ohm Impedance
150W Power Handling (DIN)
88dB Sensitivity (1W/1M)
2.1" diameter voice coil, 2 layer
4mm X-max (peak)
Fs 74 Hz
Re 5.5 ohm
Le 0.32mH
Qms 2.33
Qes 0.46
Qts 0.38
BL 5.0
Cms 1.007 mm/N
Mms 4.55g
Rms 0.91 Kg/s
Vas 4.5 liters
Sd 57 cm2
Flange diameter: 118.5mm (4.66")
Cut out diameter: 94mm (3.7")
Depth: 51mm (2")
Suggested box sizes:
0.1 cubic foot vented box with 1" diameter vent by 3" long for and F3 of 95Hz.
0.1 cubic foot sealed box for an F3 of 150Hz.
