Two 1/4? head phone Jack out puts. With either output able to drive loading from 8? to 64? simultaneously.
Thyristor memory controlled inputs.
Hum rejection technology.
Quad regulated power supplies.
Head phone out put driven by single ended class A power amplifier stages, please note that this is somewhat better than just an A class stage.
Head phone output level controlled by volume control on the front panel.
Automatically selected Inputs controlled with a fifth isolated regulated power supply to further reduce the interference and noise floor.
Input loading impedance 47 K? for all inputs (so will take pretty much any input).

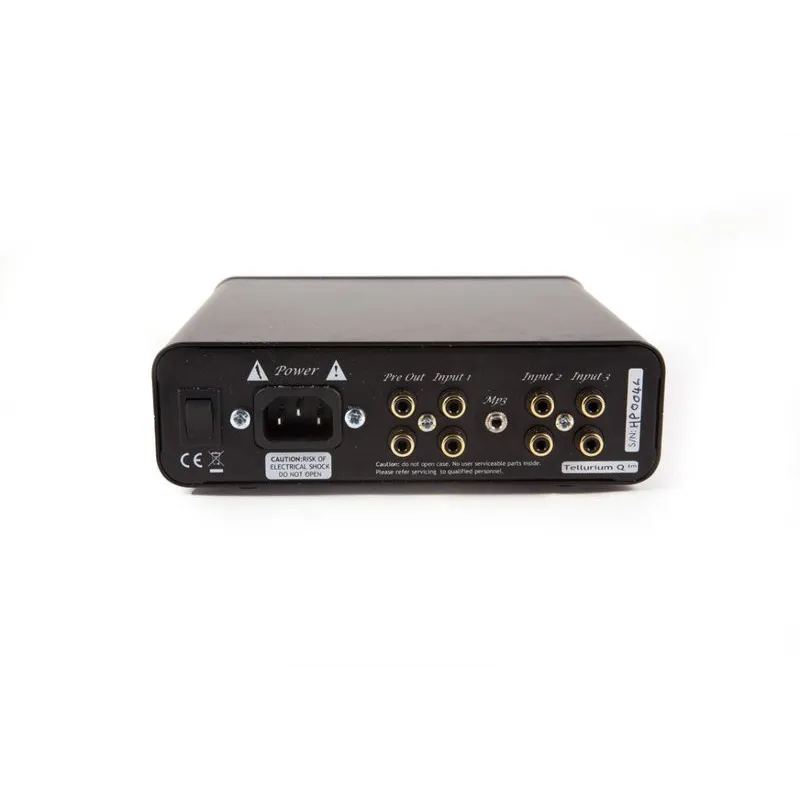

Three RCA phono stereo inputs and one MP3 input via 3.5mm socket.
HE Version L Version
32? 1.6WRMS 32? 140mWRMS
51? 1WRMS 51? 100mWRMS
64? 1.3WRMS 64? 200mWRMS
300? 500mWRMS 300? 500mWRMS
Out put maximum voltage swing; 30V peak-peak nominal
Maximum Gain: 19dB
Frequency bandwidth: 5Hz - 300Khz flat response
Frequency bandwidth: 2Hz - 300Khz -3dB
Phase angle change 0 degrees +/- 1 degree 85Hz to 300KHz
Power supply:
Power consumption approx 10W
30VA toroidal
Regulated high current PSU with ripple rejection technology
Mains fuse 3A
PSU fuse 2A
Physical specifications:
Size: 170mm X 185mm X 55mm
Weight: 1.95kg
