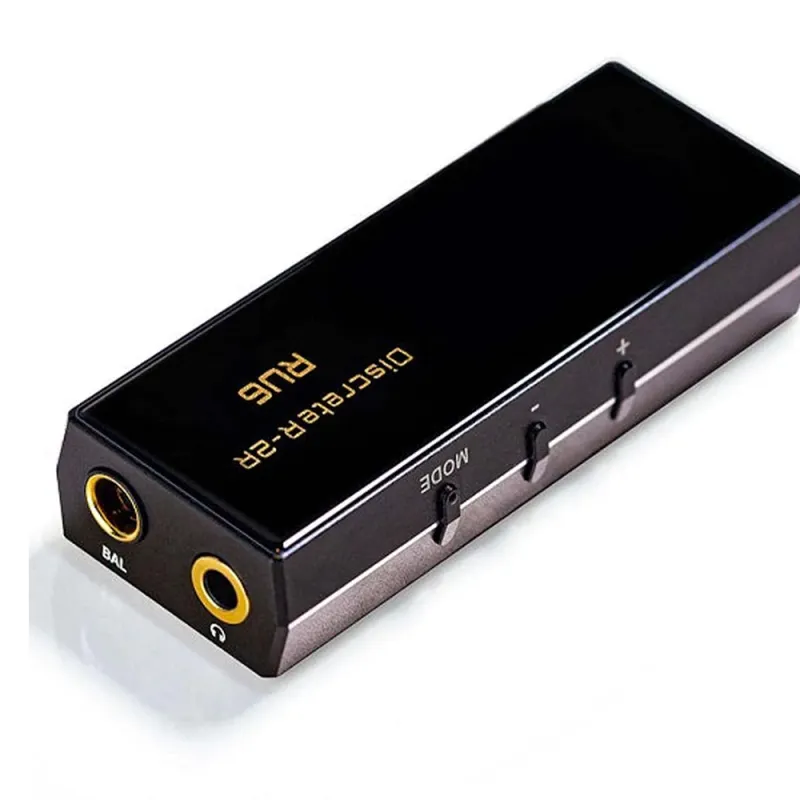

Very compact DAC + Headphone amplifier combo with R2R technology.
DAC: R2R 24-bit
Connections: USB-C, 3.5mm and 4.4mm output balanced
Decoding: PCM (44.1-384kHz), DSD (64/128/256)
Power: 138mW (3.5mm), 213mW (4.4mm) @ 32Ω
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Would you be interested in trading in a device when purchasing this item?
Innovation in Audio Decoding
The Cayin RU6 features advanced R2R conversion technology, the core of which consists of two paired resistors: "R" and "2R", the latter being twice the size of the former. To achieve 24-bit decoding, 48 resistors per channel (23xR and 25x2R) are required, totalling 96 pieces for stereo. This technology is renowned for providing a natural and realistic sound, ideal for the most demanding audiophiles.
Selectable NOS and OS Modes
The Cayin RU6 offers a choice of two modes of operation:
- Non-Oversampling (NOS): maintains the original sampling frequency without digital filters or post-processing, optimising the time domain and reducing phase distortion and jitter. This produces a natural, organic and coherent sound.
- Oversampling (OS): Increases the sampling frequency by interpolation before D/A conversion, improving resolution and reducing noise. This mode provides impressive detail and a clean presentation with a dark background.
Discrete Volume Control
Data integrity is crucial in R2R circuits. Conventional digital volume controls can deteriorate the sound. Therefore, Cayin has developed a proprietary volume control using a discrete array of resistors and relays that offer precision, low noise and low power consumption. The 99 volume levels are managed by 9 resistor segments, ensuring a transparent and natural sound signature.
Intuitive and Versatile Design

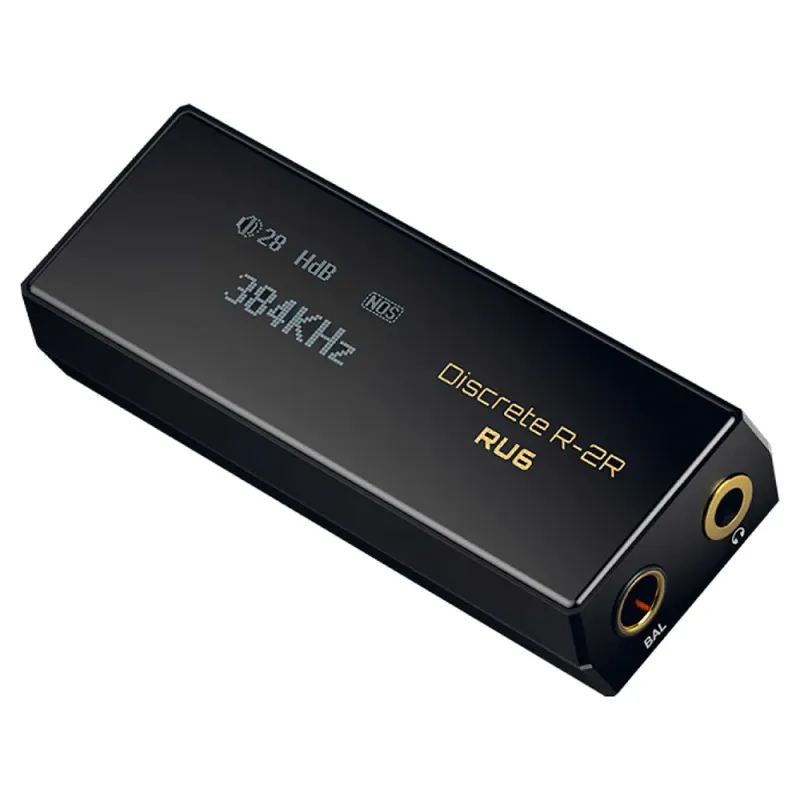

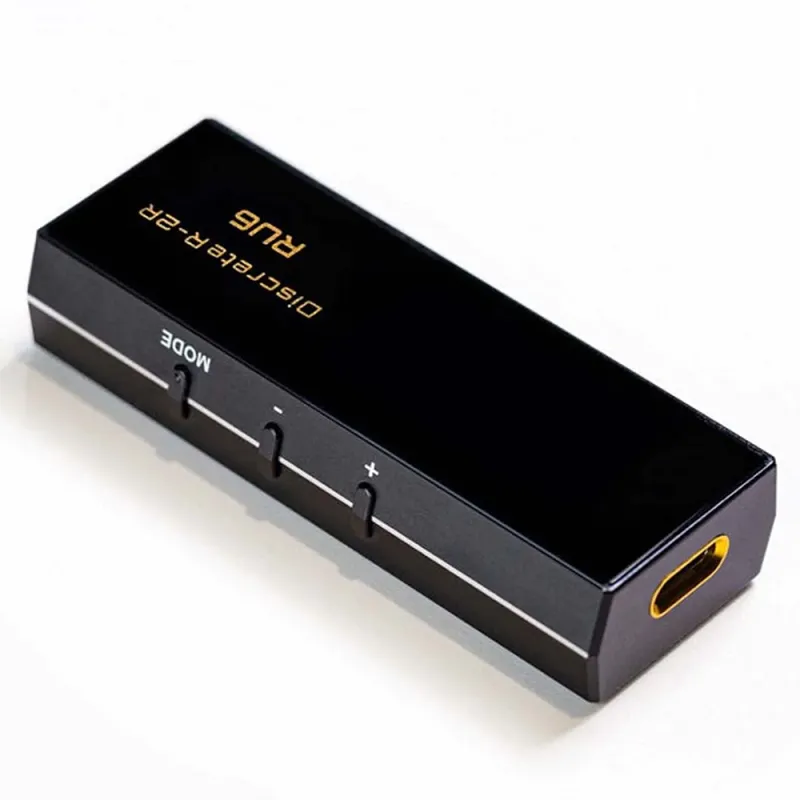

The Cayin RU6 features volume buttons that also allow menu navigation. Its 1" OLED display shows all settings clearly. Balanced 3.5mm and 4.4mm headphone outputs are available to suit any headphone collection.
Dual construction on two base plates

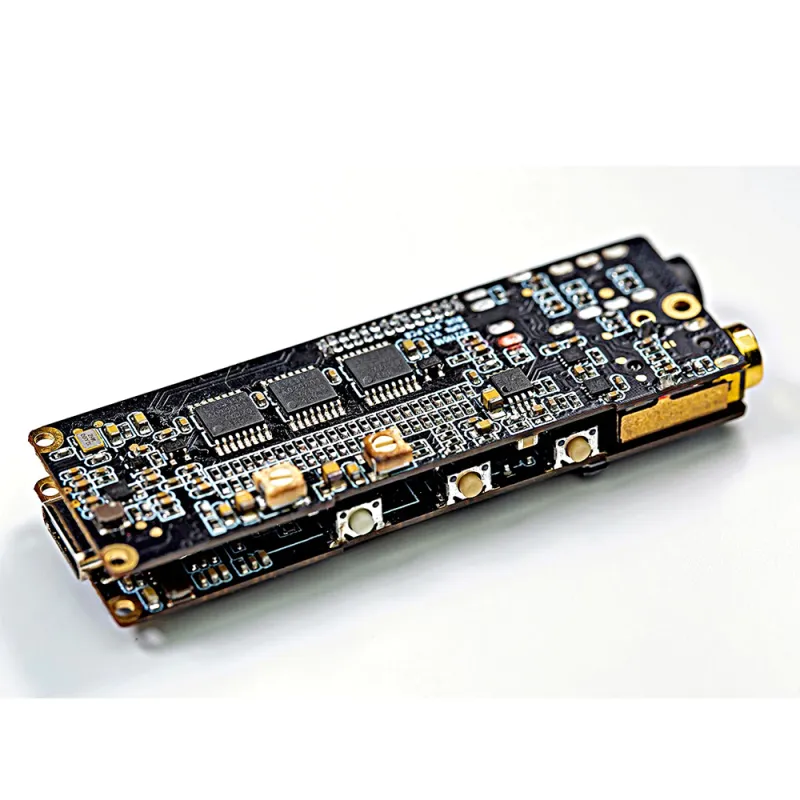

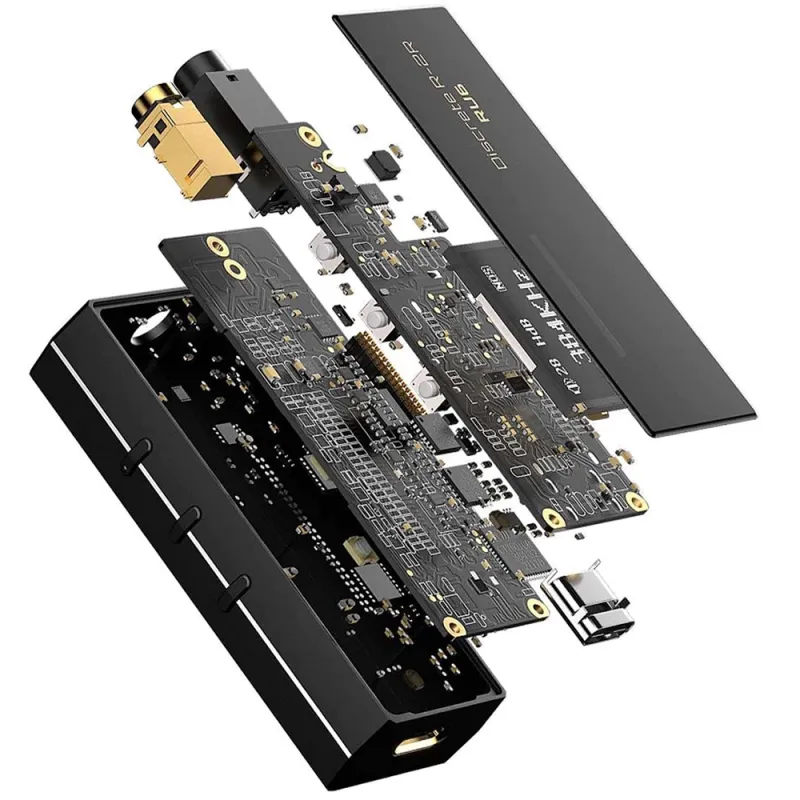

To minimise interference, the RU6's circuitry is divided into two base plates, separating the digital circuitry from the analogue circuitry. This protects the audio signal from possible interference caused by the reference clock or DSP, maintaining the integrity of the sound.
High Compatibility and Low Power Consumption
Cayin RU6's discrete R2R circuitry consumes less power than other DACs with integrated chipsets, minimising mobile battery drain. Its interference-shielded USB-C connector makes it compatible with a wide range of devices, including:
- iOS and iPadOS
- Mac computers
- Windows 7, 8 and 10
- Android devices
- Hi-Res Players
Resolution and High Fidelity
The Cayin RU6 supports PCM up to 384kHz and DSD up to DSD256. It allows selection between low and high gain, adapting to high sensitivity In Ear headphones.
Compact and Portable
With a weight of only 28g and a compact design, the Cayin RU6 is extremely portable, ideal for carrying in any pocket.
The Cayin RU6 combines advanced technology, intuitive design and exceptional sound quality, offering an unrivalled listening experience for lovers of high-fidelity audio.
DAC: 24-bit discrete R2R
USB: USB Type-C input
Digital Decoding:
PCM: 44.1 kHz - 384 kHz
DSD: DSD/64/128/256
Control: Volume +/-, mode
Chassis: CNC Aluminium
Headphone output: 3.5mm + 4.4mm balanced
Display: 0.96", 128x64 OLED
Accessories: USB-C to USB-C cable, USB-A to USB-C adapter
Dimensions: 65 x 25.4 x 13.7mm
Weight: 28g
Specifications headphone output
3.5mm
Power: 138mW at 32 Ohm
Frequency response: 20Hz to 20kHz
THD+N: 0.032% THD+N: 0.032% THD+N: 0.032
Dynamic Range: 109dB
SNR: 113dB
Output impedance: 0.5 Ohm
4.4mm
Power: 213mW at 32 Ohm
Frequency response: 20Hz to 20kHz
THD+N: 0.04
Dynamic Range: 110dB
SNR: 114dB
Output impedance: 1 Ohm
