DS AUDIO Grand Master Cartridge
DS AUDIO Grand Master. Optical Cartridge.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?

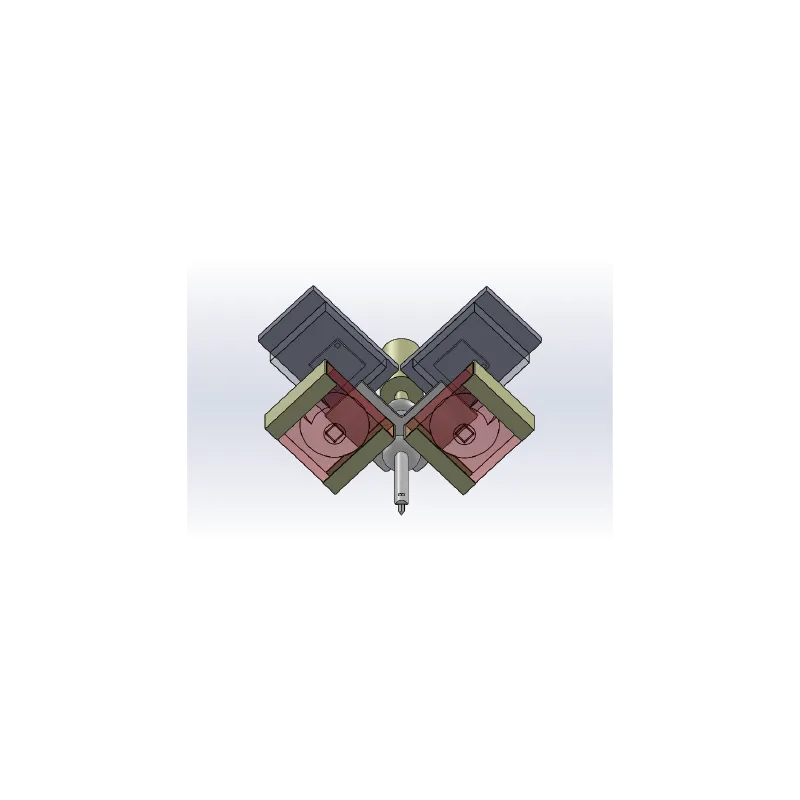

Independent LED and photo-detector arrangement for the left and right channels
The new Grand Master optical cartridge system has been optimized, by implementing an independent LED and photo-detector arrangement for the left and right channels. As a result the cartridge output voltage has greatly increased from 40mV to 70mV. The Grand Master cartridge offers a
greatly improved S/N ratio when compared to its stable mates, resulting in an even lower noise floor and far greater musical clarity.

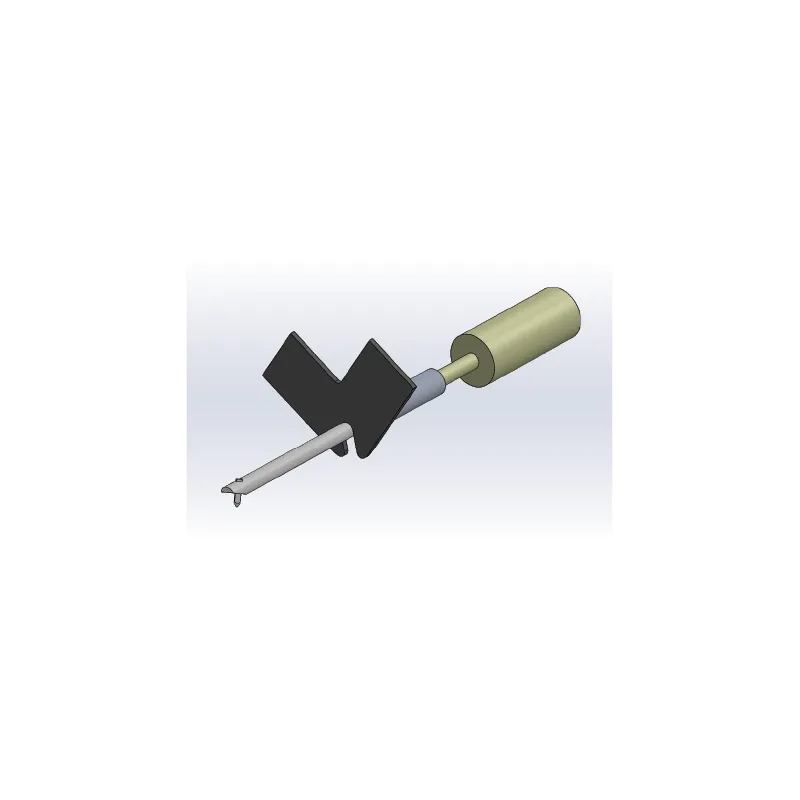

Weight of shading plate reduced by more than 50%
The implementation of independent left and right channel LED’ s allows for the positioning of the optical system to be optimized as well as necessitating the use of a new shading plate that has been significantly reduced in size compared to our earlier designs.
In addition to this reduction in size, the material used to produce the shading plate has changed from aluminium (as used in the second generation cartridges) to 99.9% pure beryllium.
Diamond cantilever
A first for DS Audio, the Grand Master cartridge features the combination of a diamond cantilever with a microridge stylus. The cartridge body structure has been designed in such a way as to promote maximum rigidity. In addition to these features, the Grand Master utilizes internal wiring 1.6 times thicker than used in the second generation cartridges in order to reduce impedance.
Grand Master Optical Cartridge
Signal output: Photo-electric Conversion
Channel separation: 27db more（1kHz）
Weight: 7.7g
Output signal level: 70mV more
Canti-lever: Diamond
Body material: Ultra duralumin
Cantilever holder material: Stainless
Needle pressure: 2.0g～2.2g(2.1g is recommended)
Stylus: Micro Ridge
