Desktop amplifier/DAC with 8000mW of power.
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Would you be interested in trading in a device when purchasing this item?

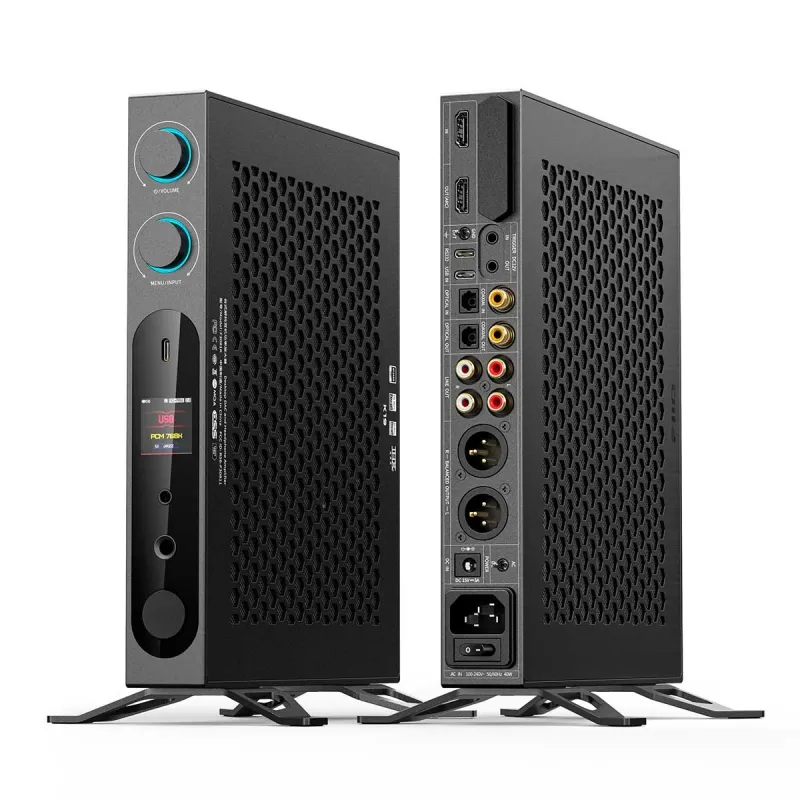

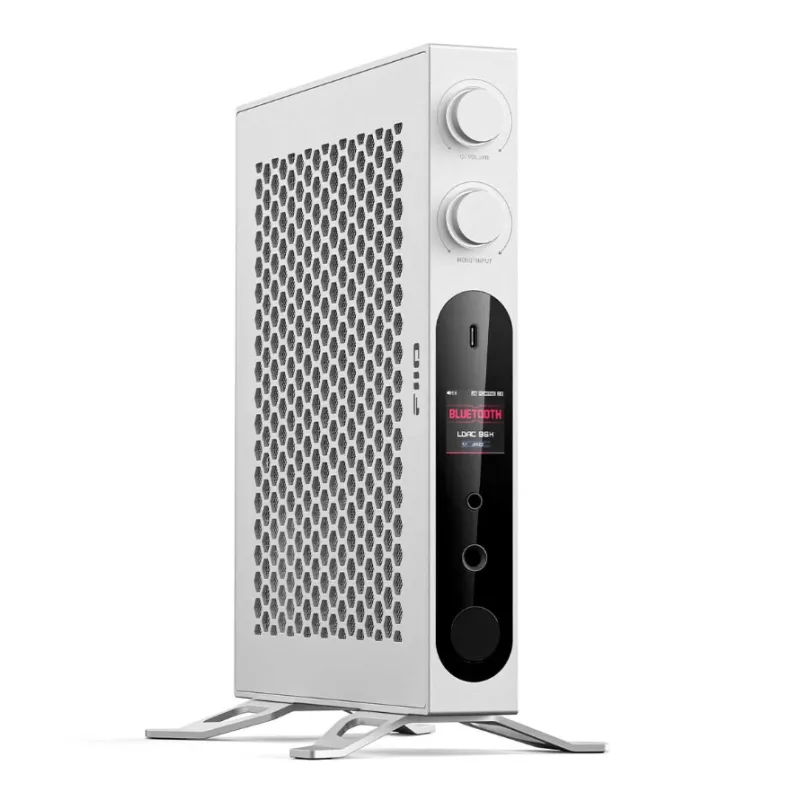

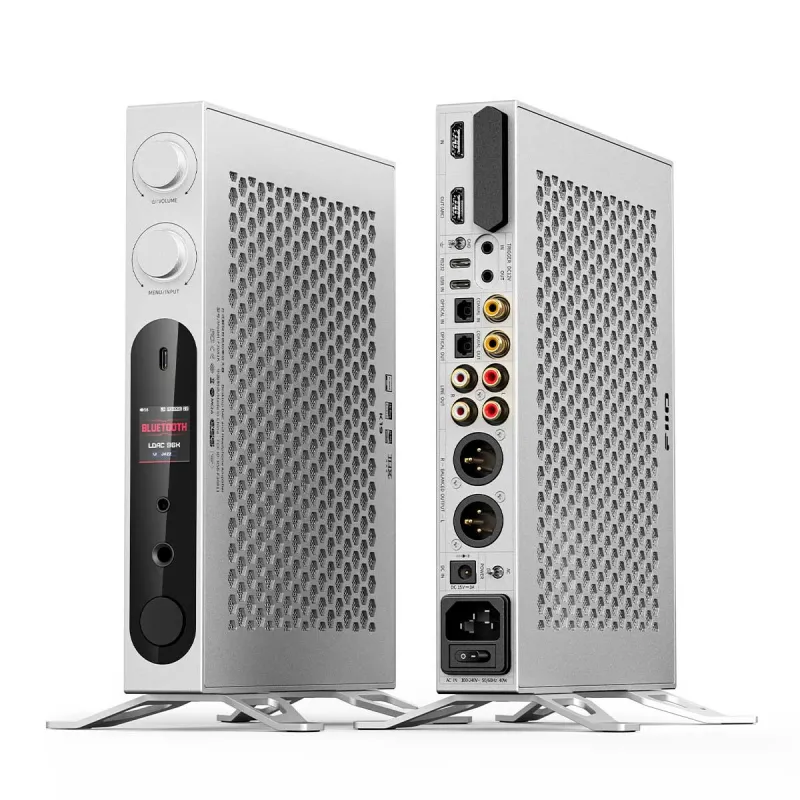

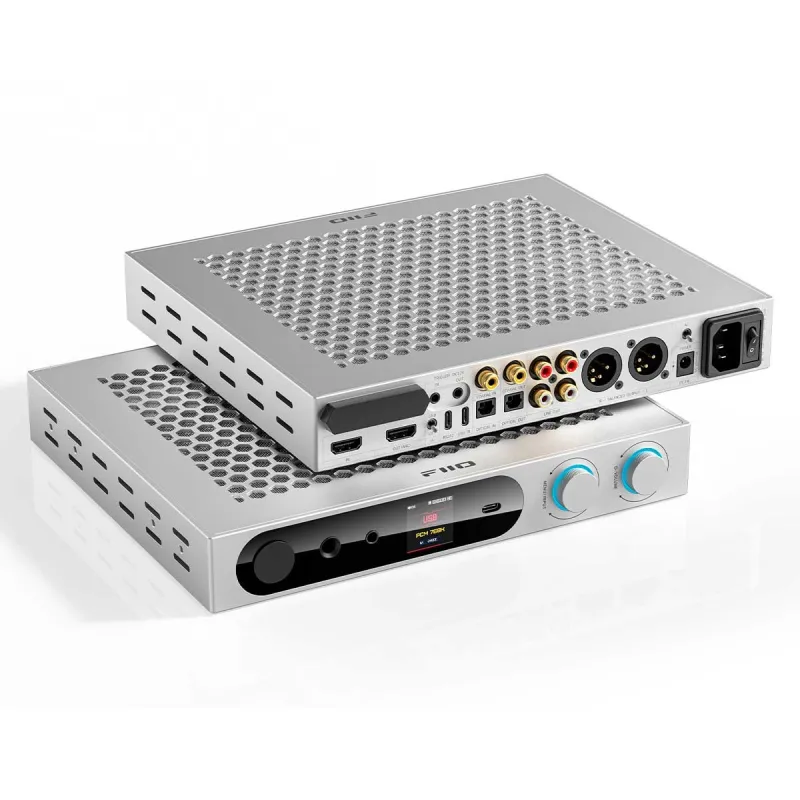

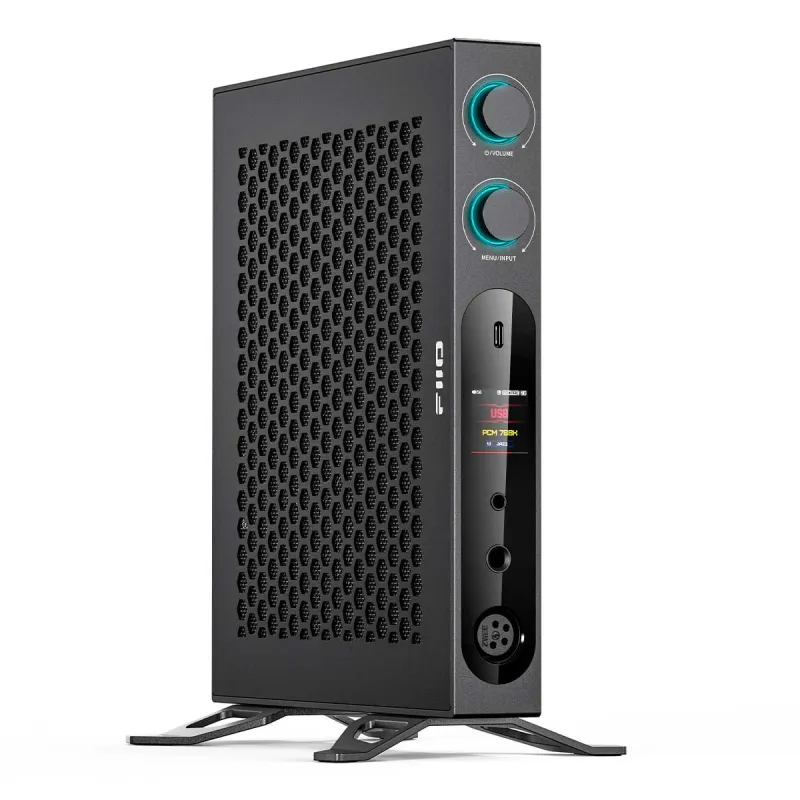

The FiiO K19 is FiiO's latest high-end desktop amplifier/DAC. For the first time in a device of its kind, it incorporates a display screen in an ultra-slim, impact-resistant unibody.
With an output power of 8000mW and an eight-channel ES9039SPRO x 2 DAC, it delivers superior sound definition and the ability to handle demanding headphones.
Add to this a high-precision, 31-band, lossless PEQ amplifier, along with meticulously developed components to transform your listening experience into something unparalleled. Let your senses be awakened with the new FiiO K19!
31-band PEQ
Thanks to its advanced technology and proprietary algorithms, the FiiO K19 can apply audio effects such as dynamic range compression or enhancement, as well as advanced limiting functions.
Its lossless, adjustable 31-band PEQ allows direct adjustments on PCM signals from 44.1k to 192k without the need for sample rate conversion.
You can customise settings and share them with other users thanks to the K19's ability to import and export settings.
ADI ADSP-21565 with SHARC+ core
For the first time in a FiiO device, an ADI ADSP-21565 DSP chip with SHARC+ core supported by an ultra-low phase noise femtosecond crystal oscillator is used.
This DSP chip operates at a frequency of 800MHz and performs double precision calculations, ensuring distortion-free and high quality signals, thus protecting the performance of the K19 and connected devices.
ESS ES9039SPRO x 2 flagship DACs
The FiiO K19 includes two ES9039SPRO eight-channel DAC chips with fourth-generation 32-bit HyperStream architecture, capable of delivering ultra-high dynamic range with very low noise.
These DAC chips ensure clear and detailed audio reproduction.
THD+N: -122dB
DNR: 132dB
THX AAA788+ headphone amplifier
The FiiO K19's newly designed headphone amplifier incorporates an eight-channel parallel THX AAA788+ architecture, supported by a high-voltage power supply.
This configuration provides enhanced transients and a powerful 8000mW + 8000mW output at 32 Ohms.
Impact-resistant unibody construction
The FiiO K19 is constructed from die-cast aluminium alloy for a sleek and rugged design. It has been meticulously polished to achieve unsurpassed quality.
In addition to being slim, the aluminium alloy body is impact resistant.
Straight to HiFi: HDMI IN and ARC
The K19 supports decoding via HDMI 2.0 and HDMI output with ARC audio return capability, offering new ways to enjoy immersive audio-visual content.
HDMI OUT: supports sampling frequencies up to 192kHz/24 bits
HDMI ARC: supports 44.1/48kHz sampling rates
Separate, shielded circuit boards
The K19's circuitry is isolated on separate boards to reduce interference and improve signal purity. In addition, metal shields shield the DSP, DAC and THX headphone amplifier boards.
Dual internal and external heat dissipation
The FiiO K19 is designed to handle consistently high power without overheating thanks to its dual heat dissipation system.
Six modes of operation
The K19 offers multiple operating and connection modes, including USB decoding, optical input, HDMI, Bluetooth with aptX HD, coaxial and HDMI ARC, as well as various output options.
Total versatility for a superior experience
Thanks to its adaptable design, the K19 saves space and improves heat dissipation. Its 1.3-inch display provides detailed information and makes it easy to manage settings via an included remote control.
Name: K19
DAC: ES9039SPRO x 2
USB: XMOS XU316
Bluetooth decoding: QCC5125
THX788+ 8-Way Amplifier
Colour: Black / Silver
Dimensions: 250 x 225 x 36.7mm
Weight: 1800g
Volume control: Knob / Remote control
MQA: Global decoding
Gain: Ultra high, super high, high, medium, low, high, medium, low
Bluetooth 5.1 Reception: SBC/AAC/aptX/aptX LL/aptX HD/atpX adaptive/LDAC
Display: 240 x 240, 1.30" display
Sampling rate:
Optical input decoding: up to 96 kHz/24-bit support
Coaxial output: Support up to 192 kHz/24-bit; DSD64
Optical fibre output: up to 192 kHz/24-bit support
HDMI decoding: up to 192 kHz/24-bit support
HDMI output: support up to 192 kHz/24 bits
HDMI ARC decoding: Support up to 44.1/48 kHz
Matching impedance:
PO: 8~150Ω
BAL: 8~350Ω
DC power input interface: Φ6.2 mm DC connector
Digital optical input interface: fibre optic socket
Digital optical output interface: fibre optic socket
Balanced output interface: 4.4 mm standard jack x 1 + XLR4 balanced jack x 1
Balanced line output interface: XLR3 balanced socket
HDMI interface: HDMI input interface x 1; HDMI (ARC) output interface x 1
USB interface: USB Type C (data transmission interface x 2 + RS232 DSP adjustment interface x 1)
Digital coaxial input interface: RCA connector
Digital coaxial output interface: RCA connector
Headphone output interface: Standard 6.35mm jack
Single-ended line output interface: RCA socket x 2
Trigger interface: Standard 3.5mm headphone jack (TRIGGER IN interface x 1+TRIGGER OUT interface x 1)
Power Supply:Supports AC 100-240V~50/60Hz; DC 15V/≥3A (choose one of the two)
Specifications 6.35mm output, USB DAC/coaxial decoding/optical decoding, ultra high gain mode
Output power 1: L+R≥4000mW+4000mW（16Ω,THD+N<1%)
Output power 2: L+R≥2300mW+2300mW（32Ω,THD+N<1%)
Output power 3: L+R≥270mW+270mW（300Ω,THD+N<1%)
Noise floor: <3.5 μV (A-weighted)
Frequency response: 20Hz~20kHz: Attenuation <0.2dB /
20Hz~80kHz: Attenuation<3dB
Output impedance: <0.6Ω (32Ω)
Crosstalk: ≥75dB (1kHz@32Ω)
THD+N: <0.0003% (1 kHz/-6 dB at 32 Ω)
SNR: >127dB (A-weighted)
Maximum output voltage: >22.5 Vp-p
Specifications 6.35mm output, USB DAC/coaxial decoding/optical decoding, super high gain mode
Output power 1: L+R≥2400mW+2400mW（16Ω,THD+N<1%)
Output power 2: L+R≥1250mW+1250mW（32Ω,THD+N<1%)
Output power 3: L+R≥135mW+135mW（300Ω,THD+N<1%)
Noise floor: <3.5 μV (A-weighted)
Frequency response: 20Hz~20kHz: Attenuation <0.2dB /
20Hz~80kHz: Attenuation<3dB
Output impedance: <0.6Ω (32Ω)
Crosstalk: ≥75dB (1kHz@32Ω)
THD+N: <0.0003% (1 kHz/-6 dB at 32 Ω)
SNR: >127dB (A-weighted)
Maximum output voltage: >17.5 Vp-p
Specifications RCA output, USB DAC/coaxial decoding/optical decoding
THD+N: <0.00032% (1 kHz/-0.8 dB at 10 kΩ)
Crosstalk: ≥110dB (1kHz@10kΩ)
Frequency Response: 20Hz~20kHz: Attenuation <0.1dB / 20Hz~80kHz: Attenuation <3dB
SNR: ≥122dB
Noise floor: <1.6μV
Line Output Level: 2.5 Vrms
Specifications XLR4/4.4mm output, USB DAC/coaxial decoding/optical decoding, ultra-high gain mode
Output power 1: L+R≥4000mW+4000mW（16Ω,THD+N<1%)
Output power 2: L+R≥8000mW+8000mW（32Ω,THD+N<1%)
Output power 3: L+R≥1100mW+1100mW（300Ω,THD+N<1%)
Noise floor: <6 μV (A-weighted)
Frequency response: 20Hz~20kHz: Attenuation <0.2dB /
20Hz~80kHz: Attenuation<3dB
Output impedance: <0.6Ω (32Ω)
Crosstalk: ≥120dB (1kHz@32Ω)
THD+N: <0.0002% (1 kHz/-6 dB at 32 Ω)
SNR: >128dB (A-weighted)
Maximum output voltage: >45 Vp-p
Specifications XLR4/4.4mm output, USB DAC/coaxial decoding/optical decoding, super high gain mode
Output power 1: L+R≥4000mW+4000mW（16Ω，THD+N＜1%)
Output power 2: L+R≥5000mW+5000mW（32Ω，THD+N＜1%)
Output power 3: L+R≥550mW+550mW（300Ω ，THD+N＜1%)
Noise floor: <6 μV (A-weighted)
Frequency response: 20Hz~20kHz: Attenuation <0.2dB /
20Hz~80kHz: Attenuation<3dB
Output impedance: <0.6Ω (32Ω)
Crosstalk: ≥120dB (1kHz@32Ω)
THD+N: <0.0003% (1 kHz/-6 dB at 32 Ω)
SNR: >126dB (A-weighted)
Maximum output voltage: ＞35.8Vp-p
Balanced line output specifications (XLR3, USB DAC/coaxial decoding/optical decoding)
THD+N: <0.00025%(1kHz/0dB@10kΩ)
SNR: ≥128dB (A-weighted)
Crosstalk: ≥120 dB (1 kHz to 10 kΩ)
Minimum noise: <2.0 μV (A-weighted)
Frequency response: 20Hz ~ 20kHz / 20Hz ~ 80kHz
Attenuation <0.1 dB
Attenuation <3 dB
Line Output Level: 4.8 Vrms (1 kHz @ 10 kΩ)
