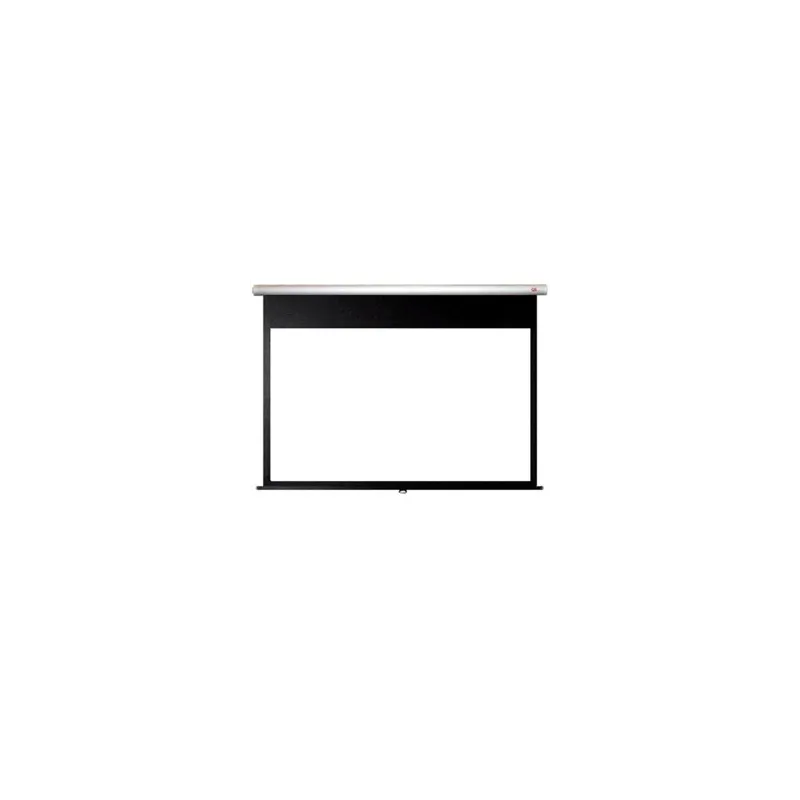

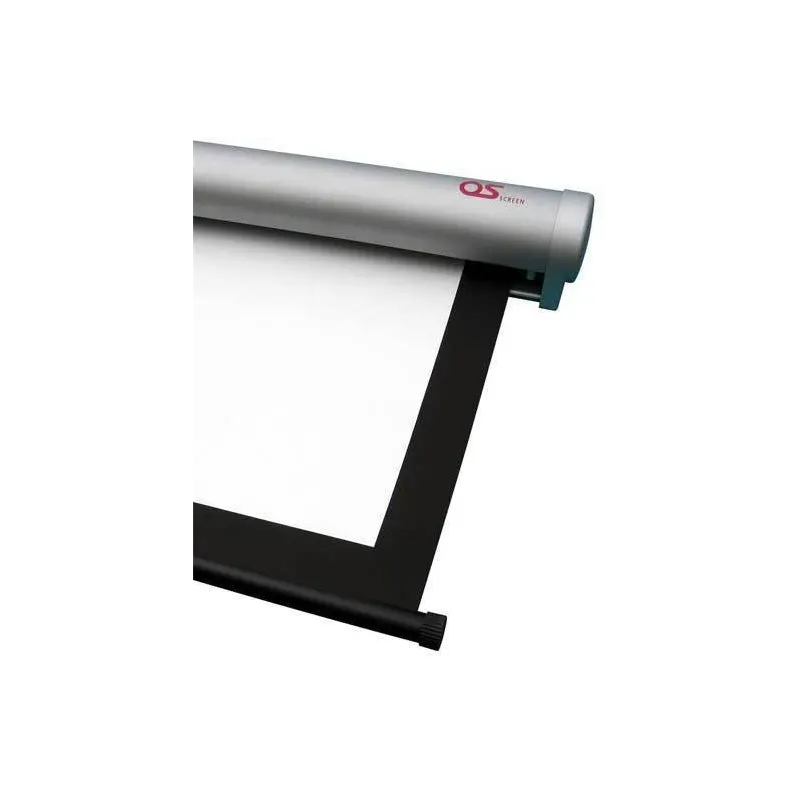

A1-H / A1-L (Manual Type)
INSTRUCTION MANUAL
INSTALLATION MANUAL
A1-H For drawings
A1-080H-064 / A1-090H-051
A1-100H-039 / A1-110H-027
A1-120H-014
A1-H Series HDTV Format (16:9 / 1.78:1 Aspect Ratio)
| Model | Image Size W×H(mm) | Screen Width A(mm) | Case Width B(mm) | Case Hight C(mm) |
|---|---|---|---|---|
| A1-080H-064 | 1771×996 | 2000 | 110 | 138 |
| A1-090H-051 | 1992×1121 | 2225 | 110 | 138 |
| A1-100H-039 | 2214×1245 | 2445 | 110 | 138 |
| A1-110H-027 | 2435×1370 | 2665 | 110 | 138 |
| A1-120H-014 | 2657×1494 | 2890 | 110 | 138 |
| Model | Upper Black Border U(mm) | Screen Hight T(mm) | Mounting Distance G(mm) | Screen Weight (kg) |
| A1-080H-064 | 640 | 1845 | 1350 or above | 9.0 |
| A1-090H-051 | 510 | 1845 | 1350 or above | 9.9 |
| A1-100H-039 | 390 | 1845 | 1800 or above | 10.8 |
| A1-110H-027 | 270 | 1845 | 1800 or above | 11.7 |
| A1-120H-014 | 140 | 1845 | 2250 or above | 12.6 |
| Model | White Mat (WG103) | Pure Mat (WF202) | Ultra Beads Premium White (BU201) | Ultra Beads Premium Gray (BU202) |
| A1-080H-064 | ○ | ○ | - | - |
| A1-090H-051 | ○ | ○ | - | - |
| A1-100H-039 | ○ | ○ | - | - |
| A1-110H-027 | ○ | ○ | - | - |
| A1-120H-014 | ○ | ○ | - | - |
