Super slim in-wall speaker (only 50 mm mounting).
Drivers: 3 C-CAM® 3" woofers + C-CAM® 19 mm tweeter (gold-plated)
100 Hz – 30 kHz (85 Hz open) | 86 dB | 40 W RMS | Max SPL 103.8 dB
Installation with Tri-Grip™ system + CB6 pre-construction bracket included
Dimensions: Ø 250 mm | Ø 211 mm cutout | depth 50 mm | weight 2.88 kg
Round magnetic grille included, square/premium optional and paintable
Ideal for tight spaces (thin walls, limited ceilings, multiroom, home cinema)
Price per unit.
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Would you be interested in trading in a device when purchasing this item?

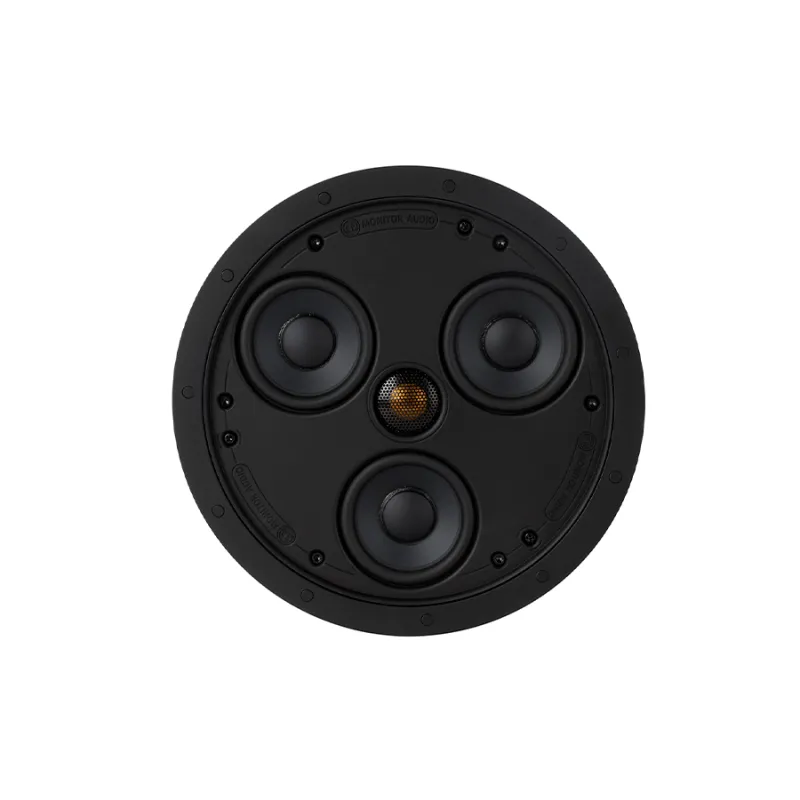

The Monitor Audio CSS230 is an ultra-slim in-ceiling speaker designed for installations in tight spaces, with just 50 mm mounting depth. Ideal for fitting into 2” stud walls or areas restricted by pipes and cabling, it combines a hybrid back-box design (sealed or open) with a radial driver array to ensure precise sound reproduction and flexible installation options.
Equipped with three 75 mm (3”) C-CAM® mid/bass drivers and a 19 mm (3/4”) gold-dome C-CAM® tweeter, the CSS230 delivers bass performance comparable to a traditional 6.5” speaker while maintaining a discreet, ultra-slim profile. Thanks to its Controlled Performance (CP) design, you can choose sealed-box operation for improved isolation and definition, or open-back configuration for extended bass response.
It comes with a magnetic round grille (paintable), and is also compatible with optional square or premium grille designs. Installation is quick, robust, and secure with the Tri-Grip™ fixing system.
Ultra-slim in-ceiling speaker with only 5 cm mounting depth.
Controlled Performance (CP) hybrid design: sealed back-box for greater isolation, open configuration for extended bass.
Radial array: 3 x 75 mm (3”) C-CAM® drivers + 1 x 19 mm (3/4”) gold-dome C-CAM® tweeter.
Full-range sound with bass comparable to 6.5” speakers.
Frequency response: 100 Hz – 30 kHz (85 Hz – 30 kHz with open back).
Sensitivity: 86 dB.
Maximum SPL: 103.8 dBA.
Power handling: 40 W RMS (62 W with 100 Hz/12 dB crossover).
Tri-Grip™ fixing system for fast and secure installation.
Supplied with CB6 pre-construction bracket (purple).
Compatible with optional square or premium grilles, both paintable to match interiors.
Type: 2-way super slim in-ceiling speaker
Drivers:
3 x 75 mm (3”) C-CAM® mid/bass drivers
1 x 19 mm (3/4”) gold-dome C-CAM® tweeter (fixed)
Frequency response (-6 dB): 100 Hz – 30 kHz (85 Hz – 30 kHz open back)
Sensitivity (1 W @ 1 m): 86 dB
Maximum SPL: 103.8 dBA
Nominal impedance: 8 Ω
Minimum impedance: 4.4 Ω @ 190 Hz
Power handling (RMS): 40 W (62 W with 100 Hz/12 dB crossover)
Recommended amplification: 10 – 60 W
Recommended crossover: 100 Hz (min. 12 dB/octave, optimum 24 dB/octave)
Connections: Gold-plated push terminals (up to 4 mm²)
Overall dimensions (with grille): Ø 250 mm
Cutout diameter: Ø 211 mm
Total depth (with grille): 54 mm
Mounting depth: 50 mm
Optional grille: Square (249 x 249 mm)
Fixing system: Tri-Grip™ 3-position clamps
Materials: UL94-rated ABS, painted steel grille, RoHS2 compliant
Weight: 2.88 kg
Pre-construction bracket: CB6 (included)
