MONITOR AUDIO W1M-E

2-way in-wall speaker (Creator Series Level 1).

Drivers: 5" C-CAM® woofer + 1" C-CAM® tweeter with UD I waveguide

40 Hz – 30 kHz | 84 dB | 50 W RMS | Max SPL 110 dB

Installation: Quik-Link™ connector + Tri-Grip™ II mounting

Dimensions: 560 × 231 × 90 mm | Cutout 527 × 198 mm | Mounting 85 mm

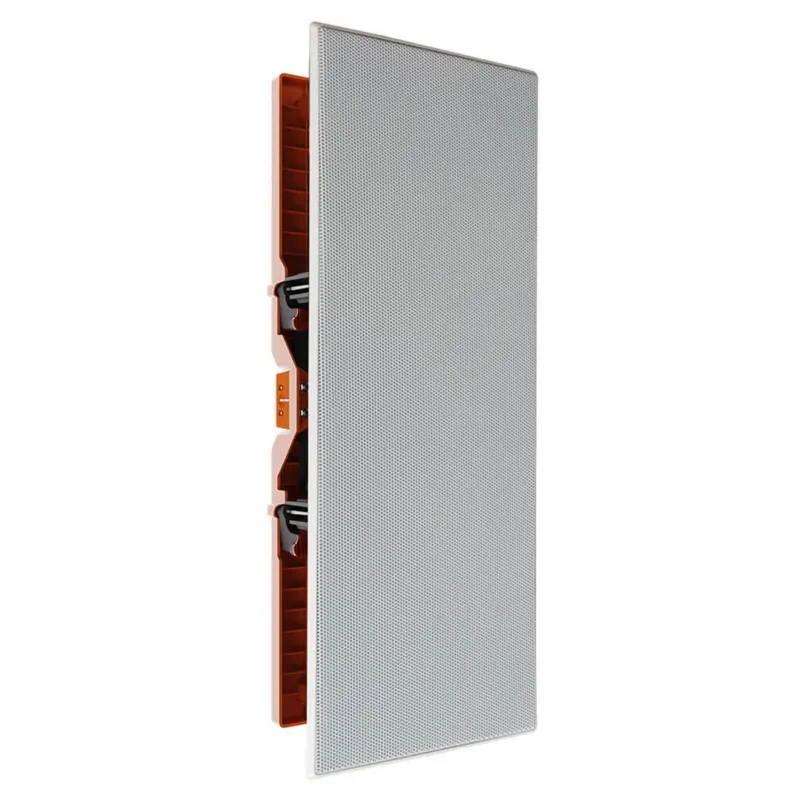

Paintable magnetic grille, WM-B bracket, WM BOX back box.

Price per unit.

Colour
€262.50 €350.00 -25%

Have you seen it cheaper? Contact us >

Time left

Distributor stock (48-72h)

bloques info producto

Bank Transfer (3% OFF)

If you make the payment via bank transfer, you will receive an extra 3% discount on your order.

Individual Consultancy

Contact us without any obligation.

957460112
info@audiohum.com

Need to upgrade your equipment?

Would you be interested in trading in a device when purchasing this item?

Renovar equipo




Monitor Audio W1M-E: 2-Way In-Wall Speaker

The Monitor Audio W1M-E is a medium-sized in-wall speaker from the Creator Series Level 1, designed for cost-effective installations where simplicity, ease of setup, and genuine Hi-Fi performance are required.

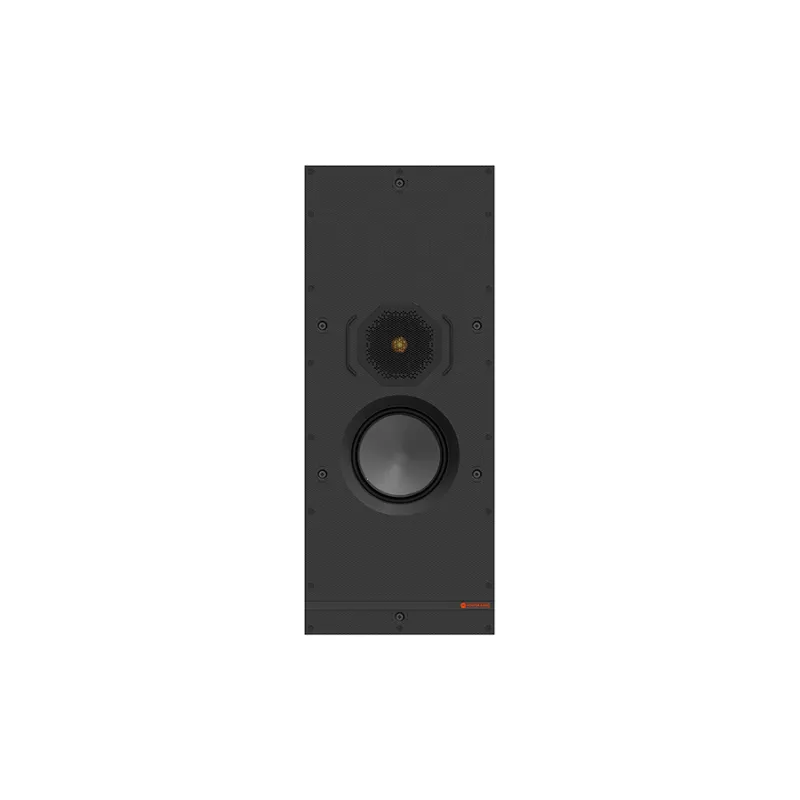

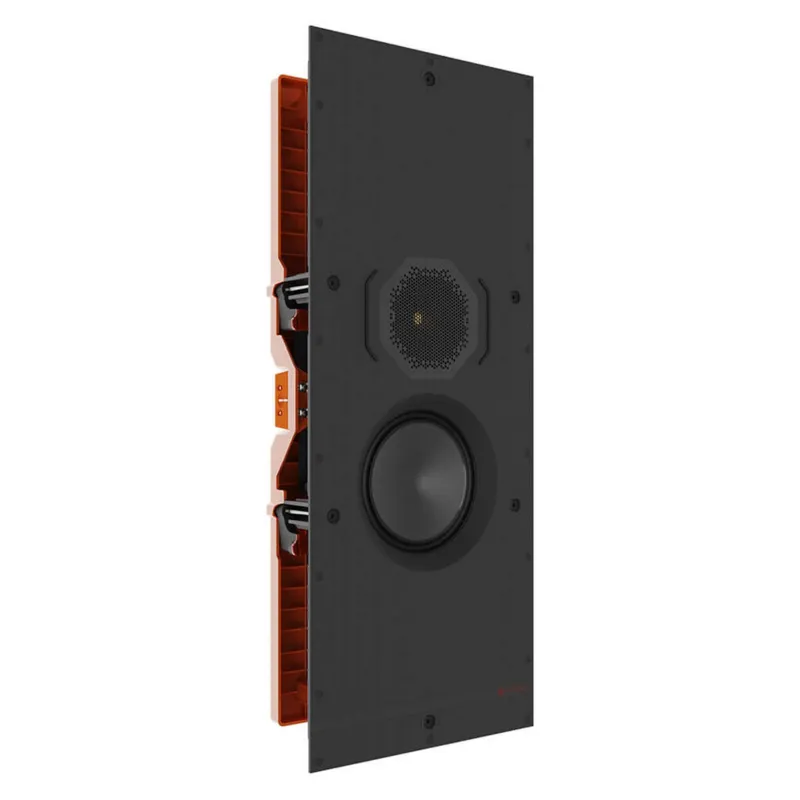

Its 2-way configuration combines a 127 mm (5") C-CAM® woofer with a 25 mm (1") C-CAM® tweeter featuring a UD Waveguide I, delivering solid bass, clear mids, and natural highs. The result is a clean, wide, and well-balanced sound that reflects Monitor Audio’s audiophile heritage.

Installation is fast and secure thanks to the innovative Quik-Link™ connector, which allows simple and reliable wiring, and the Tri-Grip™ II fixing system, ensuring a robust and stable fit.

Key Features

2-way in-wall speaker.

25 mm (1") C-CAM® tweeter with UD Waveguide I for natural high-frequency reproduction.

127 mm (5") C-CAM® woofer for solid bass and clear midrange.

Quik-Link™ patented connector for fast, secure installation.

Tri-Grip™ II fixing system for robust and easy fit.

Optimized design for clarity, wide dispersion, and natural sound.

Compatible with pre-construction bracket and optional back box.

Ideal for discreet, high-quality home cinema or multiroom music projects.

Technical Specifications

Speaker Type: 2-way in-wall

Drivers:

1 x 25 mm (1") C-CAM® tweeter

1 x 127 mm (5") C-CAM® woofer

Frequency Response (-6 dB): 40 Hz – 30 kHz

Crossover Frequency: 2,500 Hz

Sensitivity (2.83 V @ 1 m): 84 dB

Maximum SPL: 110 dB

Nominal Impedance: 8 ohms

Minimum Impedance: 6.5 ohms @ 200 Hz / 6.2 ohms @ 20 kHz

Power Handling (RMS): 50 W

Recommended Amplifier Power: 25 – 100 W

Dimensions & Mounting

External Dimensions (with grille): 560 x 231 x 90 mm

Cutout Dimensions: 527 x 198 mm

Mounting Depth: 85 mm

Fixing System: Tri-Grip™ II (3 positions)

Connections: Gold-plated Quik-Link™ terminals

Materials: Mineral-filled ABS (UL94-V0, RoHS) with painted steel grille

Pre-Construction Bracket: WM-B

Optional Back Box: WM BOX

Weight: 2.6 kg
