MONITOR AUDIO W2M-CP
3-way in-wall speaker (Level 2, CP).
Sealed back box (Controlled Performance) with sound insulation
Transducers:
1 x 25 mm C-CAM tweeter with UD II Waveguide
1 x 76 mm RST II midwoofer
2 x 127 mm RST II woofers
Frequency response: 60 Hz – 35 kHz
Sensitivity: 87 dB | Max. SPL: 118 dB
Impedance: 6 Ω (min. 4.3 Ω)
Power: 100 W RMS | Recommended amplification: 40–150 W
Dimensions: 560 x 231 x 102 mm | Cutout: 527 x 199 mm | Depth: 97 mm
Quik-Link connection and Tri-Grip II mounting

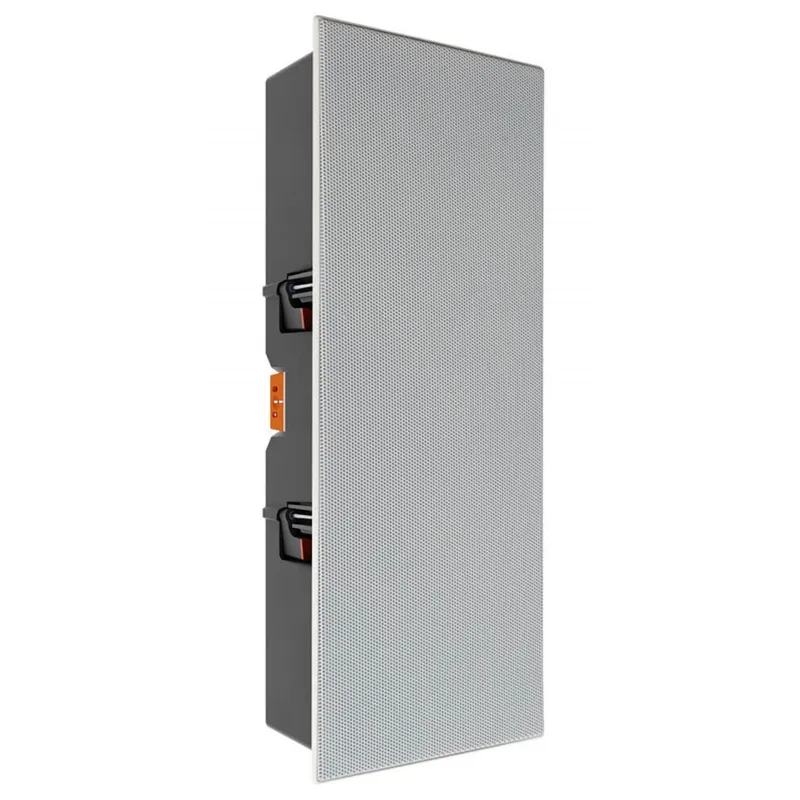

Discreet, paintable magnetic grille
Price per unit.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
Monitor Audio W2M-CP: 3-Way In-Wall Speaker: Level 2 (Controlled Performance)

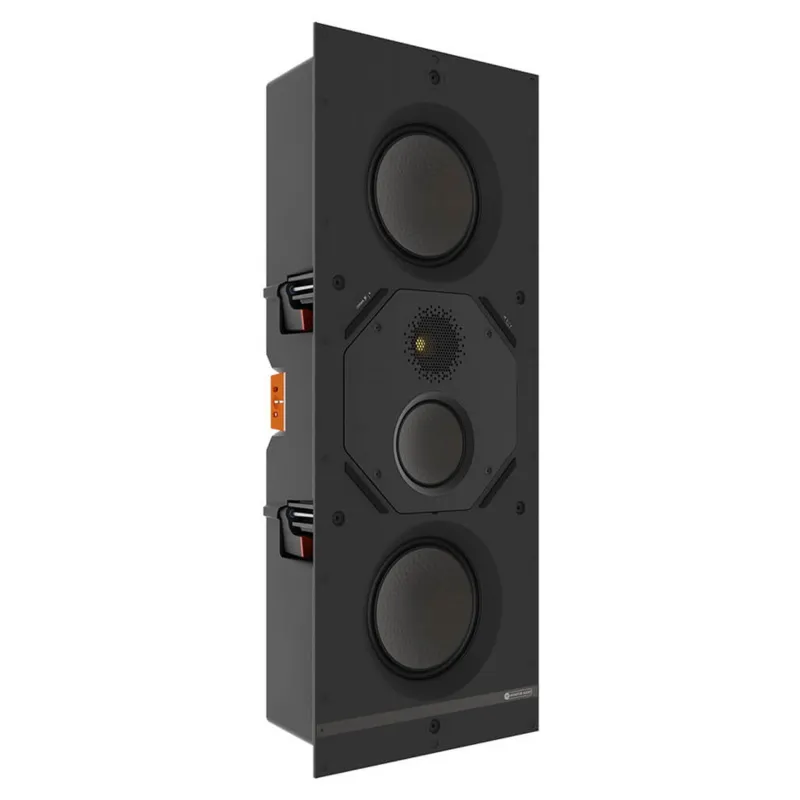

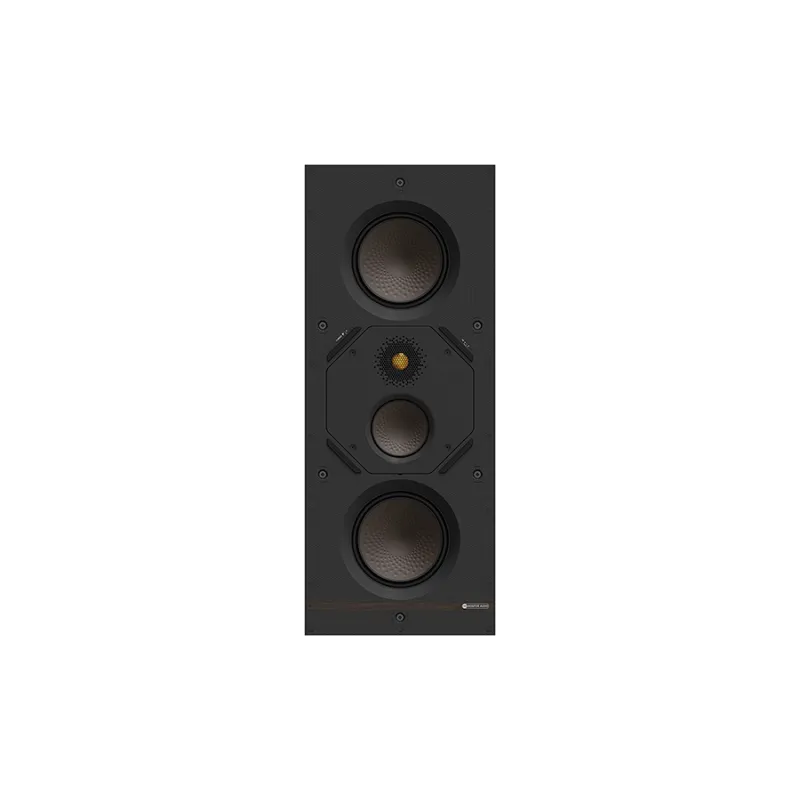

The Monitor Audio W2M-CP is a medium-sized in-wall speaker that combines discreet design with crystal-clear, natural sound. Part of Level 2 of the Creator Series, it delivers a true Hi-Fi experience through a three-way system featuring two RST II woofers, an RST II midrange driver, and a C-CAM tweeter with UD II Waveguide, ensuring exceptional clarity and wide sound dispersion.
As a Controlled Performance (CP) model, it features a sealed back box that guarantees consistent performance regardless of wall construction. This optimized enclosure enhances bass and midrange response while reducing rear sound leakage by up to 30 dB, providing superior acoustic isolation between rooms.
Installation is quick and secure thanks to the patented Quik-Link connector, which simplifies wiring, and the Tri-Grip II mounting system, ensuring firm and reliable fitting.
Key Features
3-way in-wall speaker with sealed back box (Controlled Performance).
25 mm (1") C-CAM tweeter with UD II Waveguide.
76 mm (3") RST II midrange driver for clear, defined mids.
2 x 127 mm (5") RST II woofers for powerful, precise bass.
Sealed enclosure ensures consistent performance and superior sound isolation.
Patented Quik-Link connector for faster installation.
Tri-Grip II fixing system for stable, durable mounting.
Discreet design with paintable magnetic grille for seamless integration.
Technical Specifications
Type: 3-way in-wall speaker
Drivers:
1 x 25 mm (1") C-CAM Gold Dome tweeter
1 x 76 mm (3") RST II midrange driver
2 x 127 mm (5") RST II woofers
Frequency response (-6 dB): 60 Hz – 35 kHz
Crossover frequency: 550 Hz / 3,000 Hz
Sensitivity (2.83V/1m): 87 dB
Maximum SPL: 118 dB
Nominal impedance: 6 Ω
Minimum impedance: 4.8 Ω @ 1 kHz | 4.3 Ω @ 15 kHz
Power handling (RMS): 100 W
Recommended amplifier power: 40 – 150 W
Overall dimensions (with grille): 560 x 231 x 102 mm (H x W x D)
Cut-out dimensions: 527 x 199 mm
Mounting depth: 97 mm
Switches: Tweeter -/0/+ | Corner ON/OFF
Fixing system: Tri-Grip II
Connections: Gold-plated Quik-Link terminals

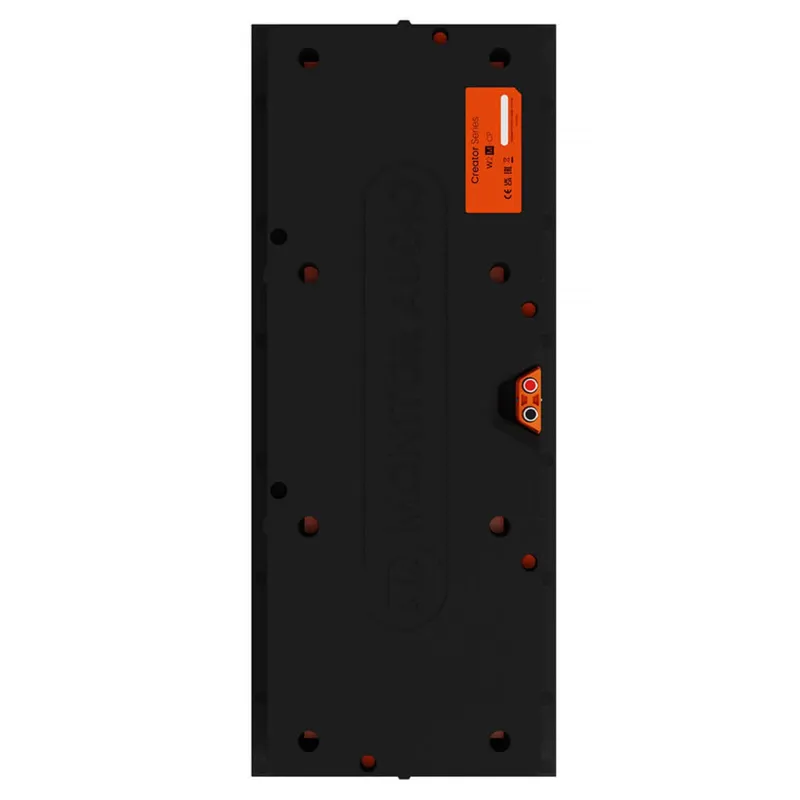

Construction: Sealed ABS back box with mineral fill | Painted steel grille
Pre-construction bracket: WM-B
Optional back box: WM BOX
