ROGUE AUDIO RP-5

Rogue Audio RP-5. Tube preamplifier.

The RP-5 is our first preamplifier based on the groundbreaking new RP-X platform. Silky smooth yet extraordinarily high tech, the RP-5 sets a new benchmark in performance and functionality. Utilizing four 12AU7 tubes in a mu-follower configuration, the computer optimized circuitry boasts outstanding sonics as well as industry leading specs.

The RP-5 offers much more than just sonic excellence with numerous features to further enhance your listening experience. The onboard MM/MC phono has user adjustable gain settings ranging from 40 to 60 dB. A wide variety of loading options means your favorite cartridge can be configured to sound its very best. A tube based headphone circuit offers smooth and detailed sound for your late night personal audio sessions. Other features include home theater inputs, a processor loop and mono button. The ten button remote allows you to conveniently access volume, balance, selector, mute, mono and on/off from your listening position.

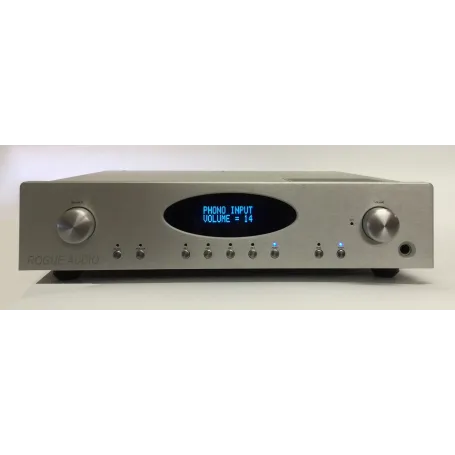

The elegant appearance of the RP-5 is enhanced by an easy to read VFD display that provides volume, balance and source information in large easy to read characters.

General Features:

- Four tube mu-follower design

- Ten function remote control

- VFD display

- Home Theater bypass/Unity gain inputs

- Five pairs of inputs (Line1-4, Phono, or Line 1-5)

- Two pairs of variable outputs

- One pair of fixed outputs

- Processor loop

- Heavy duty gold plated RCA inputs

- Machined aluminum faceplate and knobs

- Tube based headphone amp

- 40 - 60 dB gain phono stage

- RIAA equalization within 0.1 DB

- User adjustable cartridge loading

- Massive power supply

- Slow start turn on sequencing

- Auto mute at turn on/turn off

- Detachable IEC power cord

- Fully tested, burned in and auditioned

- 3 year limited warranty (6 months on tubes)

- Proudly hand crafted in the USA!

Specifications:

- Tube complement: 4 x 12AU7/ECC82 tubes

- Frequency response: 1Hz – 100KHz +/- 1 dB

- THD: <0.1%

- Gain line stage: 10 dB

- Rated output: 1V

- Maximum output: 27V RMS

- Output impedance: 500 Ohms

- Gain phono stage: 40dB, 50dB, 55dB, 60dB

- RIAA accuracy: +/- 0.1 dB

- Dimensions: 18.5 ”W X 4.5 ”H X 14.5” D

- Weight 30 pounds

- Shipping weight 45 pounds

- Power requirements 115/230V – 50/50Hz
