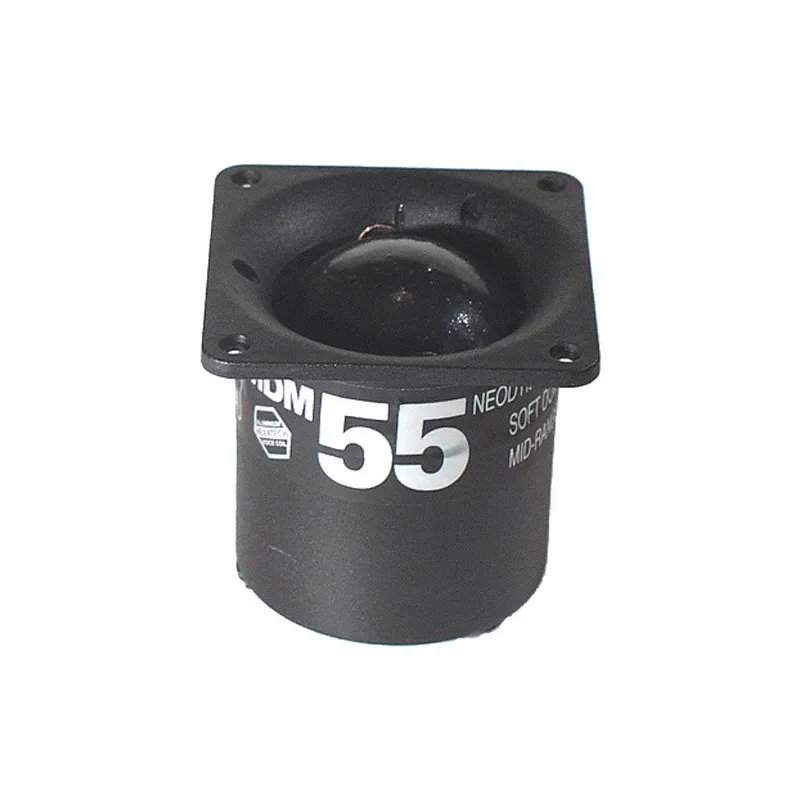

MOREL MDM 55 soft dome midrange
Morel MDM 55 55mm soft dome midrange
Bankwire payment (3% DTO)
If you choose Bankwire payment you will get a 3% discount on your order.
Shipping Policy
Return policy
No compromise 2" treated soft dome midrange designed for high end multiple speaker systems. It employs a powerful neodymium magnet (22 times stronger than ferrite!) enabling this unit to be both compact and ultra-lightweight.
Highlights:
Soft dome design for natural response with wide dispersion
Neodymium magnet makes this midrange very compact
Large 2-1/8" Hexatech voice coil allows high power handling
Smooth response makes transition to woofer and tweeter very predictable
Product details:
Morel Classic MDM 55 2" Mid-Dome
No compromise 2" treated soft dome midrange designed for high end multiple speaker systems. It employs a powerful neodymium magnet (22 times stronger than ferrite!) enabling this unit to be both compact and ultra-lightweight. It features Hexatech aluminum voice coil technology, rear chamber loading, gold plated terminals, and is fully shielded to allow A/V use. This fine midrange retains the natural "warmth" and "body" of sounds.
Morel 2" textile dome midrange
- Neodymium magnet
- Rear chamber
- Magnetically shielded
- Gold-plated terminals
- Hexatech voice coil
- Flange 87mm sq (3.43?)
- Cut-out 75mm Ø (2.95?)
- Depth 82mm (3.23?)
Specifications
Znom 8 ohm
Re 6.3 ohm
Le@1kHz 0.19 mH
fs 380 Hz
Qms -
Qes -
Qts -
Mms 2.2 g
Cms - mm/N
Sd 28.0 cm2
BL 5.2 N/A
Vas - ltrs
Xmax 1.0 mm peak
VC Ø 54 mm
Sensitivity
1W / 1m 90.5 dB
Nom. Power DIN 200 W
Net weight 0.3 kg
Bank transfer (3% OFF)
If you pay by bank transfer you will get an extra 3% discount on your order.
For personalized advice contact us without any commitment.
