Accuton C51-6-286: mid-range driver with 2’ ceramic dome
Optimised design with suspended motor and dual neodymium magnets
Recommended for applications above 800 Hz
Frequency range: 1000 Hz to 19 kHz
Resonant frequency: 565 Hz
Sensitivity: 93 dB (2.83 V/m)
Mounting diameter: 86 mm, Depth: 84 mm
bloques info producto

Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.

Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?

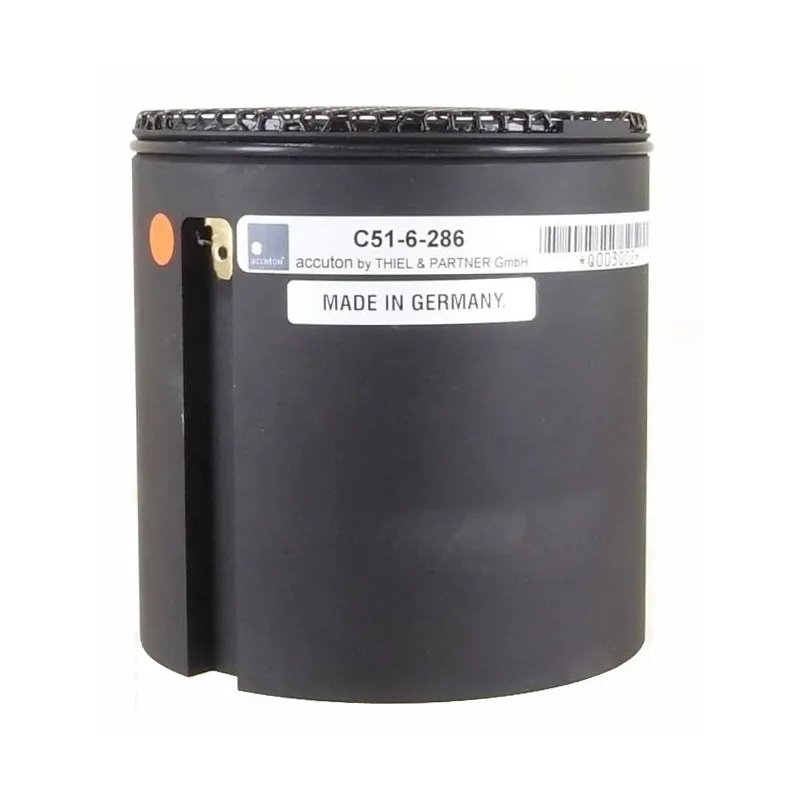

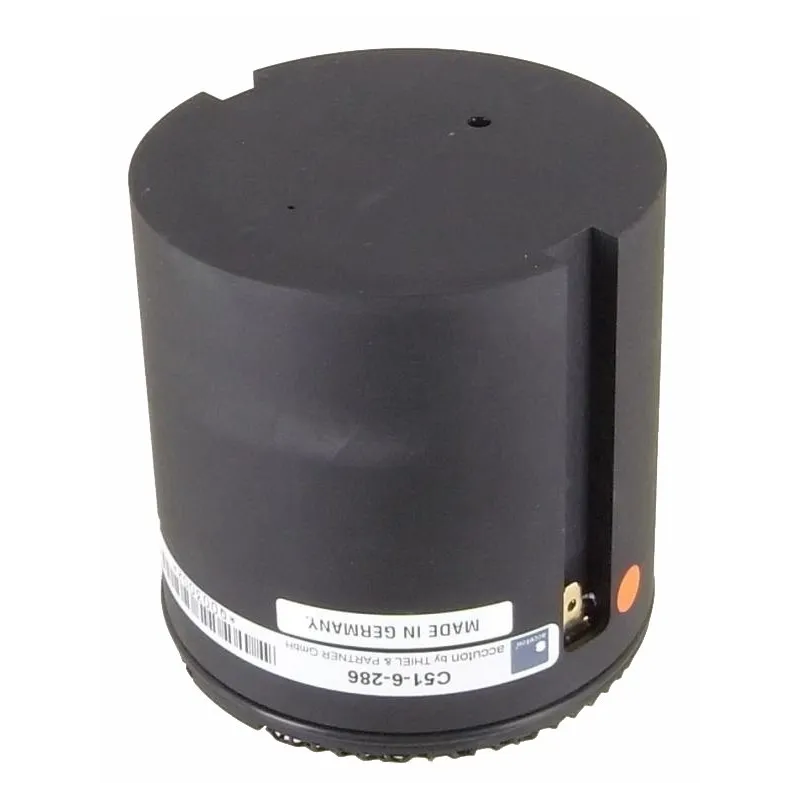

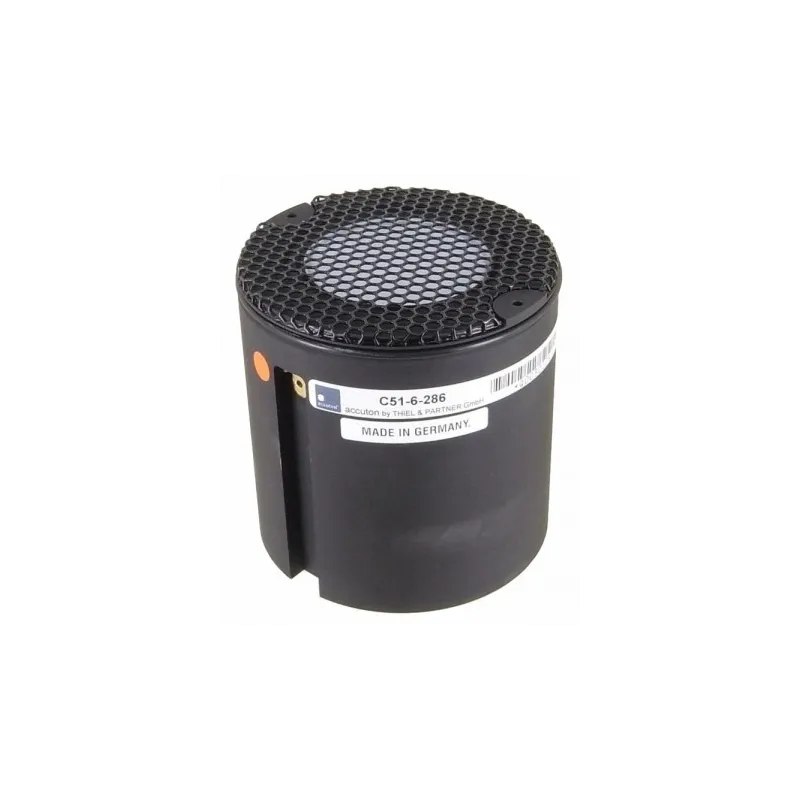

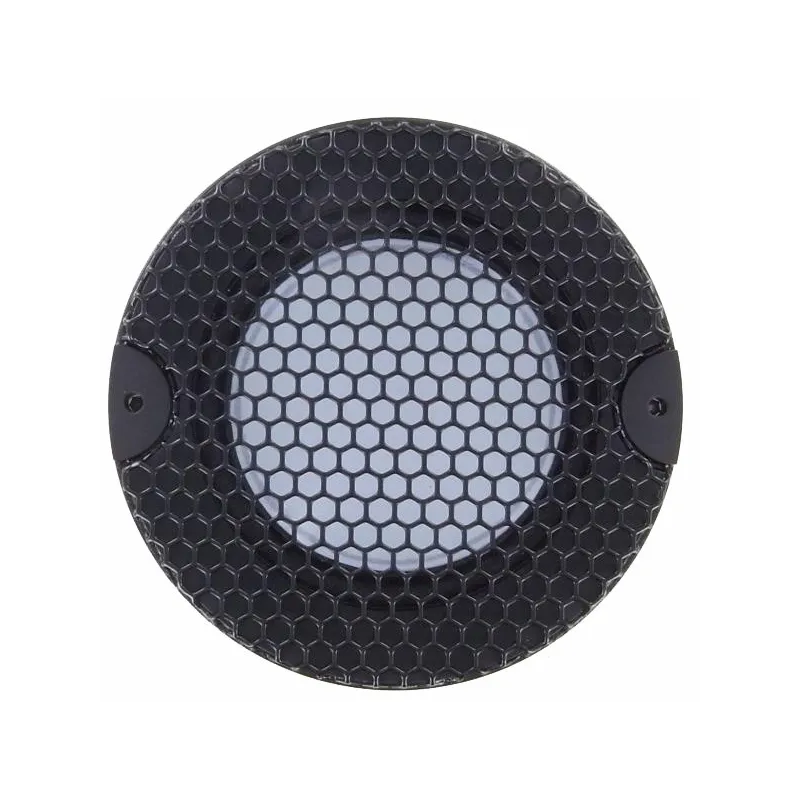

Accuton C51-6-286. Midrange driver with 2" ceramic dome.
The C51-6-286 is a 2 inch tweeter with ultra hard ceramic dome in a 86 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required. A unique FEA optimized underhung motor design with vented titanium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion. The new designed soft fabric surround centers the moving parts with improved linearity.
We recommend our C51-6-286 in an application above 800 Hz.
Accuton C51-6-286 'CELL Concept' driver fetures dual neodymium magnet.
- Frequency Range: 1000 Hz…19 kHz
- Resonance frequency [fs]: 565 Hz
- Sensitivity [2.83 V⁄1m]: 93 dB
- Mounting diameter: 86 mm
- Mounting depth: 84 mm
