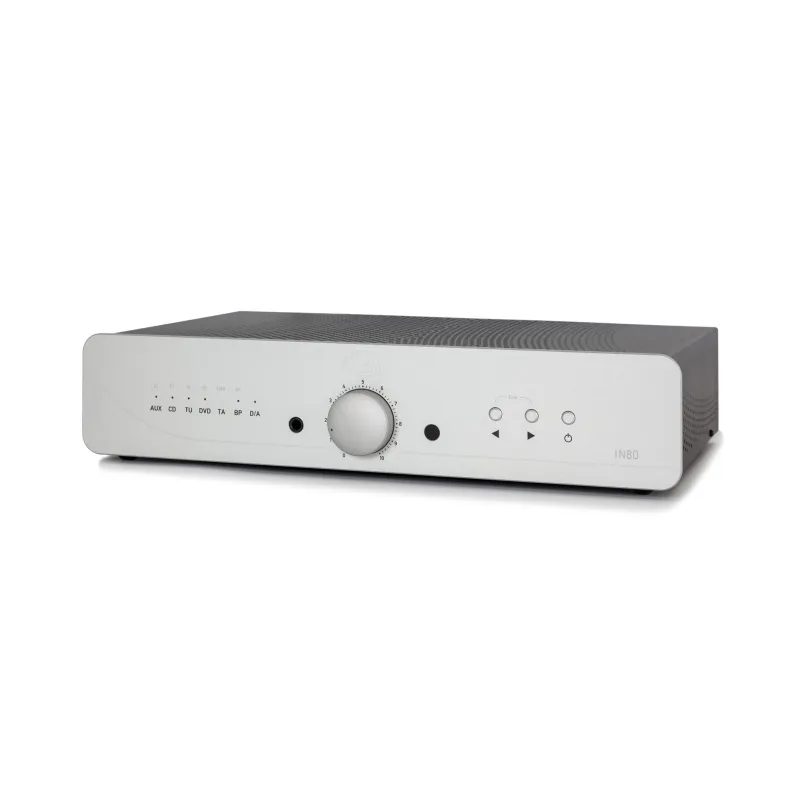

ATOLL Integrated IN80 Signature. 80W @ 8 Ohm stereo integrated amplifier. Silver

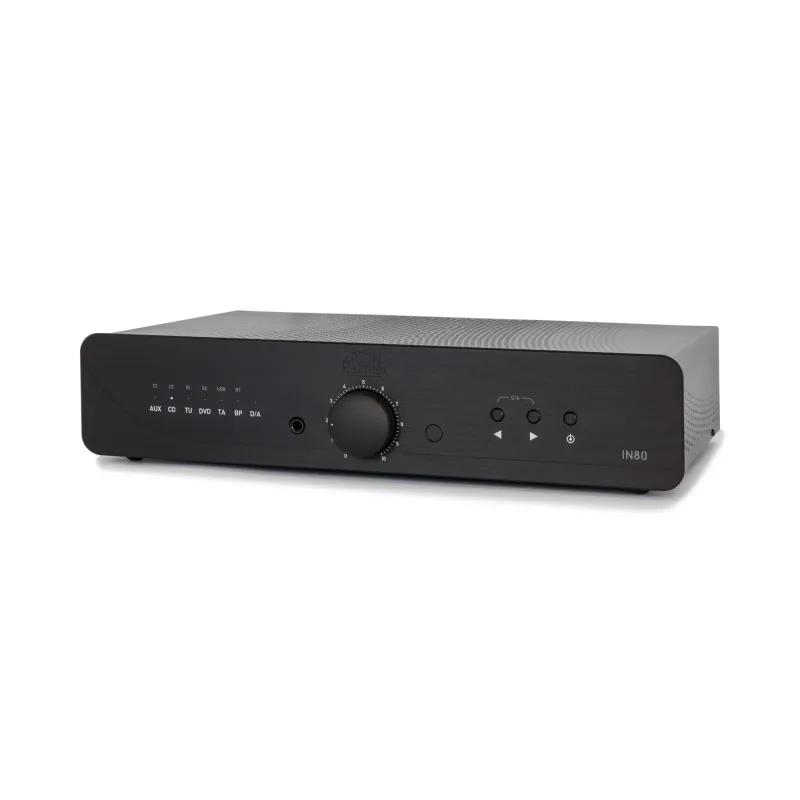

ATOLL Integrated IN80 Signature. 80W @ 8 Ohm stereo integrated amplifier. Black

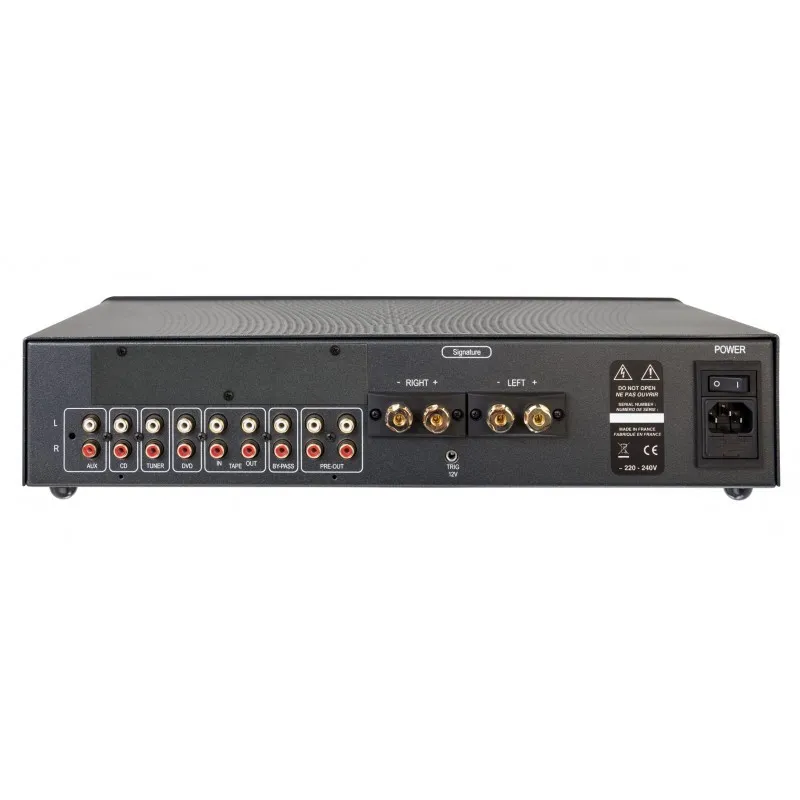

ATOLL Integrated IN80 Signature. Trasera
ATOLL Integrated IN80 Signature. 80W @ 8 Ohm stereo integrated amplifier. Silver
ATOLL Integrated IN80 Signature. 80W @ 8 Ohm stereo integrated amplifier. Black
ATOLL Integrated IN80 Signature. Trasera

ATOLL Integrated IN80 Signature

80W @ 8 Ohm integrated amplifier / stereo preamplifier 80W @ 8 Ohm.

120W @ 4 Ohm

Motorised ALPS potentiometer

Optional remote control

Colour

bloques info producto

Bank Transfer (3% OFF)

If you make the payment via bank transfer, you will receive an extra 3% discount on your order.

For personalized advice, contact us with no obligation

957460112
info@audiohum.com

Need to upgrade your equipment?

Would you be interested in trading in a device when purchasing this item?

Renovar equipo




ATOLL Integrated IN80 Signature. Integrated amplifier

The IN80 Signature integrated amplifier-preamplifier is built with the utmost care: we choose the best possible components to achieve the highest level of audio performance. This rigorous pursuit of perfection goes through ATOLL's proprietary circuit design to preserve the integrity of the subtlest musical signals.

Features

Output Power/ 8 Ω : 2×80 W

Output power/ 4 Ω : 2×120 W

Power supply : 340 VA

Total capacitors : 31 474 µF

Number of inputs : 5+1 BY-PASS

Preamplifier outputs : 2

Bandwidth : 5 Hz - 100 kHz

Rise time : 2.5 µs

Input impedance : 357 kΩ

Sensitivity : 100 mV

Signal to noise ratio : 100 dBA

Distortion rate at 1 kHz : 0.05% (10 W)

340 VA toroidal transformer

ALPS motorised potentiometer

Dimensions : 440×305×95 mm

Weight : 8 kg

5 audio inputs (RCA): AUX (or optional phono stage P50 or P100), CD, TUNER, TAPE (IN + OUT with monitoring circuit), DVD.

1 bypass input (using as power amplifier)

2 pre-outputs (for bi-amp or to connect to a subwoofer)

1 6.35 mm headphone socket

1 trigger 12V output

Possible options: (on request)

This device can be equipped with 2 different options:

1 phono board on AUX input (option of 1):

P100 (configured as MM or MC)

P50 (MM)

1 digital board (choice of 1):

Signature digital board (same as IN200SIG)

1 Bluetooth receiver

2 coaxial inputs (24 bit / 192 kHz)

2 optical inputs (24 bit / 192 kHz)

1 USB-B input: PCM and DSD

Audio converter: AKM - AK4490

16-bit PCM to 32-bit PCM up to 384 kHz on USB-B input (asynchronous).

DSD: DSD64 and DSD128.

USB interface: XMOS with specific software designed for ATOLL.

SPDIF card including 2 coaxial and 2 optical inputs (24 bit / 192 kHz).
