The Audiolab M-ONE is a compact integrated amplifier - the latest addition to the M-DAC family. Leveraging our acclaimed DAC and amplification technology in a single tiny box, a number of connections, both analog and digital, aptX Bluetooth, and USB ensure a thrilling sonic experience with audio resolution up to 384 kHz.

An amp for modern music lovers.

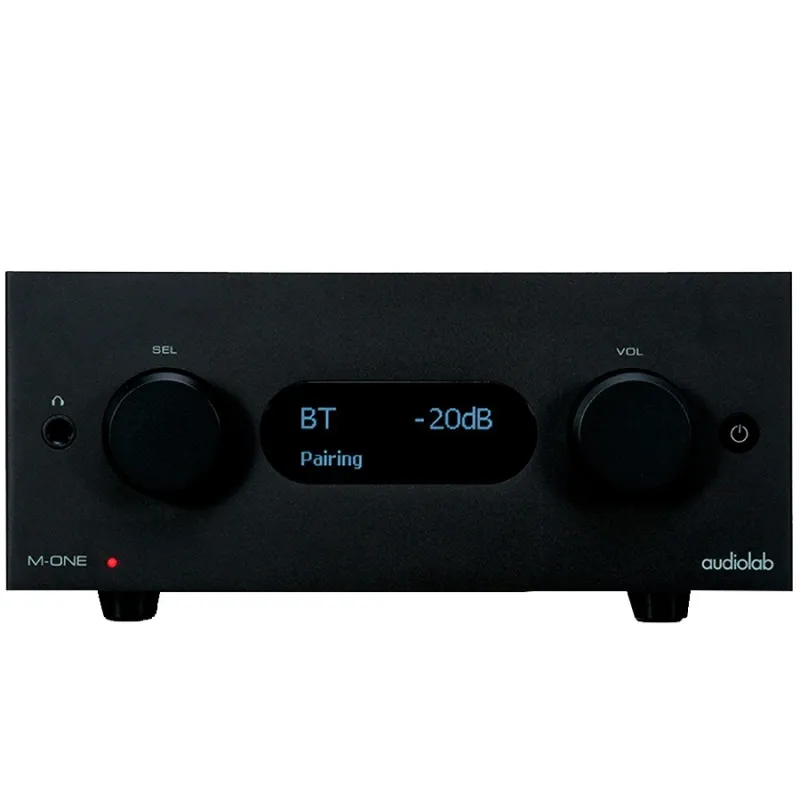

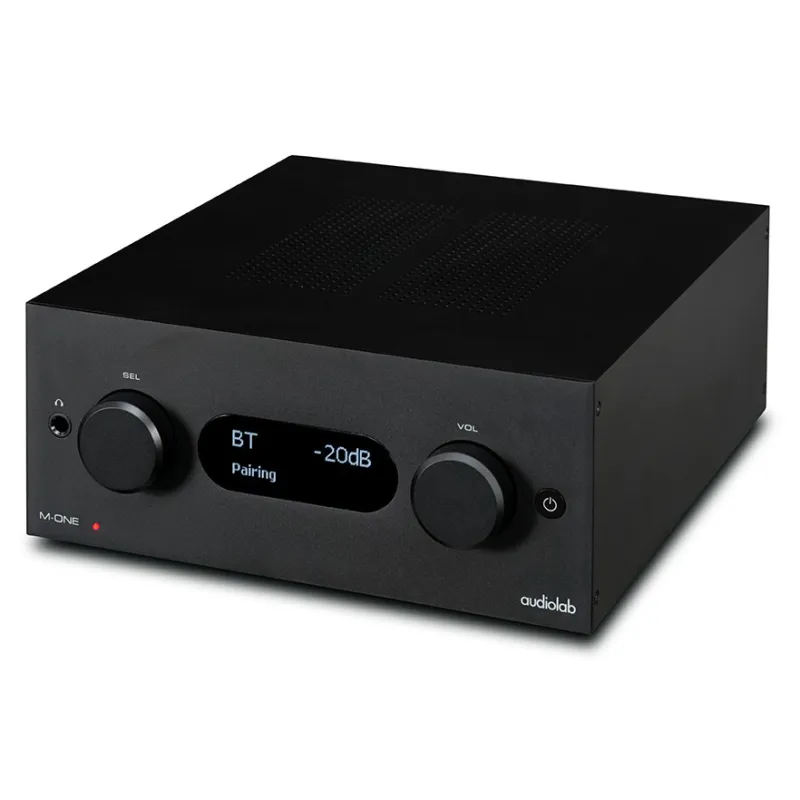

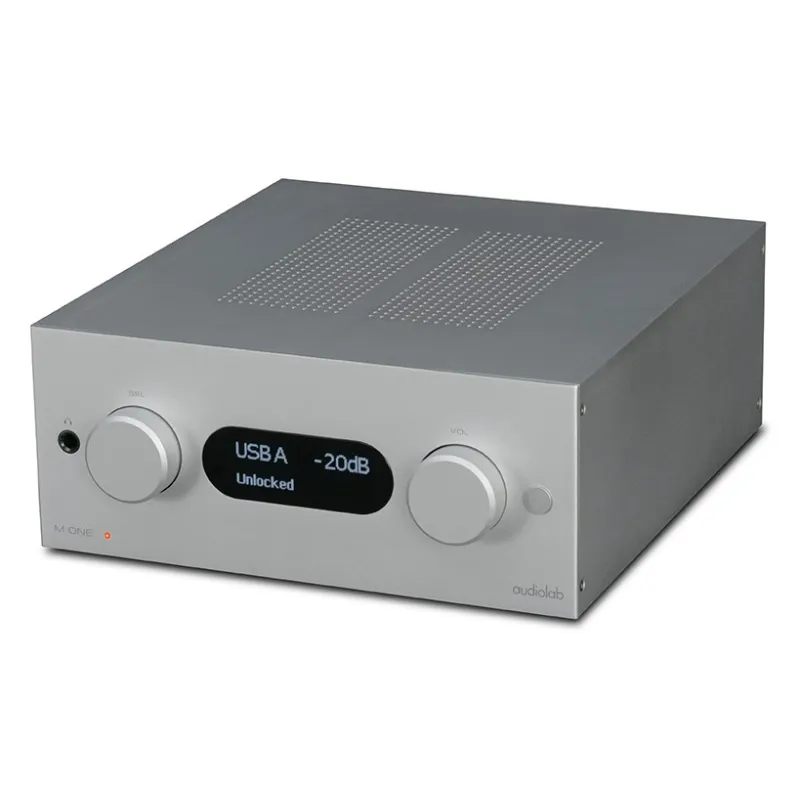

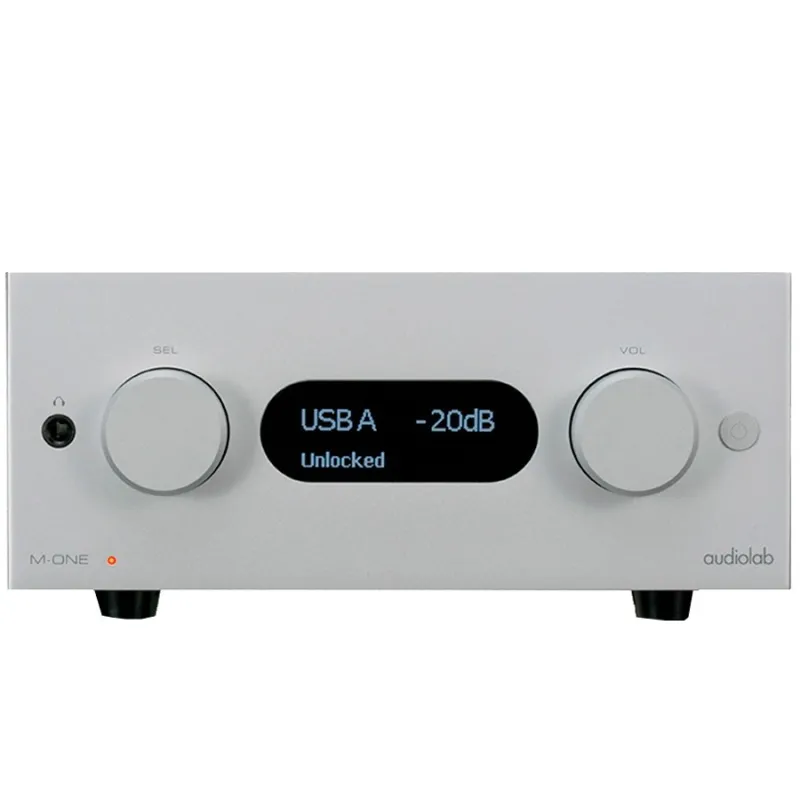

On the outside, the M-ONE is almost identical to the M-DAC +, the flagship component of the Audiolab DAC. It carries the same compact aluminum case, small enough to sit discreetly on a desk, table or shelf, with the same central OLED display and a sleek dual rotary control system. But while standalone DACs require a separate power amplifier to drive a pair of speakers, the M-ONE packs in its tiny chassis high-quality stereo power amplification, plus pre-amp facilities for analog and digital sources.

Now the magic of the DAC.

The DAC section of the M-ONE is equipped to process PCM audio data up to 32-bit / 384 kHz via USB, ensuring that the M-ONE is ready to take full advantage of high-resolution digital sound, both now as in the future. The USB input also supports DSD files (the digital audio system originally developed for Super Audio CD), offering compatibility with DSD64, DSD128 and DSD256 - a significant inclusion, as DSD has an important role to play in the development of the recording scene. high resolution audio.

Filters for all music sources.

To take full advantage of the Audiolab M-ONE's advanced sound processing, a range of user-selectable filters is included to fine-tune the sound of digital sources to taste. A selection of three PCM and four DSD filters offer sonic adaptation options to meet the different audio qualities offered by different types and sources of digital download files.

I have the power.

The preamp section blends minimalist design with high-quality components, ensuring a short, direct signal path to maintain sonic purity. Volume is digitally controlled in the analog domain and fed directly to the class AB power amplifier, which provides 40W output per channel at 8 ohms, providing enough power to drive efficient modern speakers to room volume levels without any effort.

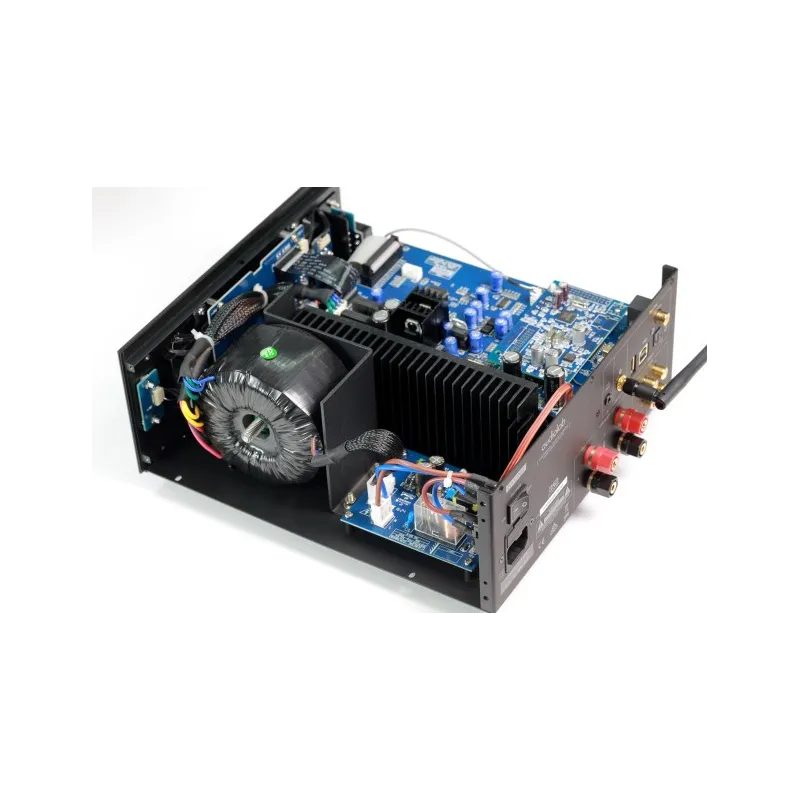

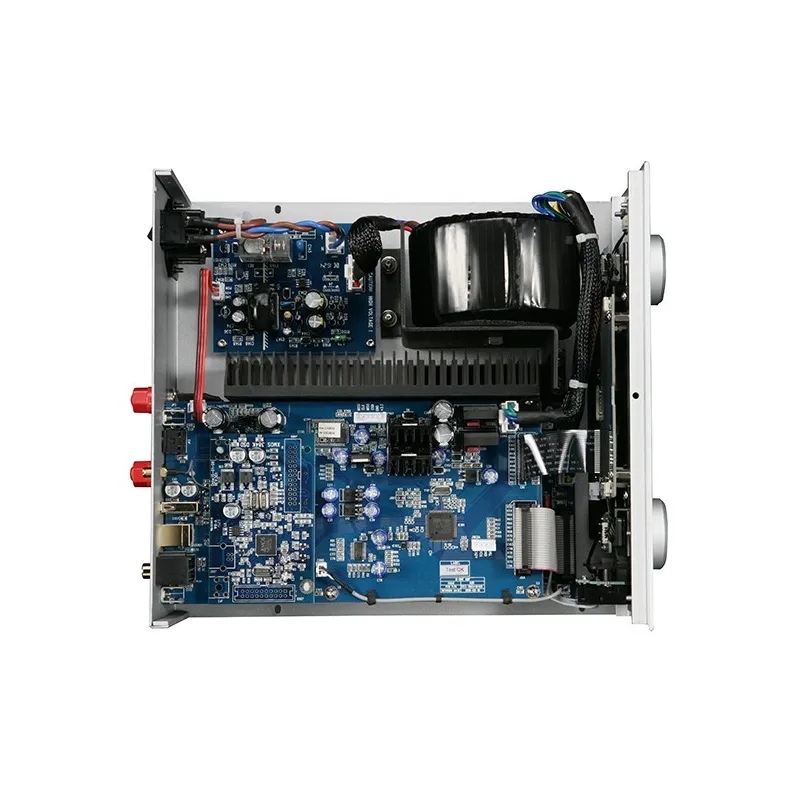

A low-noise linear power supply benefits all circuitry from the DAC to the power amplifier, incorporating a precision-wound, shielded toroidal transformer and multiple power supply sections to keep crosstalk to a minimum. This uncompromising circuit design allows for a large-scale, open sound scene packed with crisp detail and fast, precisely defined musical transients - when used with loudspeakers of adequate quality, the M-ONE's performance belies its diminutive size.

In addition to the main amplification stage, the M-ONE shares the same high-quality headphone amplifier as the M-DAC and M-DAC +, ensuring that it is as capable with headphones as it is with speakers.

Features:

Overview Integrated amplifier with Bluetooth receiver and digital inputs

Sampling frequency 32-bit / 192kHz (Optical, Coaxial)

32-bit / 384kHz (USB)

2.8MHz (DSD64), 5.6MHz (DSD128), 11.2MHz (DSD256)

Sensitivity of input 515 mV Input

impedance 10 kohms

Inputs 1 x USB A for Apple devices

1 x USB B for PC

1 x COAXIAL

1 x OPTICAL

1 x Bluetooth

2 x RCA

1 x Headphones

Trigger 12V Yes

Output power 2 x 40 W at 8 ohms

2 x 60 W at 4 ohms

Frequency response 10 Hz - 30 kHz (-3 dB)

Total harmonic distortion 0.01% THD

Signal-to-noise ratio 81 dB (1 W @ 1 kHz

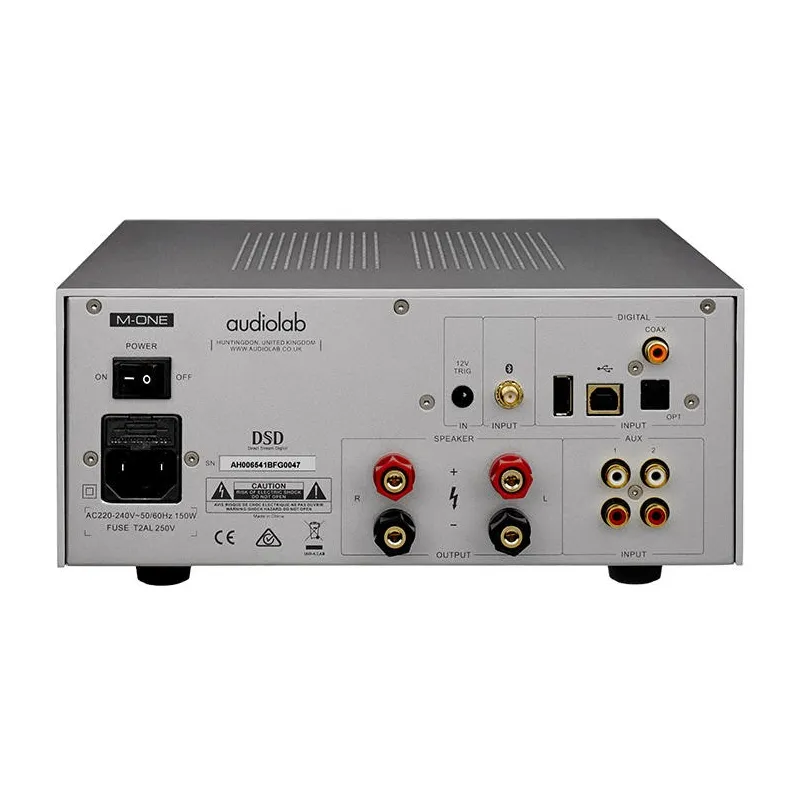

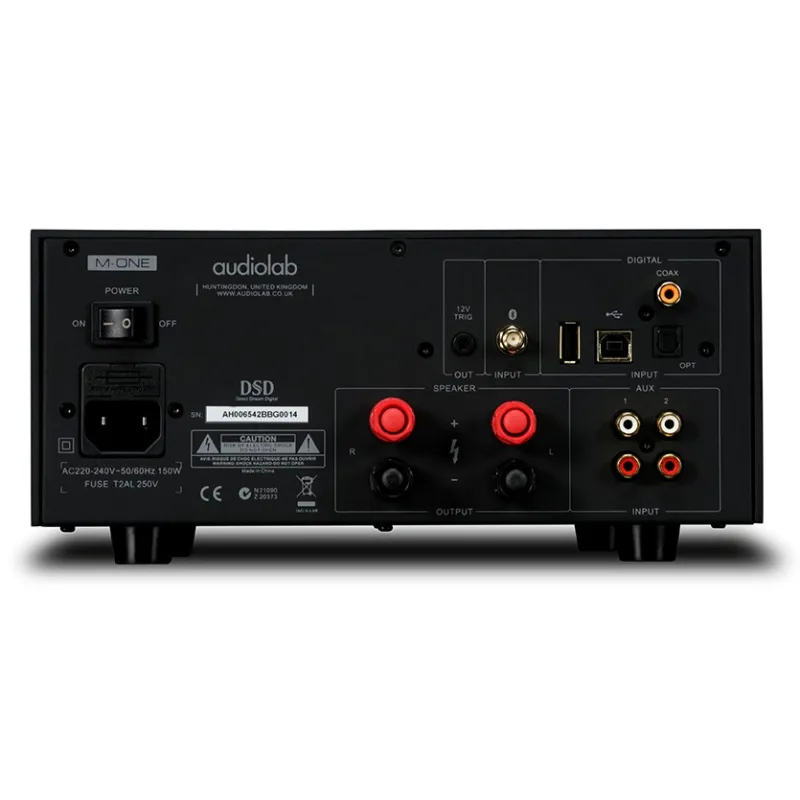

Outputs Terminals for speaker connection

Dimensions 247 mm (width) x 114 mm (height) x 292 mm (depth)

Weight 5.5 kg
