ATOLL AV100
ATOLL AV100.
The AV100 home cinema power amplifier is a 3-channel model that develops up to 100 watts per channel at 8 ohms.
Bankwire payment (3% DTO)
If you choose Bankwire payment you will get a 3% discount on your order.
Shipping Policy
Return policy
ATOLL AV100
The AV100 home cinema amplifier is a 3-channel model developing up to 100 watts per channel at 8 ohms. Equipped with high quality electronic components, this amplifier will be advantageously associated with an integrated home cinema amplifier with pre-outs, to amplify the front channels. This very musical amplifier, combining power and finesse, allows the listener to immerse himself in the heart of the action.

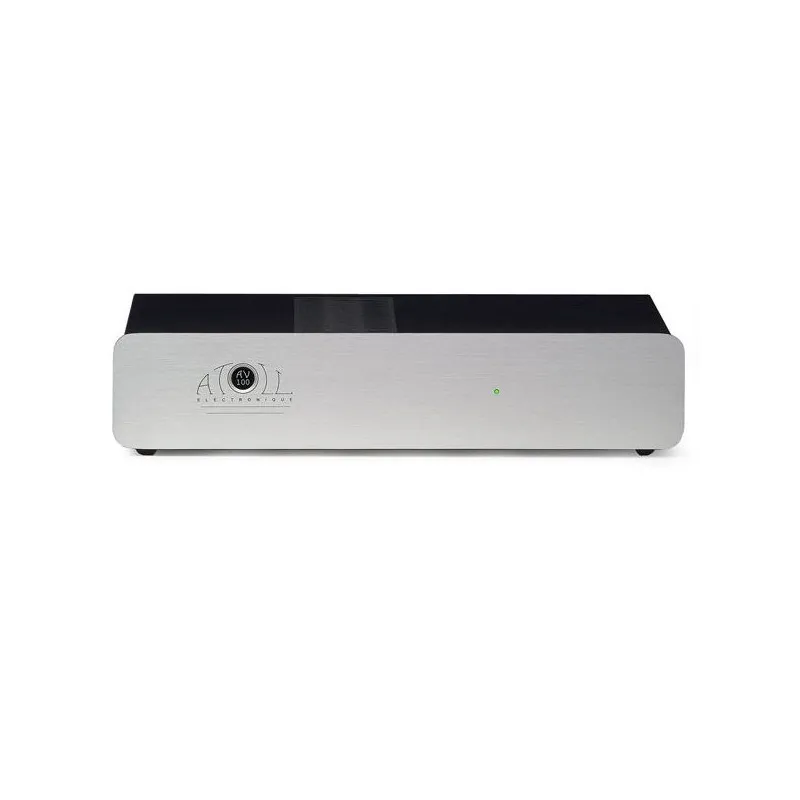

4 mm brushed aluminium front panel.
1.5 mm steel frame.
3×100 Wrms under 8 Ω.
2 toroidal transformers of 340 VA each.
Total capacitors: 44 210 µF.
Symmetrical stages with discrete components.
MOS-FET technology output transistors.
Optional natural aluminium finish.
Possibility of optionally integrating a 12 V Trigger input.

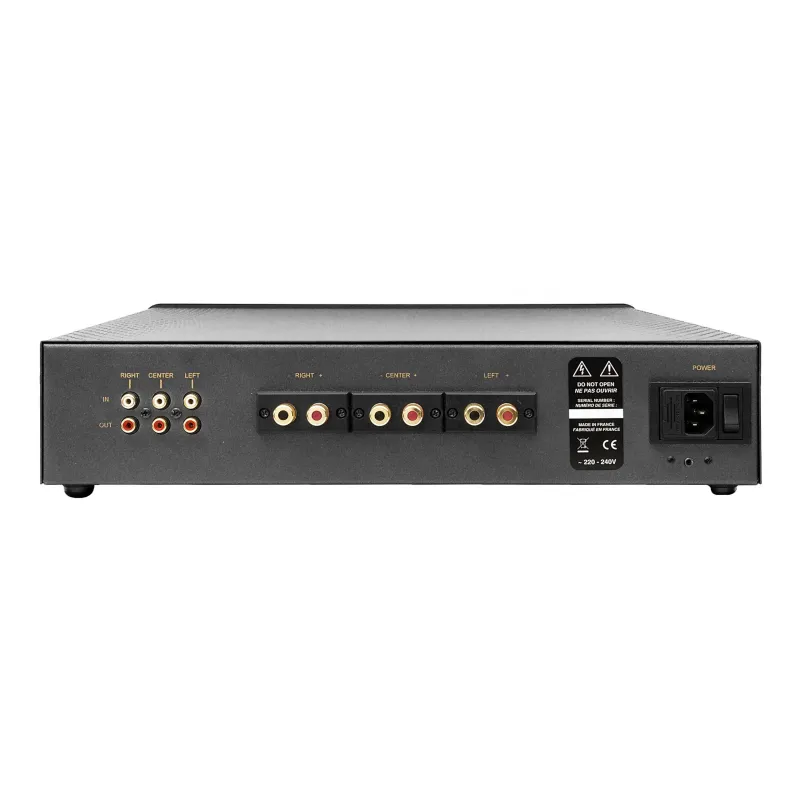

Connectivity:
Inputs
3 signal inputs (right, centre and left channels).
1 Trigger input (1) (optional).
Outputs
3 signal outputs (right, centre and left channels).
1 Right speaker output.
1 Centre channel output.
1 left speaker output.
Technical characteristics:
Power at Wrms / 8 Ω: 100W /channel.
Power at Wrms / 4 Ω: 140 W /channel
Power in pulses: 180 W / channel
Power supply: 2×340 VA
Total capacitors: 44 210 µF
Number of inputs: 3
Input impedance: 47 kΩ
Sensitivity: 1.77 V
Signal-to-noise ratio: 100 dB
Distortion rate at 1 kHz: 0.05% / (10 W)
Bandwidth: 5 Hz - 200 kHz
Rise time: 1.3 µs
Dimensions: 440×291×95 mm
Weight: 11 kg
