Reference preamplifier with unique 31-step transformer attenuator.
Active C3m tube stage in triode mode, no feedback
Sound transparency superior to conventional resistive attenuators
Point-to-point pure silver wiring, valve rectification (6CA4) and choke filter
Gain: 16.9 dB | Output: 150 Ω | Input: 50 kΩ | Bandwidth: 9 Hz-100 kHz
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Would you be interested in trading in a device when purchasing this item?
The PST-100 is undoubtedly a standout addition to YPSILON’s 100 Series, redefining the concept of high-end preamplification. Its unique approach centers on absolute signal attenuation quality, placing handcrafted, in-house-developed transformers at the heart of the design to deliver uncompromising volume control. Paired with a meticulously engineered tube circuit and premium materials, the PST-100 achieves a sound that is both elegant and precise—truly in a class of its own.
While most traditional designs focus primarily on the active circuitry, at YPSILON we firmly believe that volume control is the most critical component in the sonic performance of a preamplifier.
Many manufacturers rely on resistive attenuators; even using high-grade resistors such as Vishay, we found they imparted an undesirable character to the sound. This led us to develop a proprietary attenuation transformer, using specialized winding techniques and the highest purity core and conductor materials available. The result: a level of sonic transparency far beyond what any resistive attenuator can offer.
The PST-100 mk2 features a 31-step transformer-based attenuator, delivering a total attenuation of 54 dB at the lowest level, while maintaining exceptional magnetic linearity through the use of superior core materials. The outcome is a sound that is significantly more musical, natural, and richly detailed.
The active circuit of the PST-100 mk2 is built around a zero-feedback, single-ended design using the C3m tube in triode mode, transformer-coupled for optimal signal integrity. The power supply employs a 6CA4 tube rectifier and choke-filtering, ensuring clean and stable power delivery.

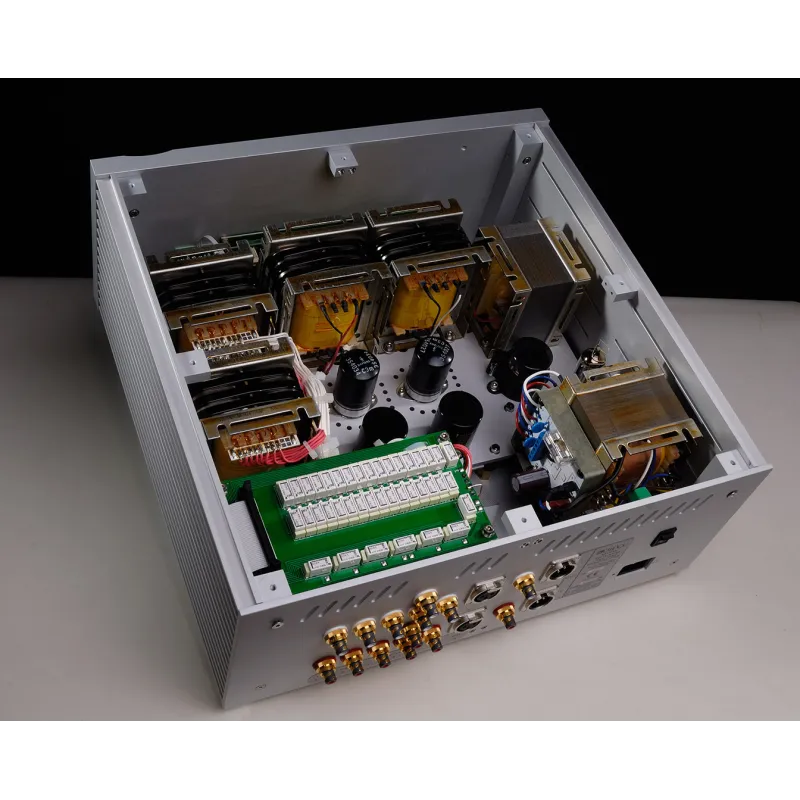

All internal wiring is done point-to-point, using custom-made pure silver wire. The transformer attenuator is placed after the tube gain stage, preserving sonic purity and microdetail with exceptional fidelity.
Gain: 16 dB
Output Impedance: Max. 150 Ω
The PST-100 mk2 represents the pinnacle of preamplification—an essential component for any no-compromise high-end audio system.
PST-100 TA: Transformer Attenuation, No Active Stage
For systems that do not require additional gain, the PST-100 TA offers the same high-end transformer-based attenuation, without the active tube stage. This version retains the same sonic excellence and can be fully upgraded to the complete PST-100 mk2 by sending the unit back to the factory.
Bandwidth: 9 Hz – 100 kHz (–3 dB)
Output Impedance: 150 Ohm
Input Impedance: 50 kOhm
Gain (active mode): x7 (16.9 dB)
Power Consumption: Max. 100 VA
Dimensions (W x H x D): 400 x 180 x 410 mm
Weight: 25 kg
