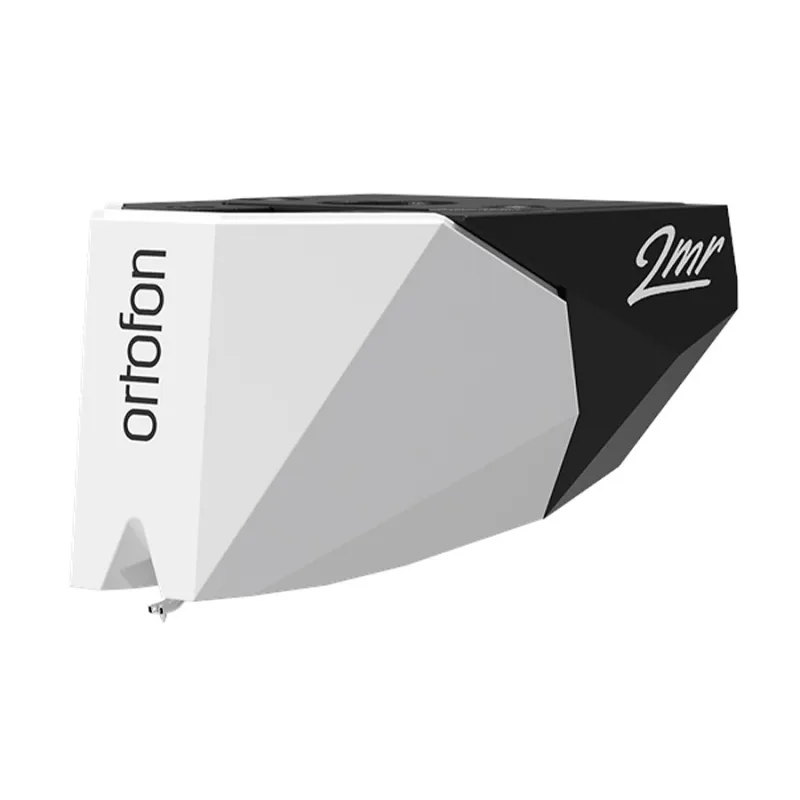

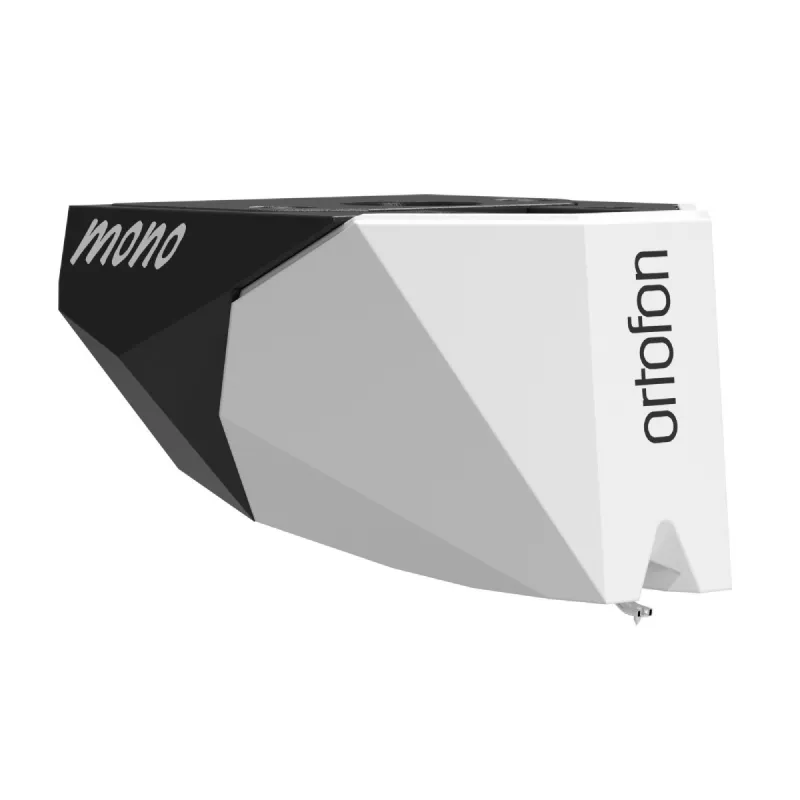

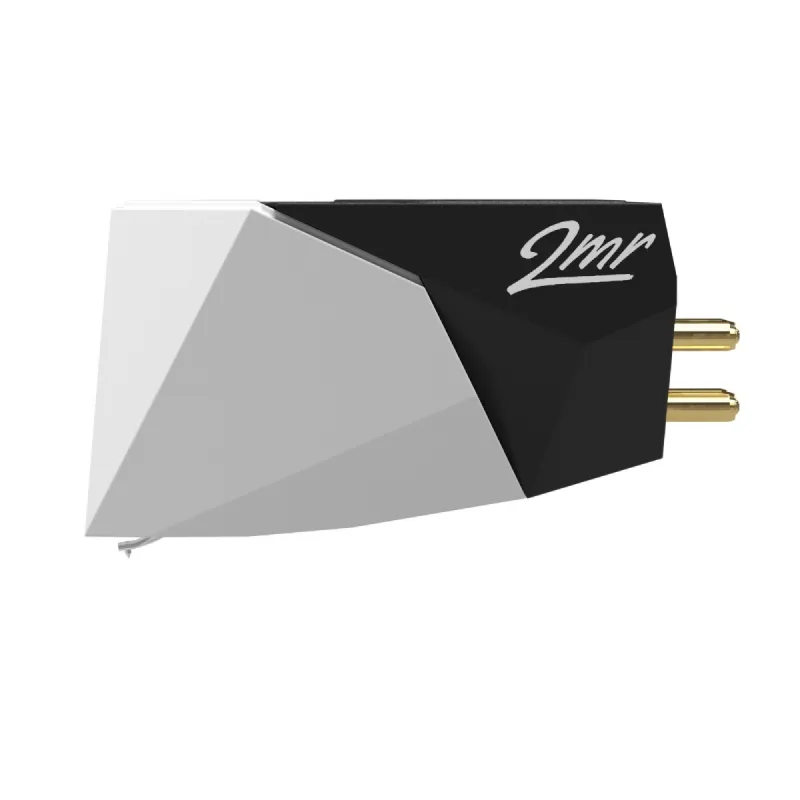

ORTOFON 2MR Mono
Ortofon 2MR Mono. The 2M Mono features an improved motor that provides a high level of sonic accuracy.
*Specifically designed for REGA turntables.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
The tip of the stylus features an 18µm R bare spherical diamond which is an optimal solution for playing mono microgroove LP vinyl records. The cartridge body is made of Hopelex, which ensures high rigidity and eliminates unwanted resonances.
The 2M Mono uses a linked output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for dedicated mono equipment, making it possible to enjoy true mono playback on any stereo playback system.
The 2M series provides excellent compatibility when used in a variety of playback systems and with a wide variety of phono preamplifiers.
Technical characteristics:
Output voltage at 1000 Hz, 5 cm/sec. - 4 mV.
Frequency response - 20-20,000 Hz + 3 / - 1 dB.
Tracking capability at 315 Hz with recommended tracking force: 70 µm.
Compliance, dynamic, lateral - 18 µm/mN.
Pencil type: naked spherical.
Pencil tip radius: R18 µm.
Tracking force range: 1.6-2.0g (16-20mN).
Recommended tracking force: 1.8 g (18 mN).
Tracking angle - 20°.
Internal impedance, DC resistance - 700 ohms.
Internal inductance - 350 mH.
Recommended load resistance: 47 kOhm.
Recommended load capacitance: 150-300 pF.
Cartridge, body/stylus color: black/white.
2MR cartridge weight: 6 g.
Weight of 2M and 2M Verso cartridges: 7.2 g
Weight of 2M pre-assembled cartridge: 16.7g.
