NAGAOKA MP-100
MM cartridge.
Permalloy moving magnet with 0.6 mil conical stylus
Expressive sound, ideal for vocals, jazz, and classical
Output voltage: 5 mV – Response: 20 Hz – 20 kHz
Touch force: 1.8 – 2.3 g
Replaceable stylus compatible with higher-end models (MP-200, etc.)
Includes screws, screwdriver, and stylus guard
Warm, musical sound at an affordable price
Perfect for beginners in audiophile-quality vinyl
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?

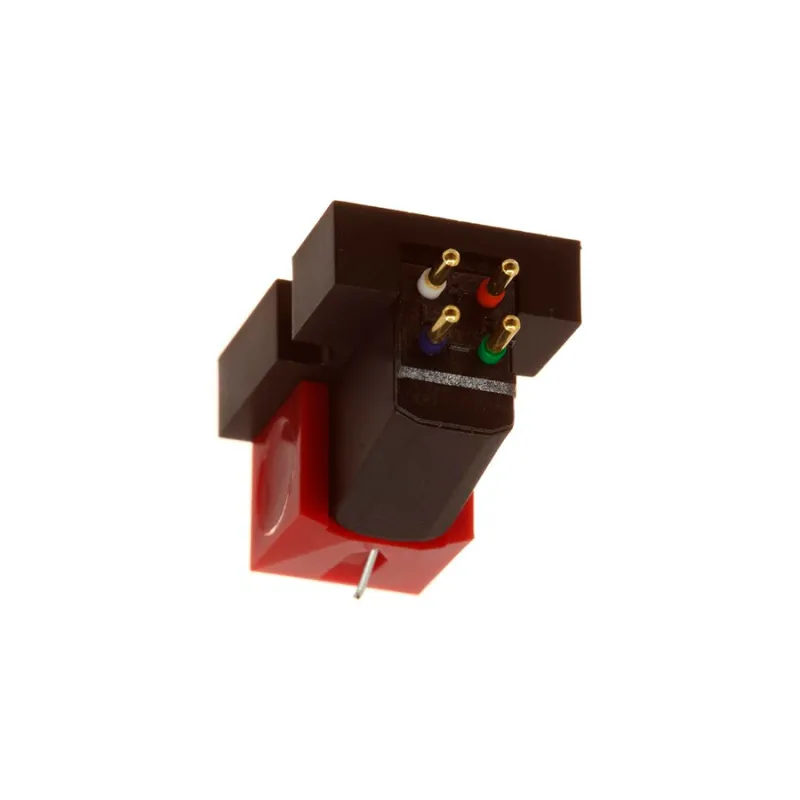

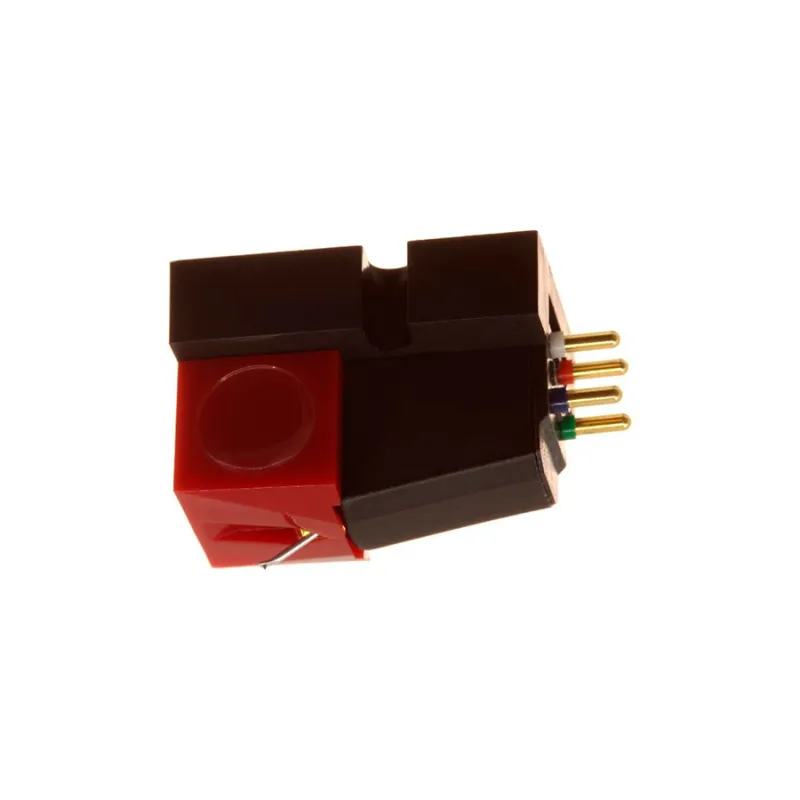

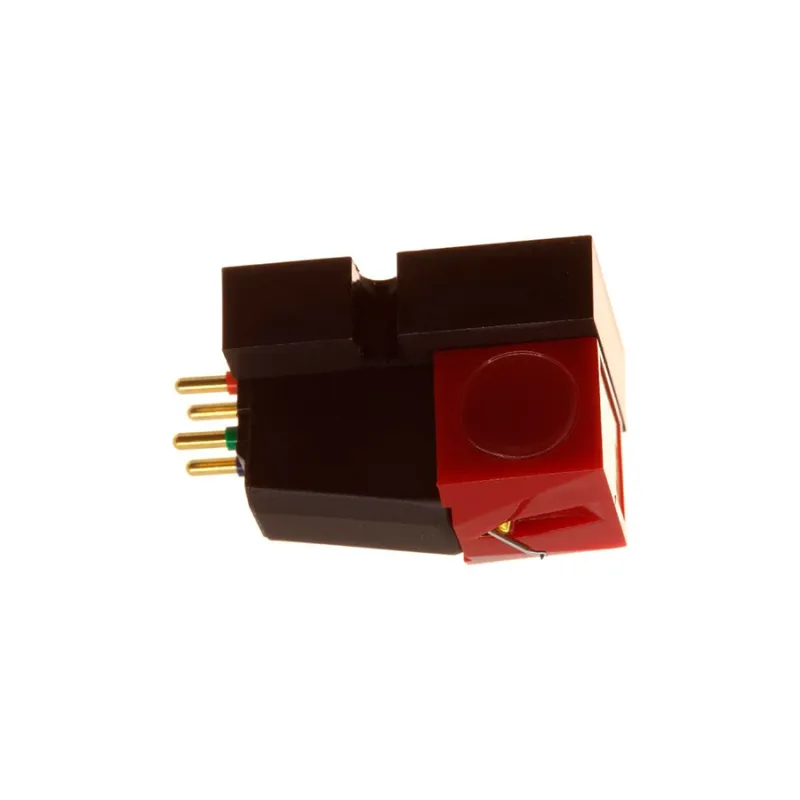

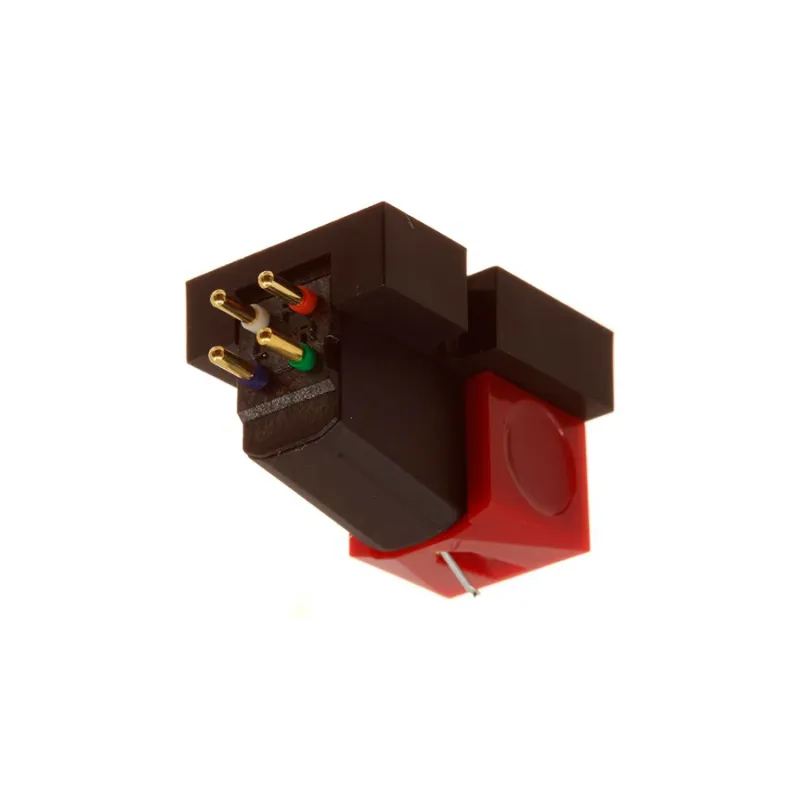

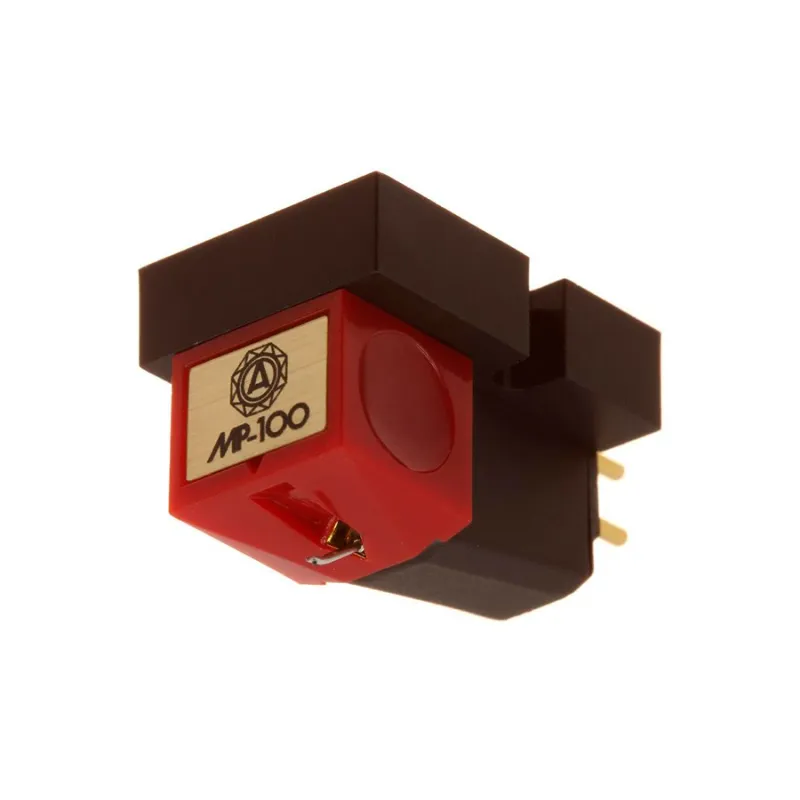

Nagaoka MP-100. High-Performance Entry-Level Phono Cartridge with Conical Stylus
The Nagaoka MP-100 is the entry-level model in Nagaoka’s renowned MP (Moving Permalloy) series and an excellent choice for vinyl enthusiasts looking to explore high-quality analog sound at an affordable price. Sharing its body with the highly regarded MP-110, the MP-100 features a 0.6 mil conical diamond stylus that delivers a warm, expressive sound with exceptional presence—especially appreciated in vocal recordings, classical music, and jazz.
Rich, Musical Sound with Natural Presence
Don’t underestimate the power of a conical stylus. Its shape allows for a full-bodied, direct sound with a rich tonal character and a level of musicality many audiophiles find more engaging and organic than ultra-analytical options. The MP-100 excels in vocal clarity, tonal balance, and delivering a vivid, immersive listening experience.
Replaceable and Upgradeable Stylus
Built with Permalloy moving magnet technology, the MP-100 allows easy stylus replacement, extending the cartridge’s lifespan and offering upgrade paths within the Nagaoka range. You can swap in a higher-end stylus such as the MP-200, with its boron cantilever and elliptical diamond tip, for enhanced resolution and audiophile-grade performance.
Comes Fully Equipped for Installation
The Nagaoka MP-100 comes ready to install and includes a complete accessory kit:
Two sets of mounting screws (10 mm and 13 mm)
Plastic washers
Mounting nuts
Mini screwdriver
Stylus guard (included and available separately)
Everything you need for a secure, hassle-free setup on most standard headshells.
Technical Specifications
Type: Moving Permalloy (MP/MM) cartridge
Output Voltage: 5 mV @ 1 kHz, 5 cm/s
Frequency Response: 20 Hz – 20 kHz
Stylus Type: 0.6 mil conical diamond
Recommended Tracking Force: 1.8 – 2.3 g
Static Compliance: 18 x 10⁻⁶ cm/dyne
Dynamic Compliance: 5.5 x 10⁻⁶ cm/dyne
Channel Separation: >22 dB @ 1 kHz
Channel Balance: <2 dB @ 1 kHz
Cantilever: Lightweight aluminum alloy
Recommended Load Impedance: 47 kΩ
Cartridge Weight: 6.5 g
Ideal For:
Mid-range turntables and vintage record players
First-time cartridge buyers seeking durability and musicality
Vinyl lovers who appreciate warm, natural analog sound
With the Nagaoka MP-100, you'll discover the soul of analog listening—reliable, musical, and crafted by one of the most respected cartridge manufacturers in the world of vinyl.
