ISOTEK Sirius V5. Mains accessories / Filter and protection strips.

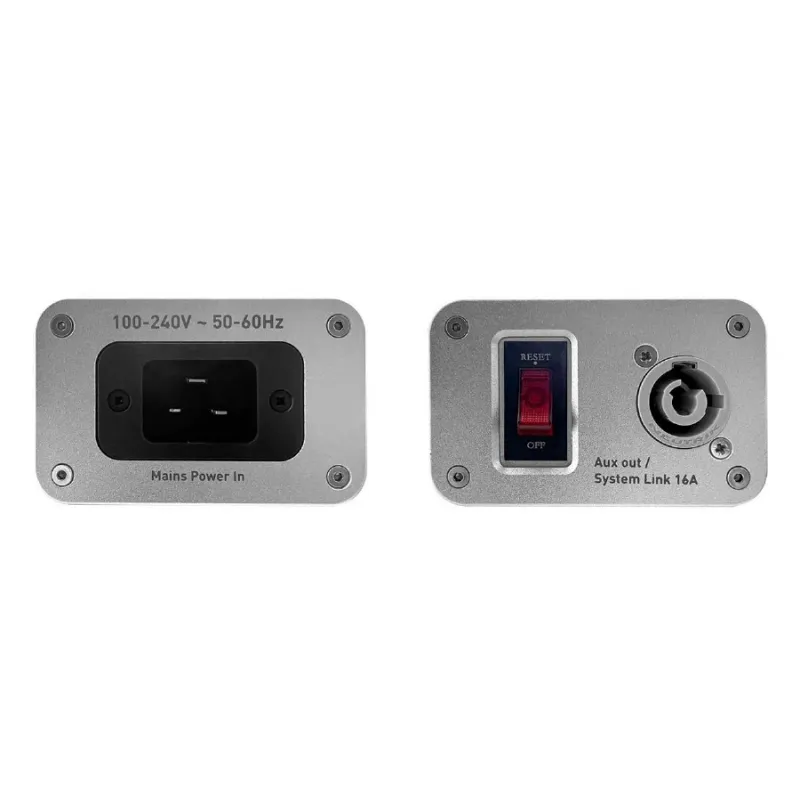

If more power output sockets are required, a unique IsoTek 'System Link' connector is provided, allowing you to connect multiple IsoTek units together while maintaining earth connection. In addition, an easy-to-reset fusing system offers a substantial improvement over an ordinary standard glass fuse due to a larger contact area.

Each output socket is individually wired, no two (or more) are connected, each referenced to the central power cleaning network, ideal for the reduction and elimination of differential mode network noise cross-contamination.

IsoTek's unique additional 'SYSTEM LINK' output connector is provided to allow you to connect multiple IsoTek units together while maintaining ground connection.

The V5 Sirius features a greatly improved high power bypass filter network that offers -23dB mains noise reduction at 10 kHz -40dB, 100 kHz and -60dB at 1 MHz (Ref 50 ohms 20dB, this is considerably higher than typical textbook designs and is ideal for addressing common mode network noise).

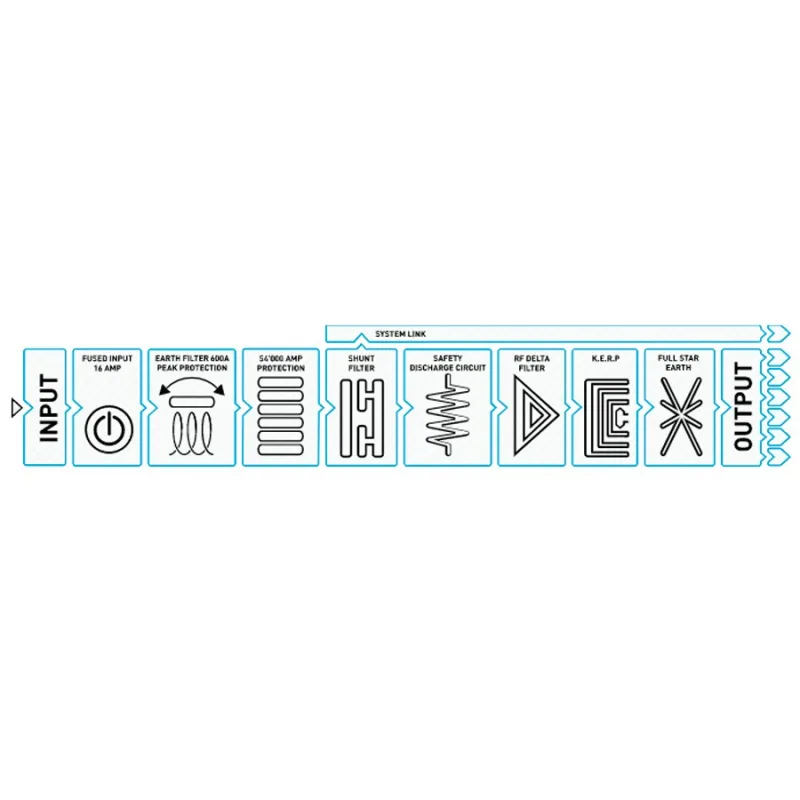

A unique high quality, high amperage mains noise choke based system combines with a high frequency delta filter network to eliminate both common mode and differential mode mains noise over a wide frequency range.

V5 Sirius features KERP © (Kirchoff Equal Resistance Path) which guarantees the same resistance and power delivery to all outlets.

The internal wiring is unique and specifically designed to offer the highest standards of power delivery, pure 6n oxygen free copper conductor, multiple but minimal wires with silver plating designed to offer low resistance and high amperage. An FEP dielectric is then used to protect the conductors offering low dielectric constancy.

The 54,000 amp instantaneous but transient protection system enhances sound and protects precious audio components from dangerous power surges and spikes.

The easy-to-reset fusing system offers a substantial improvement over an ordinary standard fuse due to a larger contact area. By virtue of its electrical function, a standard fuse must have a very thin cable, which also applies to the expensive gold-plated audiophile versions.

A special, easy-to-install wall bracket system is provided that allows you to mount the V5 Sirius discreetly behind your audio system if necessary.

Technical specifications:

NUMBER OF OUTLETS 6.

TYPE OF OUTLETS RU, EU, USA, AU AND CH.

SYSTEM LINK 1.

MAINS INPUT 16A IEC C20.

MAINS VOLTAGE 100-240V / 50-60Hz.

MAXIMUM CURRENT 16A HRC.

TOTAL POWER 3'680W (@230V) / 1'840W (@115V).

OVERVOLTAGE PROTECTION 54'000A.

DIMENSIONS (W X H X D) 88 x 55 x 555 mm.

WEIGHT 2Kg.

DELIVERED WITH EVO3 Premier CABLE.
