ISOTEK V5 Elektra. Very high performance network conditioner.

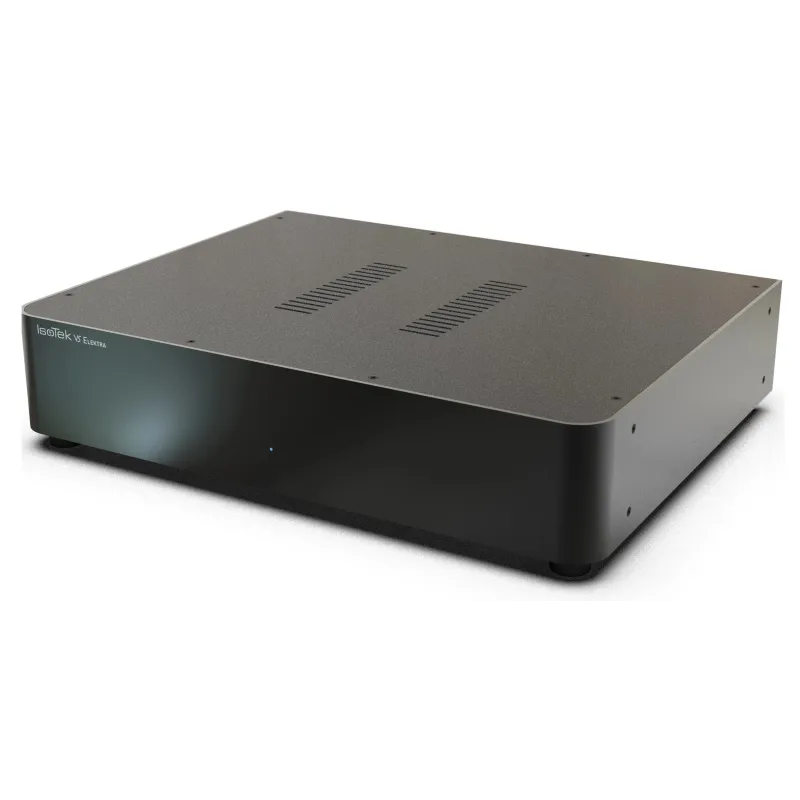

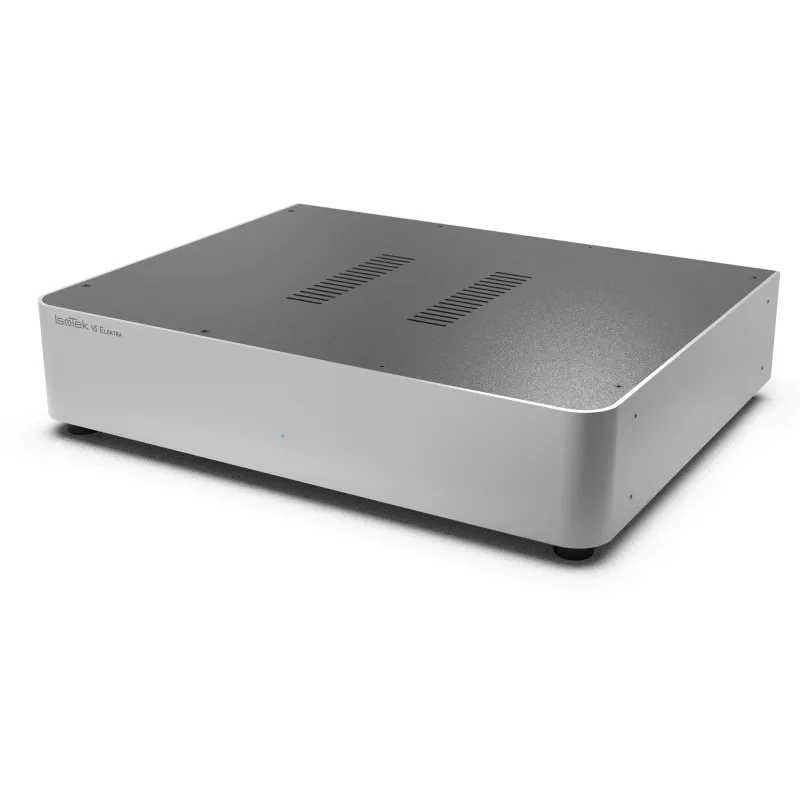

Part of IsoTek's Discovery range, the V5 Elektra is an elegant and compact mains conditioner consisting of six independent power outlets, equipped with individual cleaning circuits. Two of these sockets are dedicated to components that handle high currents, for which they use a design with choke coils and double Pi filters. For its part, the remaining four outlets can handle medium value currents from sources in which six-stage delta filter networks are used, thanks to this, a cleanliness of almost 20 dB at 1 kHz is achieved in the power signal. which converts to almost 40 dB at 10 kHz, which is ten times higher than the recommended standard. To all this we must add another five independent filter stages, which are placed between each outlet in combination with a version of IsoTek's exclusive Adaptive Gating system twice as large as that used in the EVO3 Aquarius model. In this way, differential mode cross-contamination between outlets is eliminated, optimizing the performance of each of them. At the physical execution level, both the architecture and design of the V5 Elektra are in line with the usual high standards at IsoTek, using key components custom-made for improved overall tolerances and improved inductance and current handling capacity. substantially superior to those offered by the EVO3 Aquarius. The result is a more open and spacious soundstage, more precise dynamic micro-contrasts and a higher level of detail.

Technical characteristics:

Very high performance network conditioner.

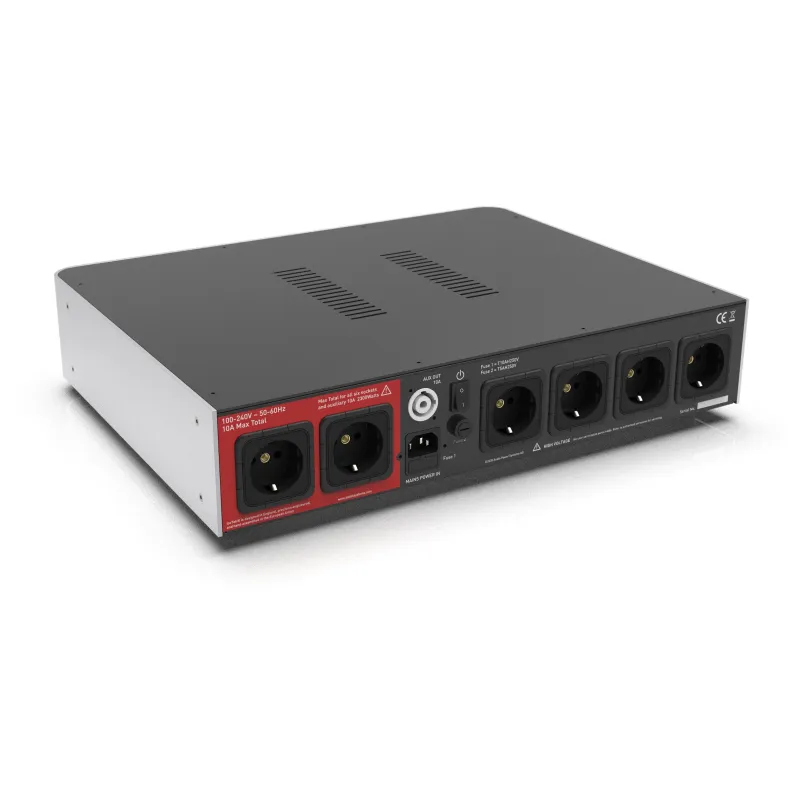

6 sockets in total: 2 high current (10A) and 4 medium/low current (5A).

Total admissible power of 3,450 W.

Independent filter circuits for each outlet.

Eliminates Common Mode and Differential Mode noise from the network signal.

55 dB reduction in radio frequency interference (RFI).

KERP system to match the resistance and power of each shot.

Protection against continuous currents up to 32,500 amps.

Protection against instantaneous currents of up to 67,500 amps.

Silver-plated 6N purity OFC copper internal wiring.

Supplied as standard with an IsoTek EVO3 Initium network cable.

Dimensions: 450x106x350 mm (WxHxD).

Weight: 9kg.
