Streamer, DAC and preamplifier in one device.
Digital (USB, SPDIF, HDMI) and analogue (RCA) inputs, supporting DSD512 and high resolution PCM
Fibre optic network to reduce noise
Femto clock system for precise synchronisation
4K video and HDMI audio support (Dolby Vision, Atmos)
Streaming: Compatible with TIDAL, Qobuz, Spotify, Roon, and more
Sound quality: Dual ESS SABRE32 ES9028Pro DAC, Leedh Processing for lossless volume
Power supply: Toroidal transformer for noise reduction

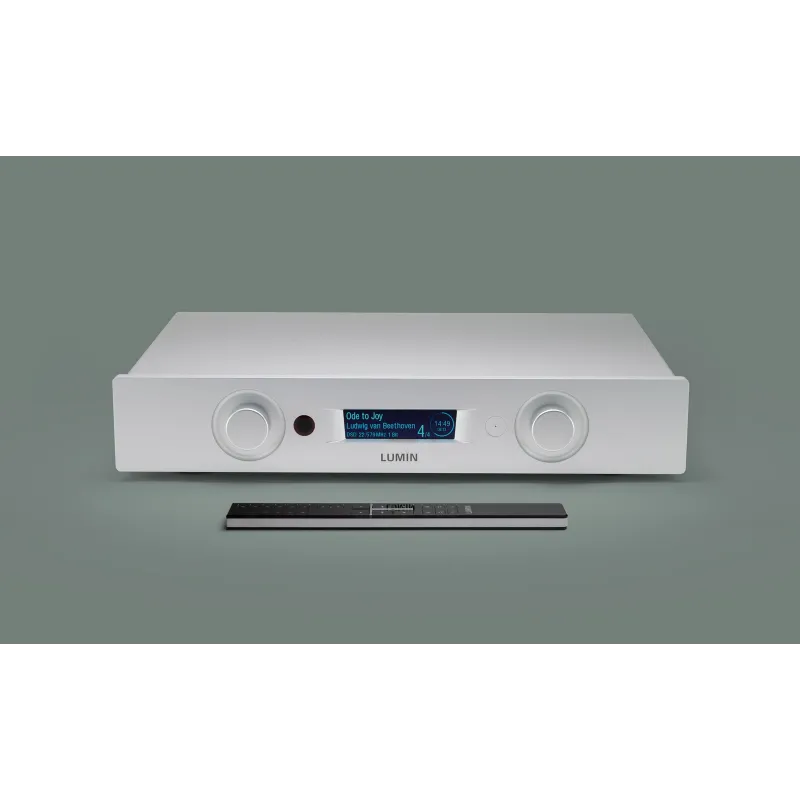

Includes remote control
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Would you be interested in trading in a device when purchasing this item?
The LUMIN P1 Mini is an extremely versatile audio device, designed to function as a streamer, DAC (digital-to-analogue converter), preamplifier or a combination of all three. It builds on the success of the LUMIN P1 model, with features inherited from the flagship LUMIN X1 model, such as fibre-optic networking, which isolates the device from network noise, and a Femto clock system for high-precision synchronisation.
This model includes digital and analogue inputs, allowing it to be easily integrated into high-fidelity audio and video systems. It has five digital and analogue inputs, including HDMI with support for PCM 2.0 audio, 4K video, and passthrough for HDR, Dolby Vision, Atmos, and DTS formats. It also supports USB and SPDIF optical and RCA inputs, allowing it to handle DSD512 and high-resolution PCM signals.
In addition, the P1 Mini is fully compatible with streaming services such as TIDAL, Qobuz, Roon, Spotify, among others, and comes with an infrared remote control that makes it easy to navigate playlists and adjust volume. Leedh Processing technology ensures lossless volume control, ideal for audiophiles.
Its design features an anodised aluminium chassis with a high-quality finish, and its internal power supply uses a toroidal transformer to minimise noise.
This device is for those looking for a high-end audio control centre that integrates both digital and analogue sources with exceptional sound quality.
Example 1: Broadcast DAC Use the P1 Mini like other LUMIN players with DSD512/PCM384 support, femto clock system, fibre optic network, toroidal power supply and Leedh processor.
Example 2: Hi-Fi Hub Connect all your stereo sources to the P1 Mini and connect a power amplifier to create an impressive music system.
Example 3: 2-channel TV system Replace your AV receiver by connecting your HDMI sources and TV to the P1 Mini. HDMI ARC outputs sound through the main speakers.
The LUMIN P1 Mini combines exceptional technology and flexibility in a compact and elegant housing, perfect for all music and home cinema lovers.
Network playback:
Up to DSD512.
Up to 384 kHz, 16-32-bit, stereo.
Full MQA decoding.
Resampling options: DSD256 and PCM 384kHz for all files.
Digital inputs:
USB: USB Audio Class 2 support, Windows 10 and Mac OSX compatible, with support for DoP 128 and PCM up to 384 kHz, 32-bit.
Optical/SPDIF: PCM up to 192 kHz, 24-bit, and DSD64 (DoP64).
HDMI: Supports PCM 2.0 audio, 4K video passthrough.
Digital outputs:
USB: Supports DSD512 and PCM up to 384 kHz, 32-bit.
BNC SPDIF: PCM up to 192 kHz, 24-bit, and DSD64.
HDMI: 4K video passthrough and support for ARC (Audio Return Channel).
Analogue inputs and outputs:
Stereo RCA analogue input.
Analogue outputs with Dual ESS SABRE32 ES9028Pro DAC chips, fully balanced design and Femto clocking system for precise synchronisation.
Network connection:
Standard Gigabit SFP optical network and Gigabit 1000Base-T Ethernet.
Support for simultaneous connection with RJ45.
Power supply:
Internal linear toroidal transformer and low noise regulator.
Dimensions and construction:
Solid aluminium chassis with black anodised or raw aluminium finish.
Dimensions: 400 mm (W) x 314 mm (D) x 77 mm (H), weight 7 kg.
Transmission and format compatibility:
Streaming protocols: UPnP AV with OpenHome support, Roon Ready, TIDAL Connect, Spotify Connect, and AirPlay.
Supports DSD (DSF, DIFF, DoP), PCM (FLAC, Apple Lossless, WAV, AIFF) and MP3 audio files.
Compatible with MQA and high-resolution streaming services such as TIDAL, Qobuz, Spotify, and TuneIn Radio.
Controls and connectivity:
Compatible with Apple, Android, and Chromebook devices for in-app control.
Digital volume without loss of quality thanks to Leedh processing.
