WiiM Ultra
3.5’ touchscreen streamer.
Chromecast Audio. AirPlay 2. DLNA. Spotify Connect, TIDAL Connect, Amazon Music Casting. 24-bit/192 kHz output
DAC ES9038Q2M and Bluetooth WiFi 32bit 384kHz
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?

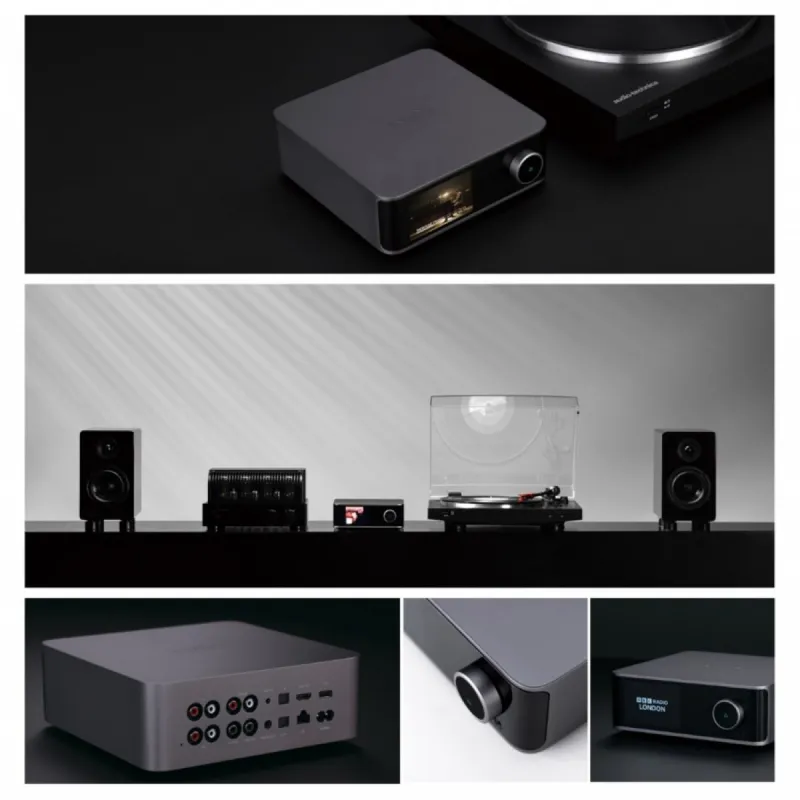

WiiM Ultra: Revolutionizing the Audio Experience
The WiiM Ultra sets a new standard in audio transmitters, designed to deliver an unparalleled listening experience. With its 3.5-inch color touchscreen and a physical navigation button, it offers intuitive control of your music library and favorite streaming services. Its extensive connectivity, including WiFi and Bluetooth, provides quick and easy access to your music stored on a NAS, computer, smartphone, or via streaming services. Additionally, its variety of audio inputs and outputs allows for seamless integration with most audio setups.
Network Player with ES9038Q2M DAC and Bluetooth WiFi 32bit 384kHz
High-Quality Sound
The WiiM Ultra incorporates an ESS ES9038Q2M DAC, supporting high-resolution PCM streams up to 32-bit and 384 kHz, ensuring rich, precise, and transparent sound reproduction. It also includes a headphone amplifier with the TPA6120A2 chip, ideal for those who prefer listening with headphones.
Next-Generation Wireless Connectivity
Equipped with WiFi 6E and Bluetooth 5.3, the WiiM Ultra offers exceptionally stable and high-quality audio streaming. It supports a variety of streaming protocols, including Spotify Connect, TIDAL Connect, AirPlay 2, Google Chromecast Audio (CastLite), Alexa, DLNA, and is in the process of being certified for Roon and Squeezelite, ensuring a seamless and uninterrupted streaming experience.
Integrated Room Correction
The WiiM Ultra includes room correction technology, which accurately measures the acoustics of your room and applies customized corrections to optimize the performance of your audio system according to the environment.
Key Features
- DAC and Headphone Amplifier: Incorporates the ESS ES9038Q2M DAC (32-bit, 384 kHz) along with a TPA6120A2 headphone amplifier for exceptional sound quality.
- Advanced Connectivity: With support for WiFi 6E and Bluetooth 5.3, and dual antennas, it guarantees unmatched audio streaming.

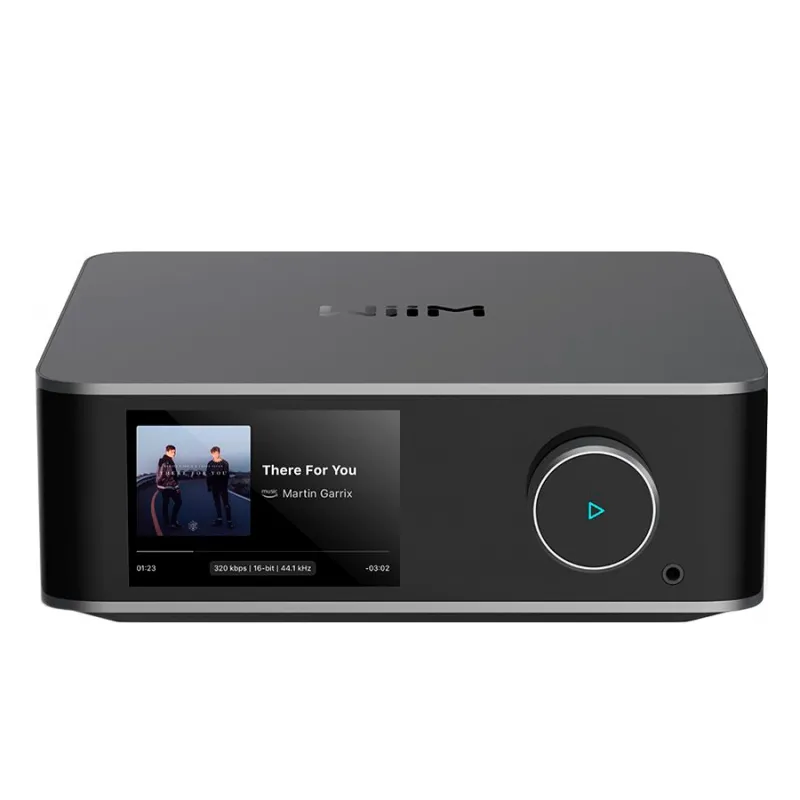

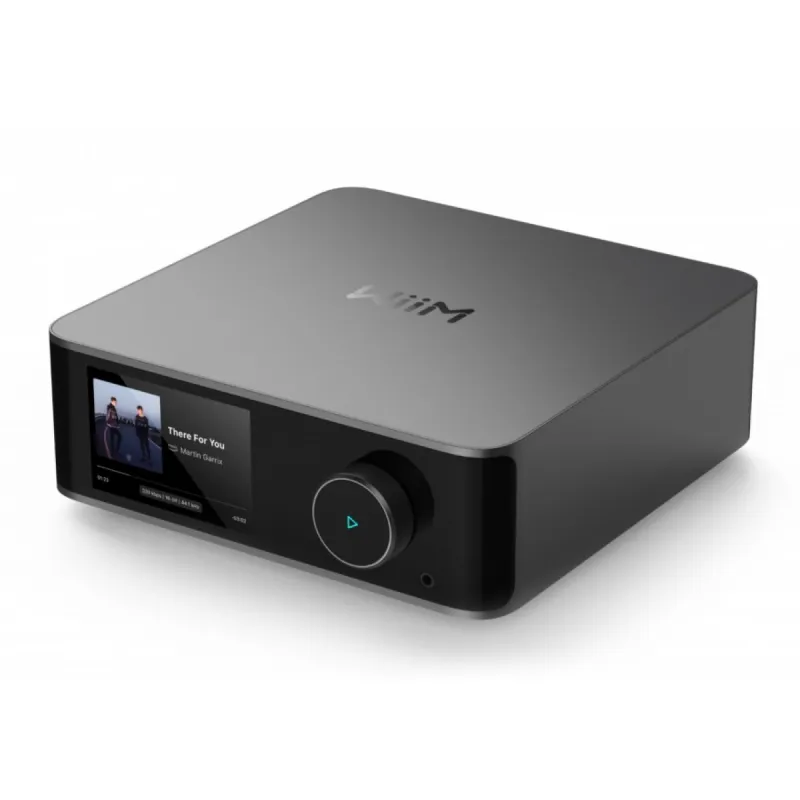

- Premium Design: Elegant aluminum chassis with a 3.5-inch color touchscreen.
- Room Correction: Integrated technology that optimizes audio setup according to room acoustics.
- Streaming Options: Compatible with Spotify Connect, TIDAL, AirPlay 2, Google Chromecast Audio (CastLite), Alexa, DLNA, Roon (pending certification), and Squeezelite.
- High-Resolution Playback: Supports streams up to 24-bit and 192 kHz through various outputs, including USB, optical, coaxial, RCA, and headphones.
Technical Specifications:
- Product Type: Audio transmitter

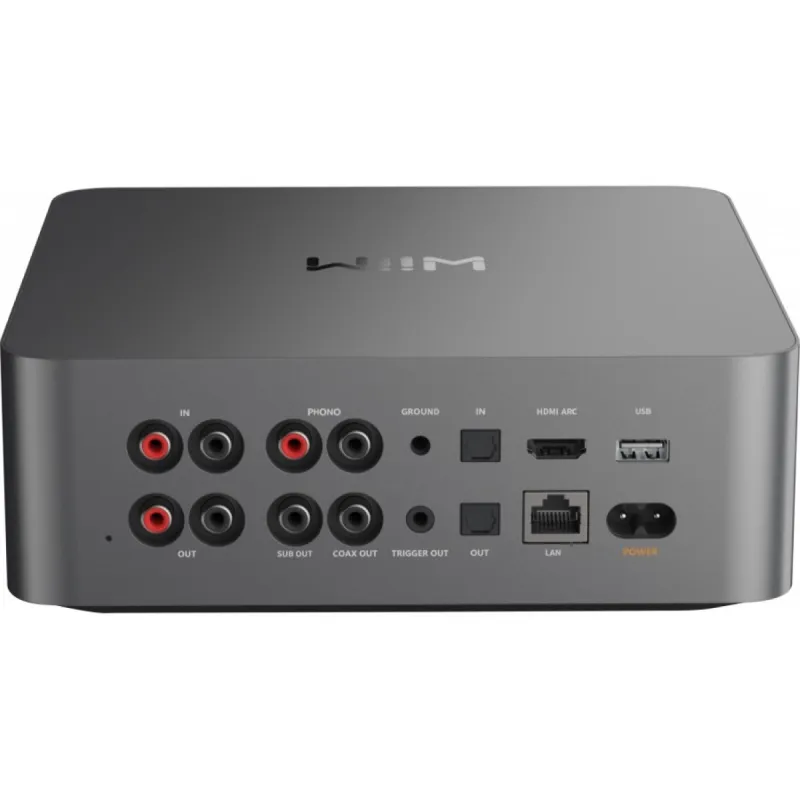

- Inputs:
- 1x Stereo RCA
- 1 Phono input (RCA)
- 1x Optical Toslink
- 1x HDMI ARC
- 1x USB-A
- 1x Ethernet RJ45
- Outputs:
- 1x Stereo RCA
- 1x Coaxial
- 1x Optical Toslink
- 1x Subwoofer output (RCA)
- 1x Headphone output 3.5 mm Jack
- Connectivity:
- WiFi 6E 802.11 g/b/n/ax (2.4GHz, 5GHz, 6GHz)
- Ethernet 10M/100Mbps
- Bluetooth 5.3 BLE/BT LE Audio
- DAC Chip: ESS ES9038Q2M
- Supported Sampling Rates:
- Input: PCM up to 32-bit 384 kHz
- Output: PCM up to 24-bit 192 kHz
- Compatible Bluetooth Codecs: SBC, AAC
- Maximum Output Level (Line Out): 2.1 Vrms
- SNR (Line Out): 121 dB(A)
- THD+N (Line Out): 0.00018% (1kHz)
- FR Curve: ±0.05 dB
- Transmission Mode: Asynchronous USB
- USB Compatibility: Windows 7/8/8.1/10/11 (driver required), MacOSX10.6+, Linux
- Equalizer: 10-band graphic, 10-band parametric, independently configurable for each source
- Subwoofer Output: Bass management with adjustable latency, phase, level, and filter
- Display: 3.5-inch touchscreen
- Chassis Material: Aluminum
- Dimensions: 205 x 205 x 73 mm
- Color: Gray
Package Contents
- 1x WiiM Ultra
- 1x C7 Power Cable
- 1x Remote Control
The WiiM Ultra is the ideal device for audiophiles seeking exceptional audio performance and full integration into their current sound setup, all in an elegant and modern design.
