CAYIN iDAC-6MK2
Stationary DAC, new iDAC-6 generation.
Coaxial, AES-EBU, optical and USB-B inputs for PC
Balanced xlr and unbalanced rca output
USB connection specifications: 32 bits / 768 khz, dsd512
Specifications rest inputs: 24 bits / 192 khz
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
Cayin iDAC-6MK2: The Second Generation of a Reliable Choice
Innovations and Improvements
The Cayin iDAC-6MK2 arrives to replace the first-generation iDAC, introducing significant improvements that ensure the audio quality your music deserves. With a new DAC, a tube amplification stage, and the ability to decode DSD512 and PCM, this stationary DAC is the ideal choice for those seeking exceptional performance.
Renewed Core
The iDAC-6MK2 incorporates the new 32-bit, 8-channel ES9028Pro DAC, demanded by the most discerning audiophiles. This chip supports high-resolution formats like DSD512 and PCM 768kHz/32Bit, achieving a dynamic range of 129dB. These specifications allow the iDAC-6MK2 to offer superior performance, complemented by a dedicated high-quality amplifier.
Tube Amplification
In the amplification stage, the iDAC-6MK2 uses four 6H16B tubes, providing superior amplification for both standard and balanced outputs. This design is ideal for reproducing the most demanding audio formats. The device can function as a standard DAC through its line output or as a dedicated preamplifier. In standard mode, it reaches 2V for normal output and 4.4V for balanced XLR output. In preamplifier mode, it can act as a speaker amplifier, reaching up to 7V in normal output and 13V in balanced XLR output.

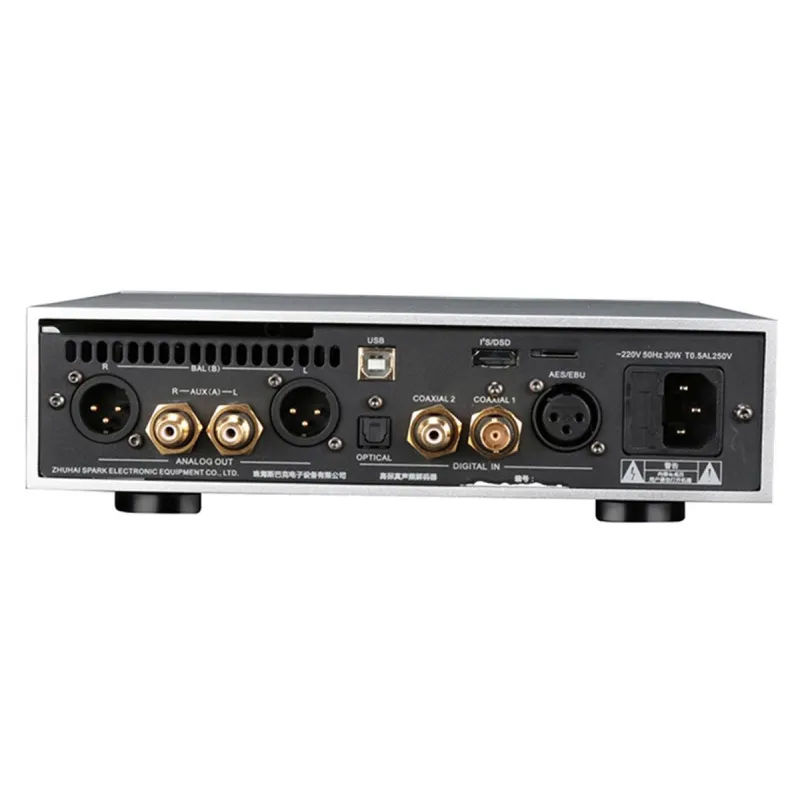

Versatile Connectivity
The Cayin iDAC-6MK2 offers a wide variety of digital connections to meet all user needs. The connections include:
- Optical
- USB Audio
- Coaxial RCA
- Coaxial BNC
- I2S
- AES/EBU
- Power supply
- Analog RCA
- Balanced XLR connection
Premium Build Quality

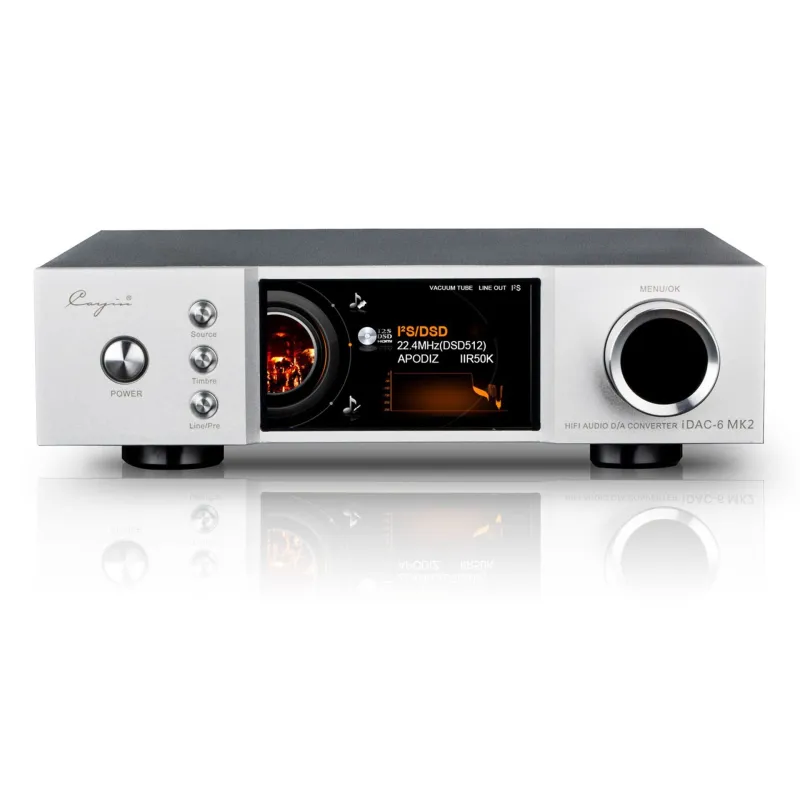

The iDAC-6MK2 stands out for its enhanced build quality. It is manufactured using a CNC machined aluminum process, which not only adds elegance and visual coherence but also reduces potential sound interference. Additionally, it features a new 3.9" AMOLED display, allowing users to easily identify the DAC's status and manage the interface intuitively.
Key Features
- New 32-bit, 8-channel ES9028Pro DAC
- Capability to decode DSD512 and PCM 768kHz/32Bit
- Dynamic range of 129dB
- Tube amplification with four 6H16B tubes
- Multiple output modes: standard DAC and preamplifier
- Six digital inputs and various analog connections
- CNC machined aluminum construction
- 3.9" AMOLED display
The Cayin iDAC-6MK2 is the perfect choice for those seeking a high-quality, high-performance stationary DAC. With its improved design and advanced features, this device guarantees an unparalleled audio experience.
General Specifications
DAC: ES9028PRO
Inputs: USB AUDIO, I2S, AES/EBU, BNC Coaxial, RCA Coaxial, Optical
Outputs: RCA and XLR
Material: aluminium

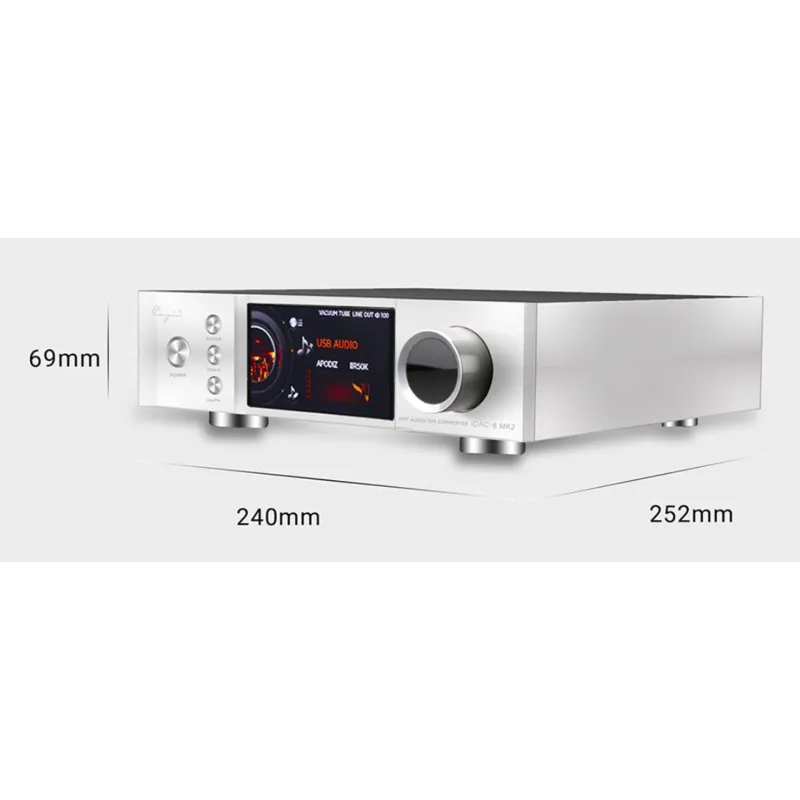

Dimensions: 240mmx252mmx69mm
Weight: 3.6kg
Digital input specifications
USB Audio: PCM 16-32Bit, 44.1kHz-768kHz / DSD64,DSD512 (native mode), DSD64,DSD256 (DoP mode) / Windows -with driver v4.47.0- and macOS operating systems. Operating mode Asynchronous USB Audio Class 2.0
I2S: PCM 16-32Bit, 441kHz-768kHz / DSD64-DSD512
AES/EBU: PCM 16-24bit, 44.1KhZ-192kHz / DSD64 (DoP Mode) - Output Impedance 110 Ohms
Coaxial (BNC/RCA): PCM 16bit-24bit, 44.1kHz-192kHz / DSD64 (Dop Mode) / Input Level 0.5V@75Ohms / Input Impedance 75Ohms
Optical: PCM 16bit-24bit, 44.1kHz-176.4kHz / DSD64 (DoP Mode)
Analogue Pre Out specifications
Standard output in solid state mode:
Nominal output level: 7V+7V(47kOhms)
Frequency response: 20-50kHz
THD+N: 0.002% THD+N: 0.002% THD+N: 0.002
Dynamic range: >122dB
Signal to noise ratio: >122dB
Channel separation: >92dB
Output impedance: 10 Ohms
Standard output in tube mode:
Nominal output level: 6V+6V (47kOhms)
Frequency response: 20-50kHz
THD+N: 0.8%
Dynamic range: >122dB
Signal to noise ratio: >115dB
Channel separation: >92dB
Output impedance: 300 Ohms
Specifications balanced output
Balanced output in solid state mode:
Nominal output level: 13V+13V (47kOhms)
Frequency response: 20-50kHz
THD+N: 0.002% THD+N: 0.002% DYNAMIC RANGE: >122DB
Dynamic range: >122dB
Signal to noise ratio: >122dB
Channel separation: >92dB
Output impedance: 20 Ohms
Balanced output in tube mode:
Nominal output level: 10V+10V (47kOhms)
Frequency response: 20-50kHz
THD+N: 0.8%
Dynamic range: >121dB
Signal to noise ratio: >121dB
Channel separation: >92dB
Output impedance: 1000 Ohms
Analogue output specifications line output circuit
Standard output in solid state mode:
Nominal output level: 2.2+2.2(47kOhms)
Frequency response: 20-50kHz
THD+N: 0.003% THD+N: 0.003% DYNAMIC RANGE: >115DB
Dynamic range: >115dB
Signal to noise ratio: >115dB
Channel separation: >92dB
Output impedance: 10 Ohms
Standard output in tube mode:
Nominal Output Level: 2.2V+2.2V (47kOhms)
Frequency response: 20-50kHz
THD+N: 0.8%
Dynamic range: >110dB
Signal to noise ratio: >110dB
Channel separation: >92dB
Output impedance: 300 Ohms
Specifications balanced output
Balanced output in solid state mode:
Nominal output level: 4.4V+4.4V (47kOhms)
Frequency response: 20-50kHz
THD+N: 0.003% THD+N: 0.003% DYNAMIC RANGE: >121DB
Dynamic range: >121dB
Signal to noise ratio: >121dB
Channel separation: >92dB
Output impedance: 20 Ohms
Balanced output in tube mode:
Nominal Output Level: 4.4V+4.4V (47kOhms)
Frequency response: 20-50kHz
THD+N: <0.8%
Dynamic range: >121dB
Signal to noise ratio: >120dB
Channel separation: >92dB
Output impedance: 1000 Ohms
