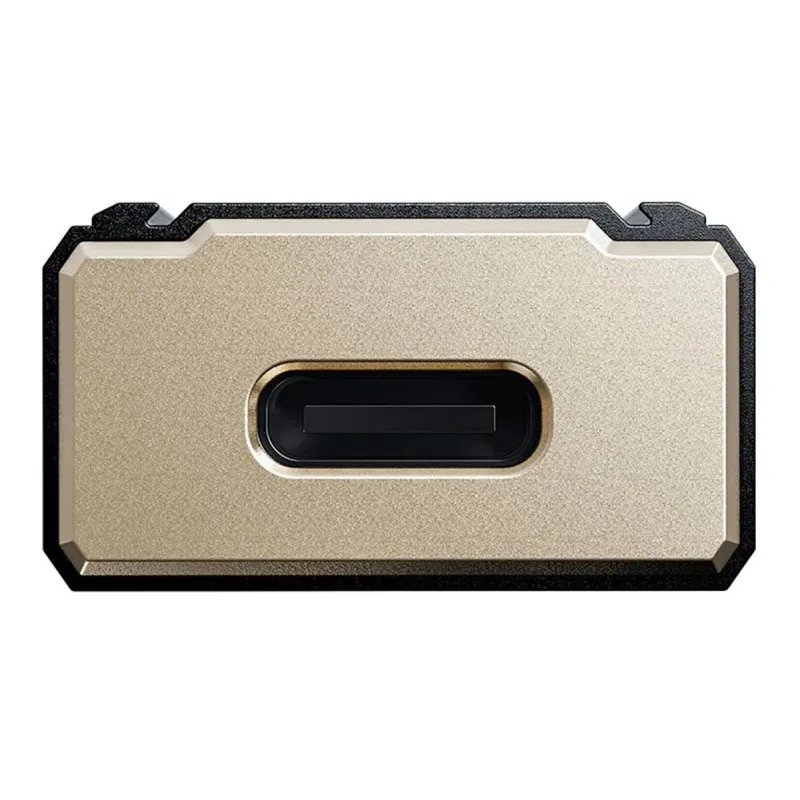

FIIO KA5
DAC/Amp dongle with balanced output.
DAC: Dual CS43198, supports 768kHz/32bit and DSD256
Connection: USB-C, OLED display
Output:
Single-Ended: 122mW (32Ω)
Balanced: 265mW (32Ω)
Performance: SNR ≥124dB, THD+N <0.00037%
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
FiiO KA5: Taking Your Portable Audio to the Next Level
The FiiO KA5 is the brand’s latest ultra-portable DAC/Amp, designed to deliver outstanding performance in a compact form. With an output power of 265mW + 265mW via its balanced output and an innovative OLED display, this device redefines the capabilities of an audio dongle. Compatible with multiple platforms, it is the perfect solution for audiophiles on the go.
Key features
- Dual Cirrus Logic CS43198 DACs for detailed and efficient audio.
- PCM decoding up to 32-bit/768 kHz and DSD256, ensuring superior playback quality.
- OLED display for easy control and intuitive navigation.
- Output power of 265mW + 265mW through balanced output.
- Premium metallic design with tempered glass on the front and back.
- FiiO Control app for complete customization.
- Multi-platform compatibility: smartphones, PCs, tablets, consoles, and more.
Flagship dual DACs
The KA5 uses two Cirrus Logic CS43198 chips, renowned for their ability to deliver clean, detailed audio with a versatile sound profile.
It supports PCM and DSD256, allowing you to experience every nuance of your favorite music with advanced decoding. It is compatible with a variety of devices, from smartphones to computers and consoles.
High-quality components
The KA5 features a 6-layer gold-plated PCB and low-noise operational amplifiers, ensuring robust and distortion-free sound.

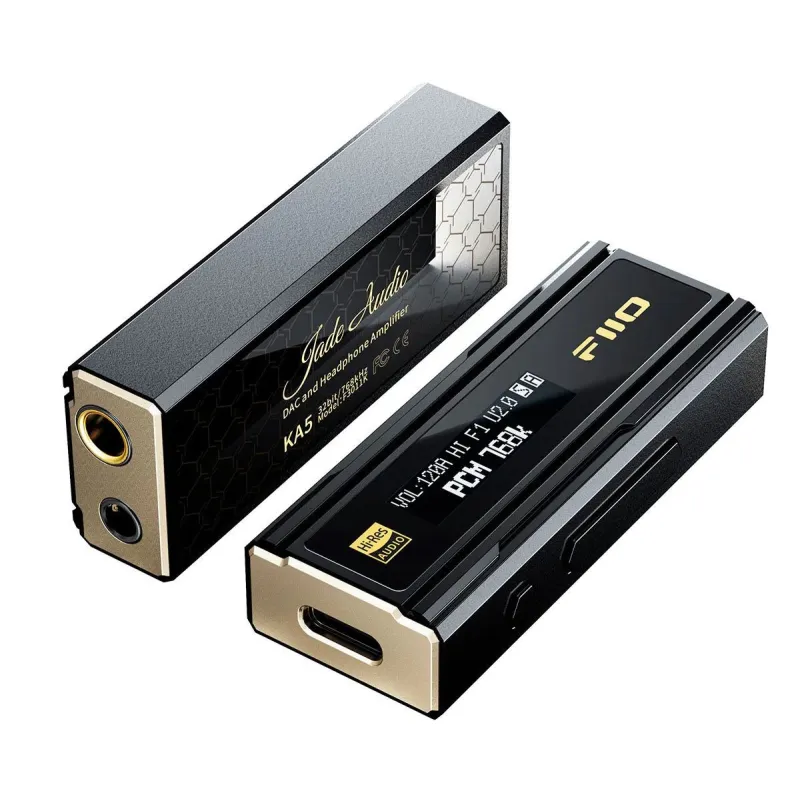

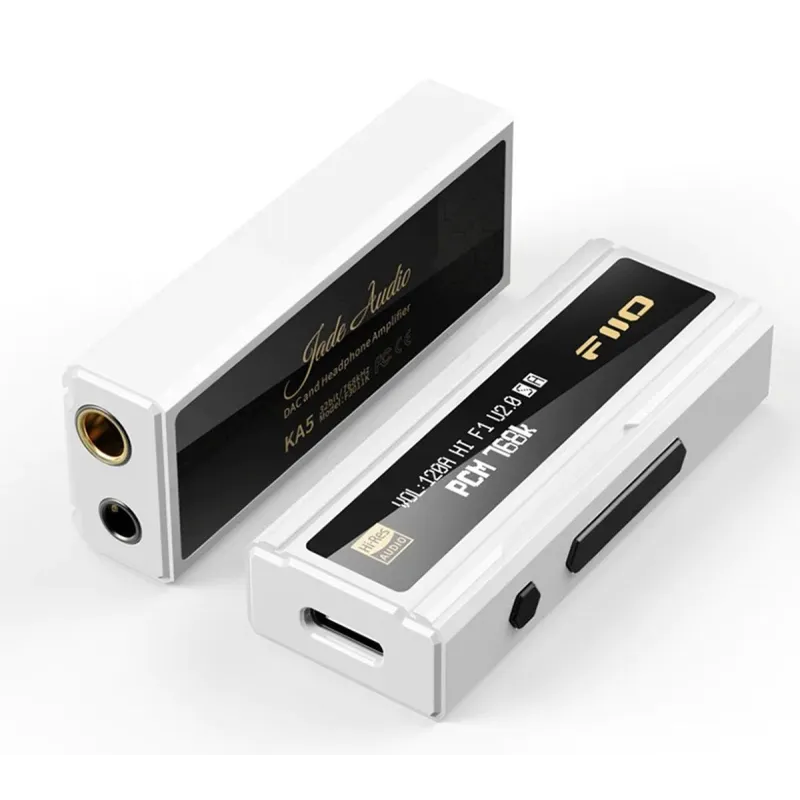

Robust and functional design
With a bold and compact design, the KA5 is both an aesthetic and functional masterpiece.
Premium metallic build provides durability and a refined finish.
Tempered glass on the front and back enhances its sophisticated appearance.

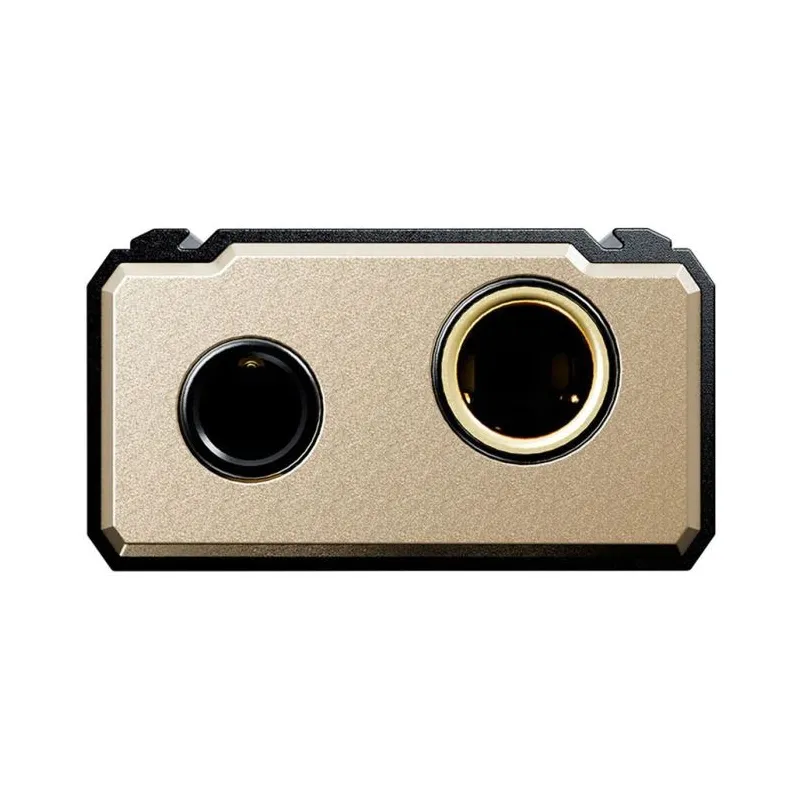

Dual outputs support both balanced and unbalanced connections.

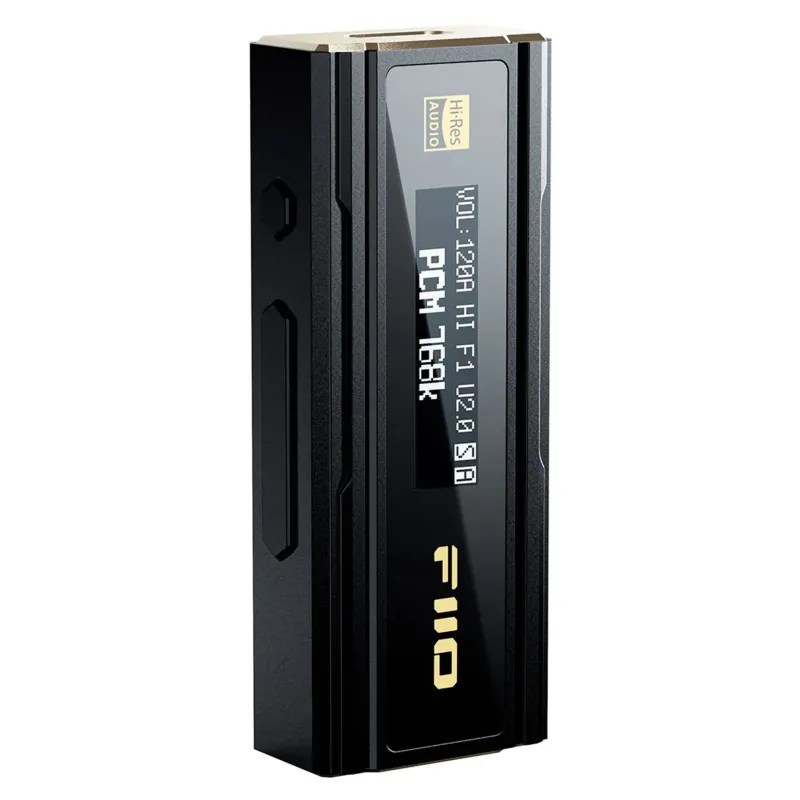

OLED display and intuitive controls
The integrated OLED display, along with physical buttons, allows for effortless navigation and configuration.
An MCU processor smoothly manages the KA5’s features. Users can easily configure filters, gain, channel balance, and more.
Immersive gaming mode
The UAC 1.0 mode allows the KA5 to connect to consoles such as the Nintendo Switch, delivering rich and detailed sound effects for a more immersive gaming experience.
Multi-platform compatibility
The KA5’s detachable cable design simplifies switching between devices. It includes type-C and Lightning OTG adapter cables, ensuring compatibility without additional accessories.
Possible uses:
- Smartphones (Android and iOS).
- Tablets.
- PCs and laptops.
- Consoles such as Nintendo Switch.
- SPDIF connection to external decoders.
Included accessories
- USB-A male to Type-C female adapter.
- Type-C to Type-C OTG cable.
- Type-C to Lightning OTG cable.
- User manual.
- Warranty card.
Small but powerful
Despite its compact size, the FiiO KA5 offers advanced features such as:
Adjustable gain (high and low).
Five selectable filters.
L/R channel balance.
Customizable screen and settings.
Discover the FiiO KA5, a compact dongle offering a superior level of portable audio, designed to accompany you wherever you go.
Specifications
DAC: CS43198*2
Supported formats: 768kHz/32bit, DSD256
USB type: Type-C USB2.0
Dimensions: ~56.3 x 22 x 12mm
Weight: ~19 g (without cable)
Display: OLED screen
Output power 1: L+R ≥122mW+122mW (32Ω single-ended/THD+N <1%)
Output power 2: L+R ≥265mW+265mW (32Ω balanced/THD+N <1%)
SNR 1: ≥124dB (32Ω/A-weighted/single-ended)
SNR 2: ≥128dB (32Ω/A-weighted/balanced)
Noise level: PO <1.6 μV (A-weighted); BAL <1.8 μV (A-weighted)
Output impedance 1: <0.3Ω (32Ω load/single-ended)
Output impedance 2: <0.35Ω (32Ω load/balanced)
THD+N: <0.00037% (1kHz/32Ω/single-ended)
THD+N: <0.00037% (1kHz/-6dB@32Ω/balanced)
