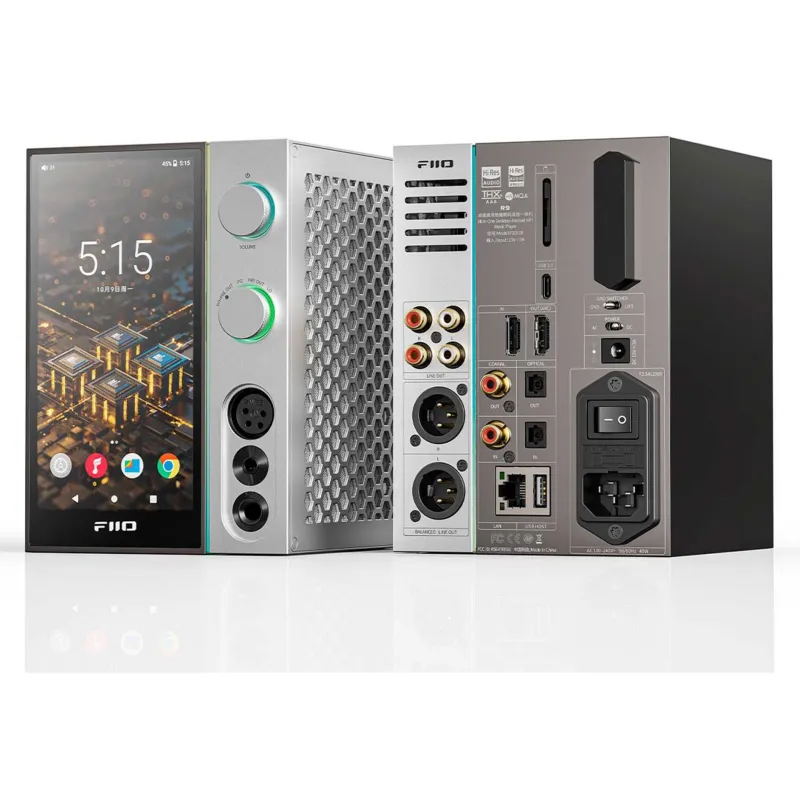

FiiO R9, the powerful headphone amplifier has arrived

The FiiO R9 is the latest release from FiiO, representing the ultimate evolution in audio technology following the success of the FiiO R7.

This all-in-one device incorporates streaming, decoding, headphone amplification, Hi-Res player and pre-amplifier functions, offering unrivalled versatility. With a wide range of inputs and outputs, combined with 10 operating modes, the FiiO R9 guarantees adaptability in any situation. Equipped with Android operating system and a 6" HD display, this device gives you a smooth and immersive user experience.

Compared to its predecessor, the FiiO R9 features both internal and external improvements, taking your HiFi audio experience to the next level.

Next generation THX AAA 788+ amplification

The FiiO R9 features an 8-channel THX AAA 788+ headphone amplifier design, offering exceptional transient performance thanks to its parallel configuration and optimised heat sinks. With an output power of 7,300 mW per channel at 32 ohms, the FiiO R9 outperforms its predecessor by 102%.

Dual ES9038PRO 8-Channel DACs

This device employs two ES9038PRO DACs, one for each channel, delivering accurate and detailed audio reproduction. With a total harmonic distortion of -122 dB and a signal-to-noise ratio of 132 dB, the FiiO R9 guarantees exceptional sound quality.

Optimised circuit design

The FiiO R9 features a carefully crafted circuit design, with separate analogue and digital parts to avoid interference. In addition, its unique internal structure ensures excellent heat dissipation and a clean, accurate audio signal.

Advanced connectivity

Equipped with the Qualcomm QCC5125, the FiiO R9 supports a wide range of Bluetooth codecs, including LDAC, aptX Adaptive, aptX LL, aptX HD, aptX, AAC and SBC. In addition, its five-stage audio architecture and 5 gain levels allow you to customise your listening experience according to your preferences.

Robust power supply

The FiiO R9 features a high-efficiency, low-interference power supply, ensuring a stable power supply at all times. In addition, its modular design allows for easy installation and maintenance.

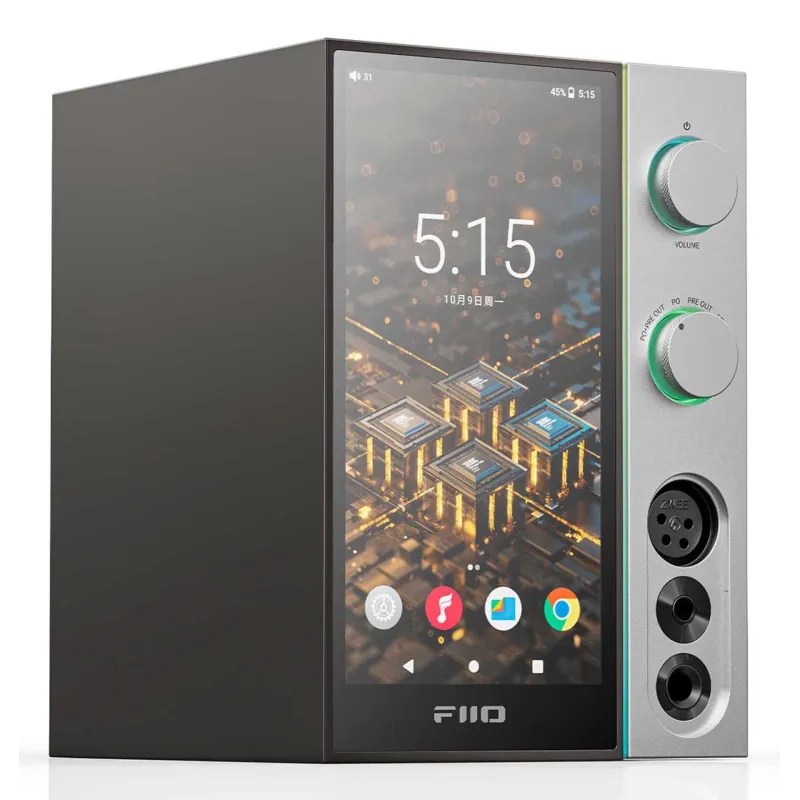

HD display and Android operating system

With a 6" HD display and an open Android operating system, the FiiO R9 offers an intuitive and customisable user experience. With access to a wide variety of streaming music applications and other services, this device adapts to your individual needs.

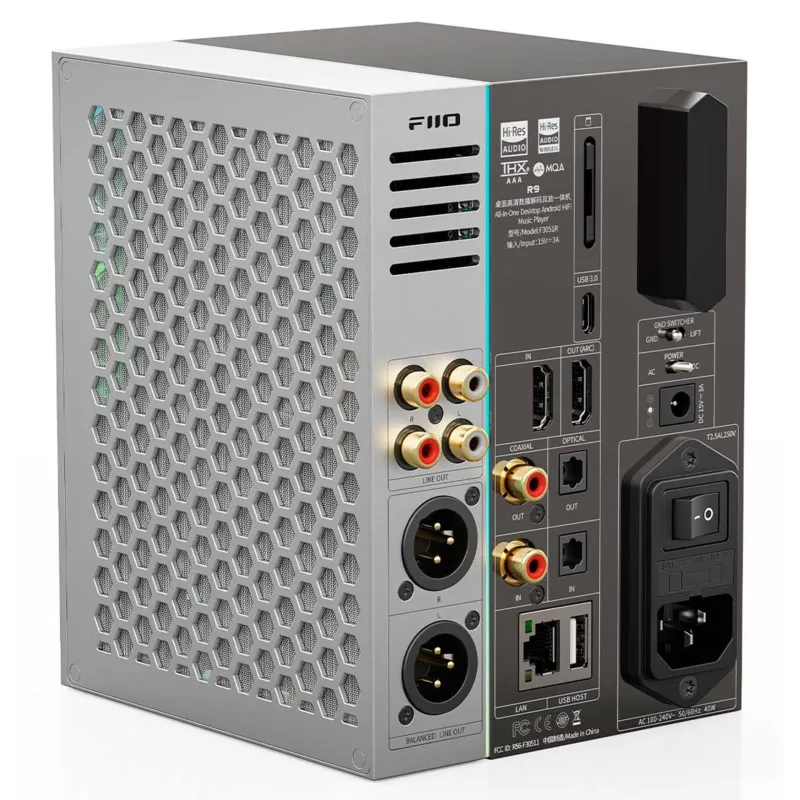

Versatile connections

With multiple inputs and outputs, including HDMI, USB, optical, coaxial and RCA, the FiiO R9 is compatible with a wide range of audio devices and systems. Plus, its modular design allows for easy expansion and customisation.

Flexible operating modes

With 10 different operating modes, including Android, Pure Tone, USB DAC, Bluetooth receiver and AirPlay, the FiiO R9 adapts to any environment and situation. Whether you're listening to music at home or on the move, this device delivers the best possible audio quality.

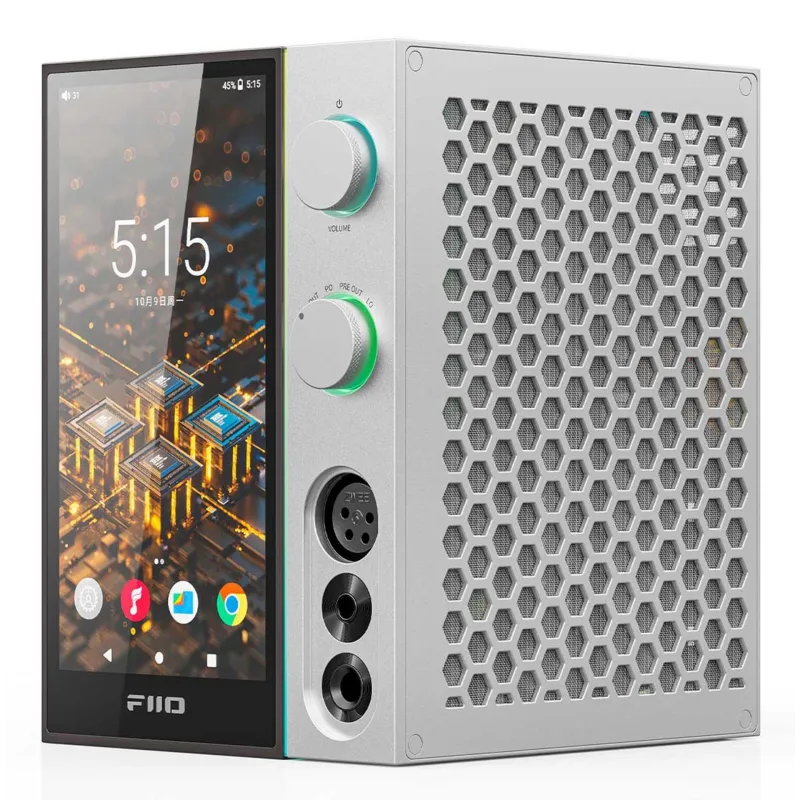

Premium design

With a sleek metallic colour scheme and robust construction, the FiiO R9 is a true flagship in terms of design and performance. Compatible with a variety of optional accessories, including a Bluetooth remote control and a mechanical keyboard, this device allows you to customise your listening experience to your individual preferences.

What's in the box

The FiiO R9 comes with everything you need to start enjoying your favourite music:

- AC power cable

- Table stand

- Double-sided silicone tape

- FiiO RM3 Bluetooth remote control

- microSD card holder

- USB cable

- Headphone adapter

- Warranty card

- Cleaning cloth

- Dust cover cap

- Fuse

- Pre-loaded protective films.

Technical specifications:

Processor: Qualcomm Snapdragon 660

DAC converters: 2 x ES9038Pro

Amplifier: THX AAA 788+ 8-channel amplifier

USB port: XU316

Bluetooth: WCN3980 (transmit) / QCC5125 (receive)

RAM memory: 4 GB

ROM memory: 64 GB

Memory expansion: MicroSD card, supports up to 2 TB

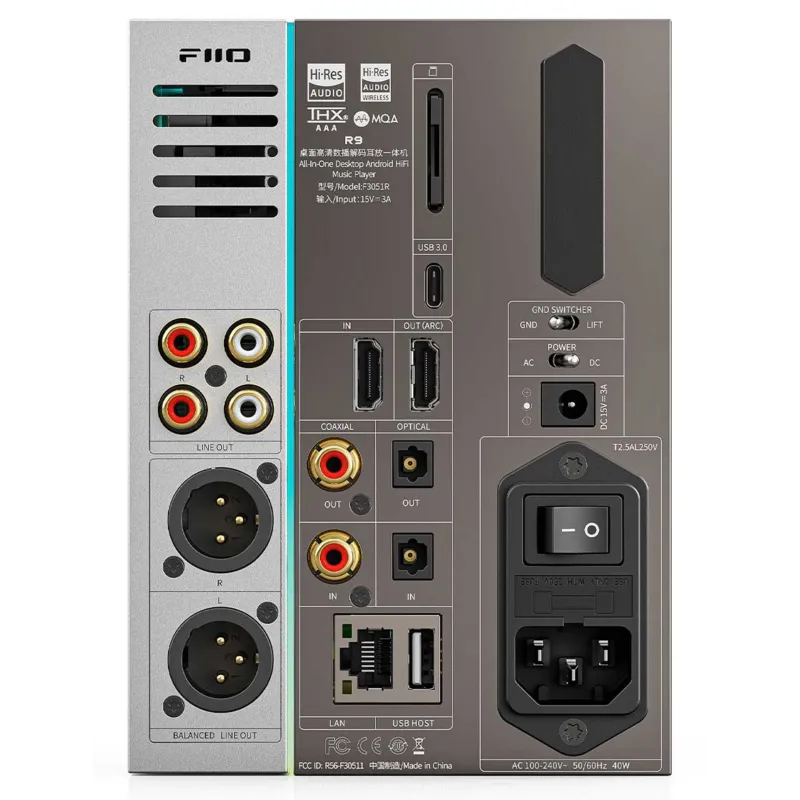

Ports and Connectivity:

- DC Power Input: Φ6.2 mm DC port

- Headphone Output:

   - Single Ended: 1 x 6.35 mm jack port.

   - Balanced: 1 x 4.4 mm minijack port, 1 x 4-pin XLR port

- Line Output:

   - Single Ended: 1 x RCA pair

   - Balanced: 1 x 3-pin XLR Port

- Digital Inputs: 1 x optical, 1 x coaxial, 1 x USB3.0 Type C, 1 x USB Type A, 1 x HDMI ARC

- Digital Outputs: 1 x optical, 1 x coaxial

- Ethernet: 100Mbits/s RJ45

- Wifi: 802.11 a/b/g/n (2.4 GHz/5 GHz)

WiFi Services: DLNA, AirPlay, WiFi song streaming, Roon Ready

Bluetooth 5.0 Streaming Codecs: AAC/SBC/aptX/aptX HD/LDAC/LHDC

Bluetooth 5.1 Streaming Codecs: SBC/AAC/aptx/aptx-LL/aptx-HD/aptx-adaptable/LDAC

MQA: Full MQA compatible decoding

FiiO Link: WiFi and Bluetooth control for Android, Bluetooth control for iOS

Audio Inputs and Outputs Specifications:

- See frequency response, output power, signal-to-noise ratio, total harmonic distortion and other specific details for each type of output and input.

Power Supply: VDC 15V / ≥3 A; 100-240 VAC ~ 50/60 Hz compatible.

Dimensions and Weight: 115 mm (H) x 127 mm (W) x 160 mm (D); 2271 g
