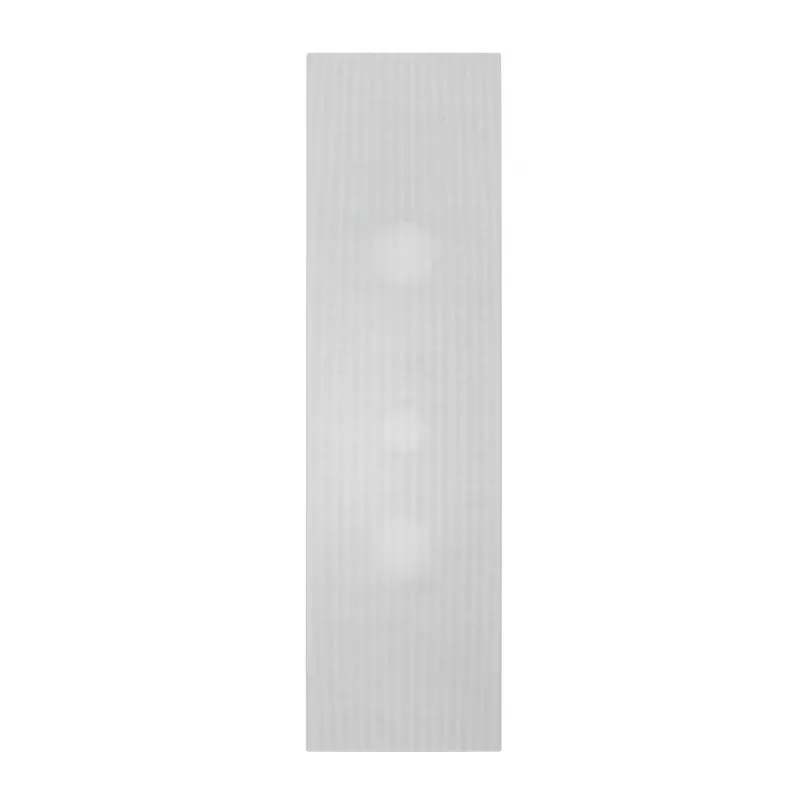

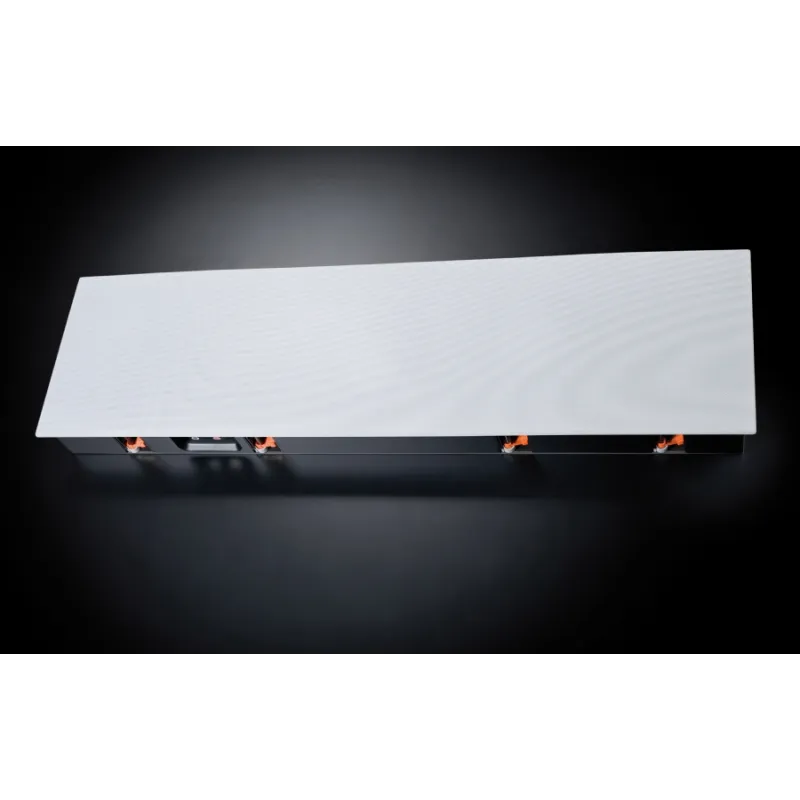

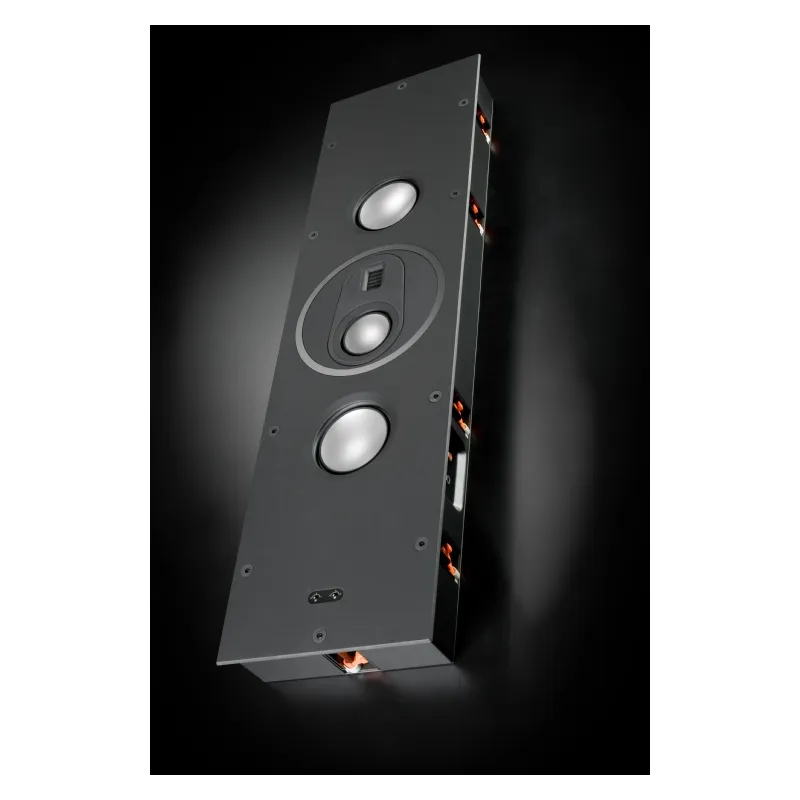

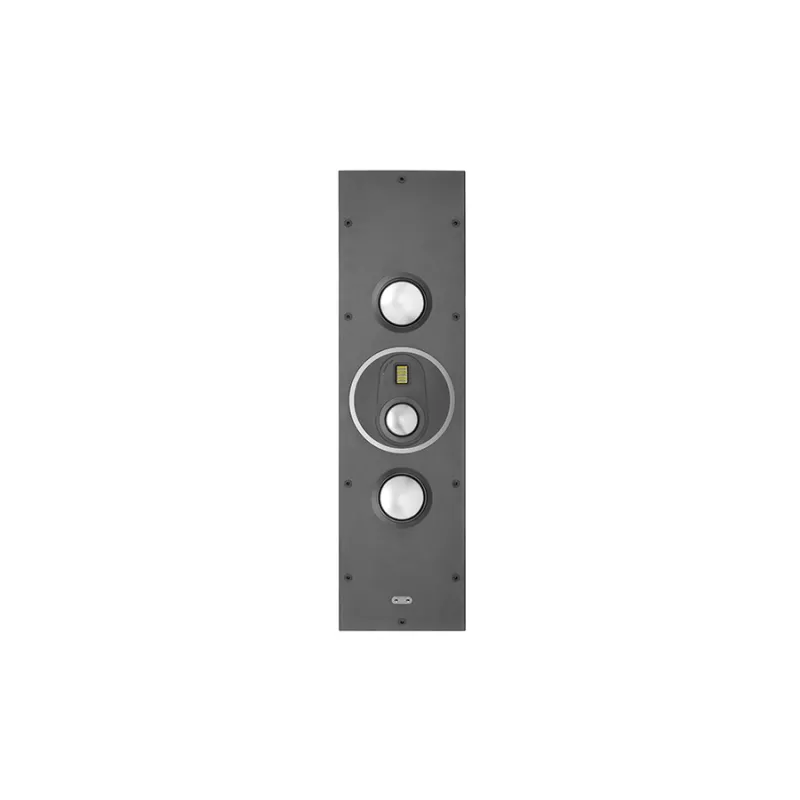

MONITOR AUDIO Platinum In-Wall II 3G
3-way / 4-driver in-wall speaker.
2 RDT II woofers, 165 mm, 102 mm midrange, MPD tweeter
Watertight MDF + steel enclosure, Tri-Grip mounting
Vertical or horizontal installation (LCR)
Response: 52 Hz – 100 kHz
Sensitivity: 90 dB, Power: 200 W RMS
Impedance: 4 Ω
Unit price.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
Monitor Audio Platinum In-Wall II: Reference In-Wall Loudspeaker for Home Cinema
The Platinum In-Wall II is Monitor Audio’s flagship in-wall loudspeaker, purpose-built for custom high-end home cinema installations where dynamics, scale, and natural sound reproduction are paramount. Its three-way, four-driver architecture delivers a wide, coherent, and highly precise soundstage — comparable to that of the brand’s finest floorstanding speakers — while maintaining a discreet in-wall integration.
Thanks to its flexible vertical or horizontal installation, the Platinum In-Wall II is ideal for use as LCR channels in multichannel systems, ensuring perfect tonal consistency across the front soundstage.

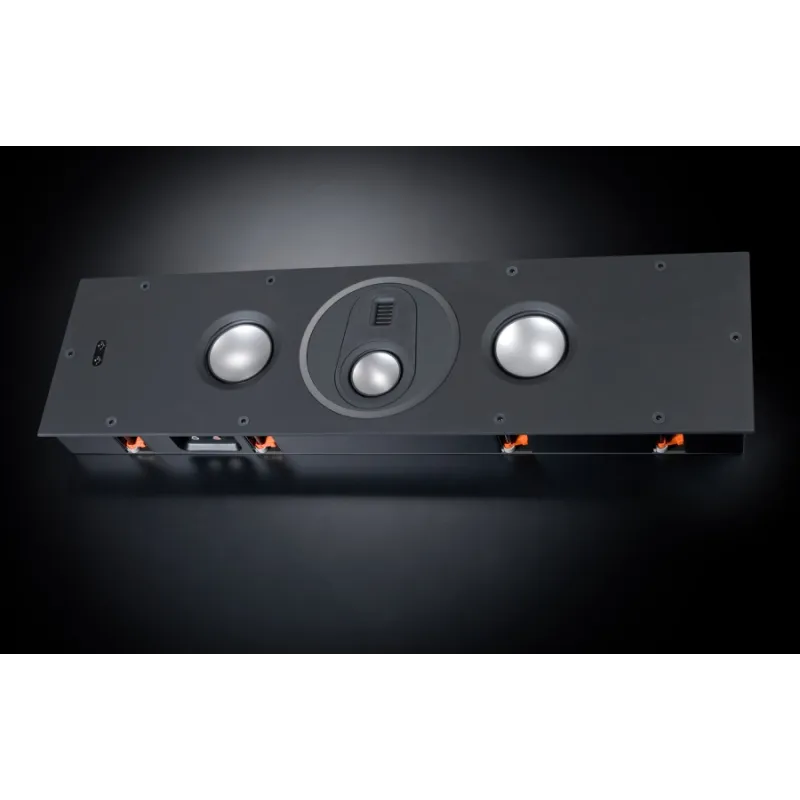

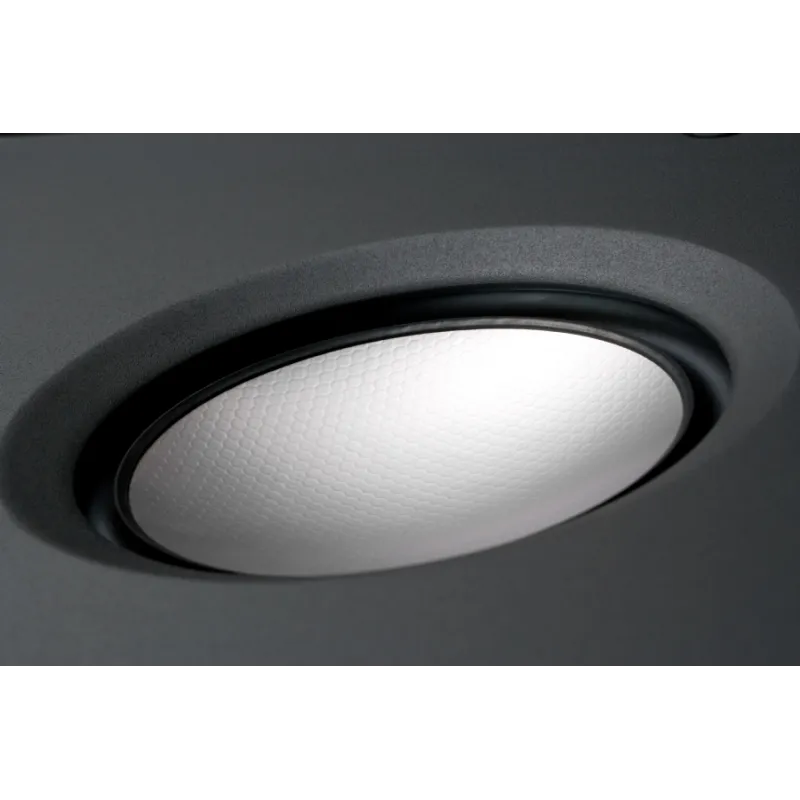

The driver configuration includes dual 6.5" RDT II woofers, a 4" RDT II midrange driver, and a MPD (Micro Pleated Diaphragm) high-frequency transducer, specifically engineered for the Platinum II series. Exclusive innovations such as DCF (Dynamic Coupling Filter) technology and high-efficiency underhung flat-wound voice coils guarantee exceptional dynamics, reduced distortion, and natural musicality.
A sealed 25 mm MDF enclosure with steel back plate and internal bracing ensures maximum rigidity, eliminating unwanted resonances while enhancing low-frequency control. Combining engineering excellence, timeless design, and discreet installation, the Platinum In-Wall II represents the pinnacle of British architectural audio.
Sold individually.
Key Features
Reference-grade in-wall loudspeaker for dedicated home cinema installations.
3-way / 4-driver configuration:
• 2 x 6.5" RDT II woofers
• 1 x 4" RDT II midrange

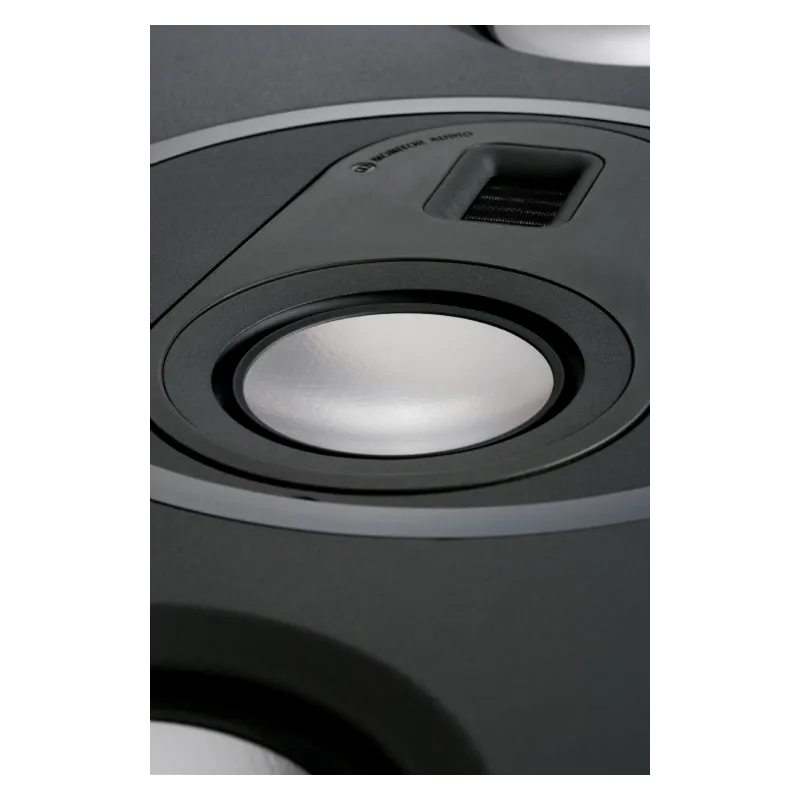

• 1 x MPD tweeter (Micro Pleated Diaphragm)
MPD tweeter designed exclusively for the Platinum II series.
DCF technology for smoother, more natural sound.
Underhung flat-wound voice coils for higher efficiency, dynamics, and lower distortion.
Rigid 25 mm MDF sealed cabinet with steel back plate and internal bracing.
Tri-Grip fixing system for fast, secure, and professional installation.

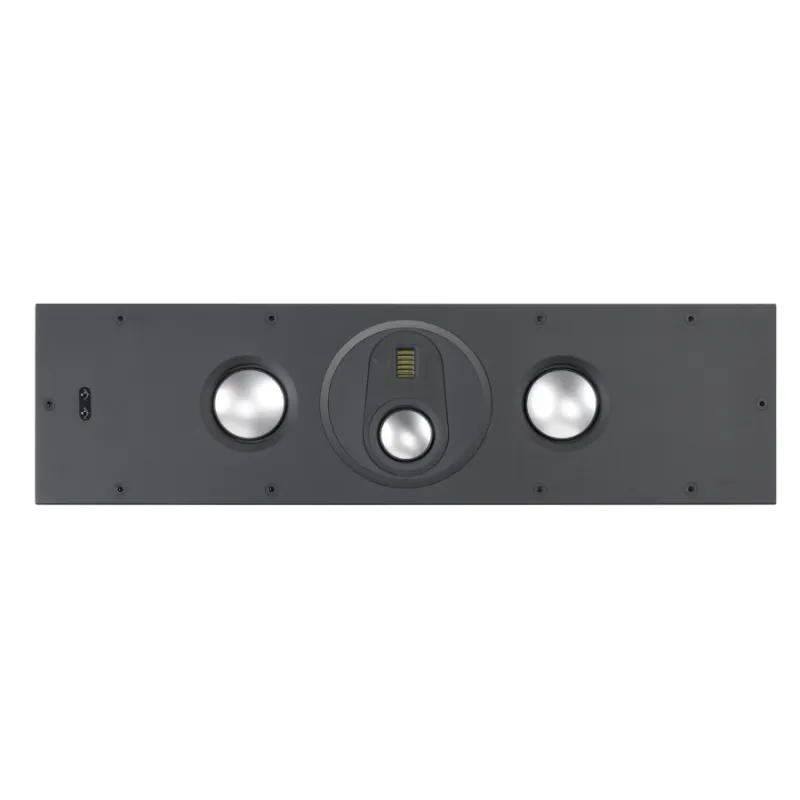

Can be mounted vertically or horizontally – perfect for LCR configurations.
Delivers performance on par with Platinum floorstanding speakers in an architectural format.
Technical Specifications
System type: 3-way, 4-driver in-wall loudspeaker
Drivers:
• 2 x 6.5" (165 mm) RDT II woofers
• 1 x 4" (102 mm) RDT II midrange
• 1 x MPD high-frequency transducer
Frequency response (-6 dB): 52 Hz – 100,000 Hz
Sensitivity (1W/1m): 90 dB
Maximum SPL: 117 dBA (pair)
Nominal impedance: 4 ohms (min. 3.7 ohms @ 2.8 kHz)
Power handling (RMS): 200 W
Recommended amplifier power: 100 – 200 W
Crossover frequencies:
• LF/MF: 700 Hz (12 dB/octave)
• MF/HF: 4.1 kHz (18 dB/octave)
Enclosure design: Sealed, 25 mm MDF with steel back plate
Fixing system: 10 x Tri-Grip clamps
Dimensions (H x W x D): 1205 x 330 x 102 mm
Mounting depth: 97.5 mm
Weight: 27 kg (each)
