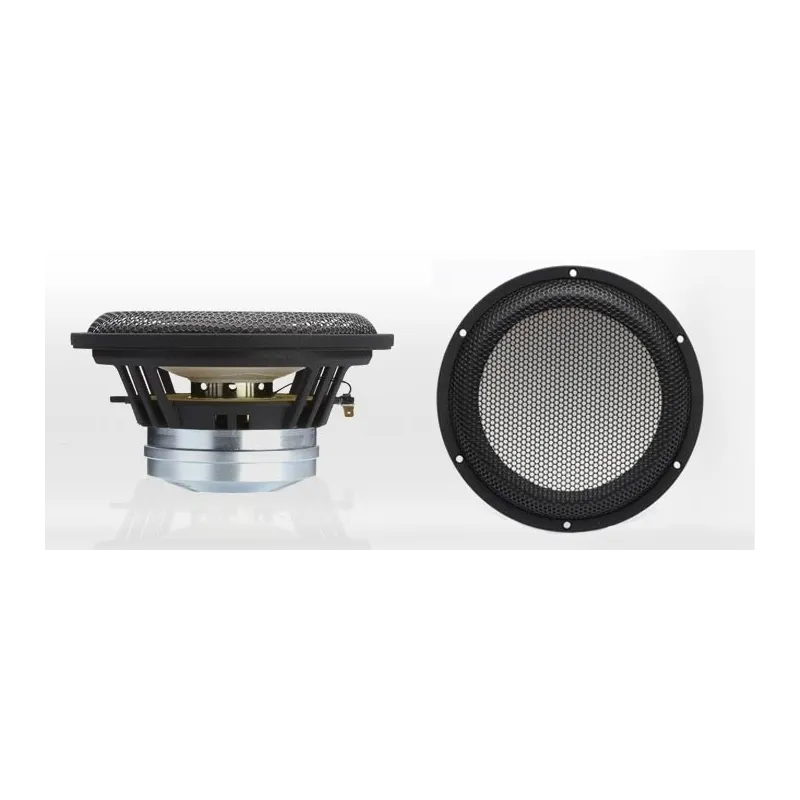

ACCUTON C220-6-222

8.5’ mid-bass speaker with high efficiency

Application: 2- or 3-way designs

Coil: 55 mm titanium for high resolution in the midrange

Magnet: 120 mm neodymium system for low distortion

€1,167.77

Have you seen it cheaper? Contact us >

Order to factory (60 days)

bloques info producto

Bank Transfer (3% OFF)

If you make the payment via bank transfer, you will receive an extra 3% discount on your order.

Individual Consultancy

Contact us without any obligation.

957460112
info@audiohum.com

Need to upgrade your equipment?

Would you be interested in trading in a device when purchasing this item?

Renovar equipo




Accuton C220-6-222. Bass-Midrange.

Highlights:

  • 8.5 inch bass-midrange with high efficiency for 2 or 3-way designs
  • large sized voice coil with 55mm titanium voice coil former for high midrange resolution
  • big, underhung 120mm Neodymium magnet system for very low distortion

Vented box design parameters:

  • Vb: 29L, Fres: 23Hz with passive radiator, -12dB @ 25Hz, Q: 0.47 (optimal A/V alignment)
  • Vb: 24L, Port diameter: 70mm, Length: 200mm, Fres: 43.5Hz, F-3dB: 47Hz, Q: 0.50
  • Vb: 36L, Port diameter: 70mm, Length: 145mm, Fres: 40Hz, F-3dB: 39Hz, Q: 0.43 (extended bass)

Closed Box design parameters:

  • Vb: 11.5L, -12dB @ 40Hz, F-3dB: 74Hz, Q: 0.71 (typical)
  • Vb: 24L, -9dB @ 40Hz, F-3dB: 75Hz, Q: 0.50 (extended bass)
