6.5" (18 cm) Discovery Series midwoofer.
NRSC-coated fiberglass cone: minimal resonances
Sensitivity: 89.4 dB, nominal impedance: 8 Ω
Die-cast aluminum chassis: rigidity and low distortion
SBR rubber suspension: smooth and controlled response
Fs: 54 Hz, Qts: 0.45, Vas: 20.3 L, Xmax: ±2.6 mm
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Would you be interested in trading in a device when purchasing this item?

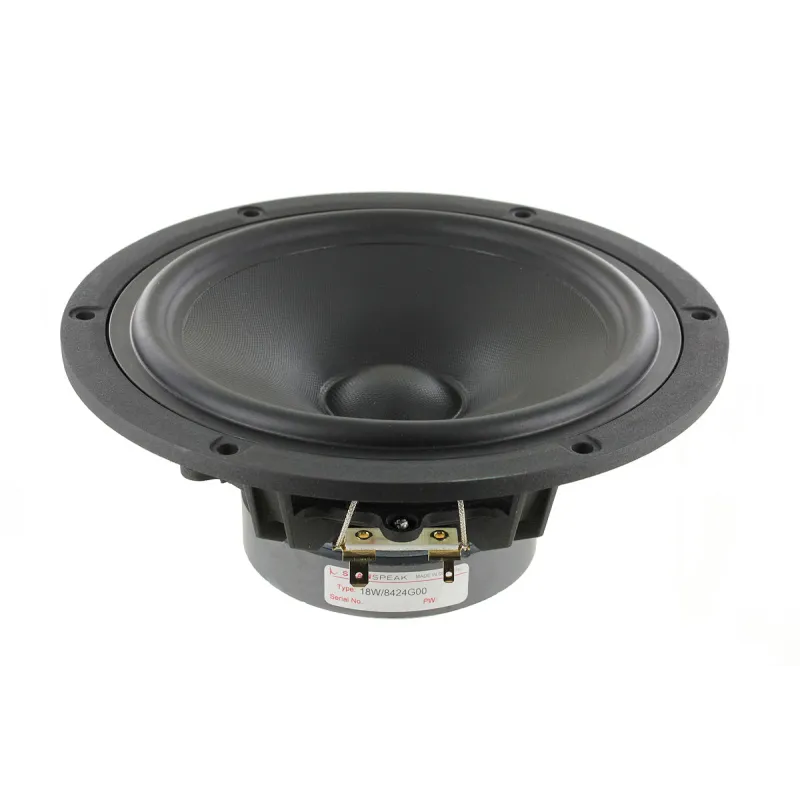

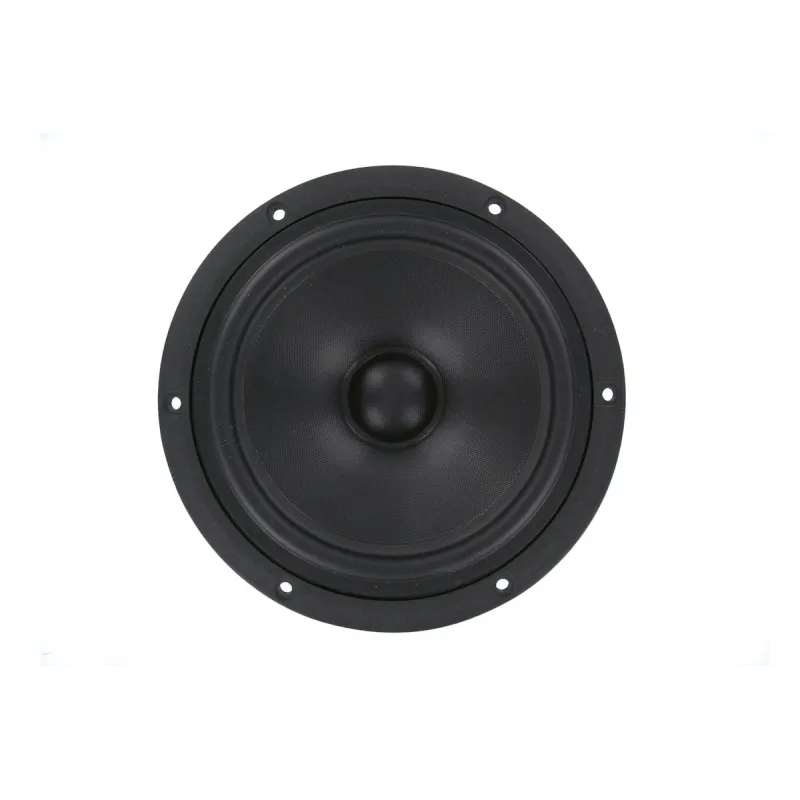

The 18W/8424G00 from Scan-Speak’s Discovery series is an 18 cm midwoofer designed to deliver an exceptional balance of sensitivity, linearity, and tonal naturalness. Its fiberglass cone with NRSC (Non-Resonant Suspension Coating) technology minimizes resonances and coloration, providing a clear, detailed midrange along with well-controlled bass.
The die-cast aluminum chassis, positioned beneath the spider, ensures a rigid structure free from unwanted vibrations, while the low-damping SBR rubber surround allows for smooth and natural response. Thanks to its high sensitivity of 89.5 dB and nominal impedance of 8 ohms, it is ideal for both high-fidelity two-way systems and high-performance home theater applications.
NRSC-coated fiberglass cone for accurate, resonance-free reproduction.
High sensitivity (89.5 dB) for easy pairing with moderately powered amplifiers.
Die-cast aluminum chassis to minimize structural distortion.
SBR rubber surround for precise excursion control and smooth response.
Excellent midrange performance with clean transitions to highs and lows.
Nominal diameter: 6.5" (18 cm)
Nominal impedance: 8 Ω
Cone: NRSC-coated fiberglass
Magnet: Ferrite
Sensitivity: 89.4 dB @ 2.83 V/1 m
Resonance frequency (Fs): 54 Hz
DC resistance (Re): 5.7 Ω
Total Q factor (Qts): 0.45
Equivalent volume (Vas): 20.3 liters
Linear excursion (Xmax): ± 2.6 mm
Surround material: SBR rubber
Basket type: Die-cast aluminum
