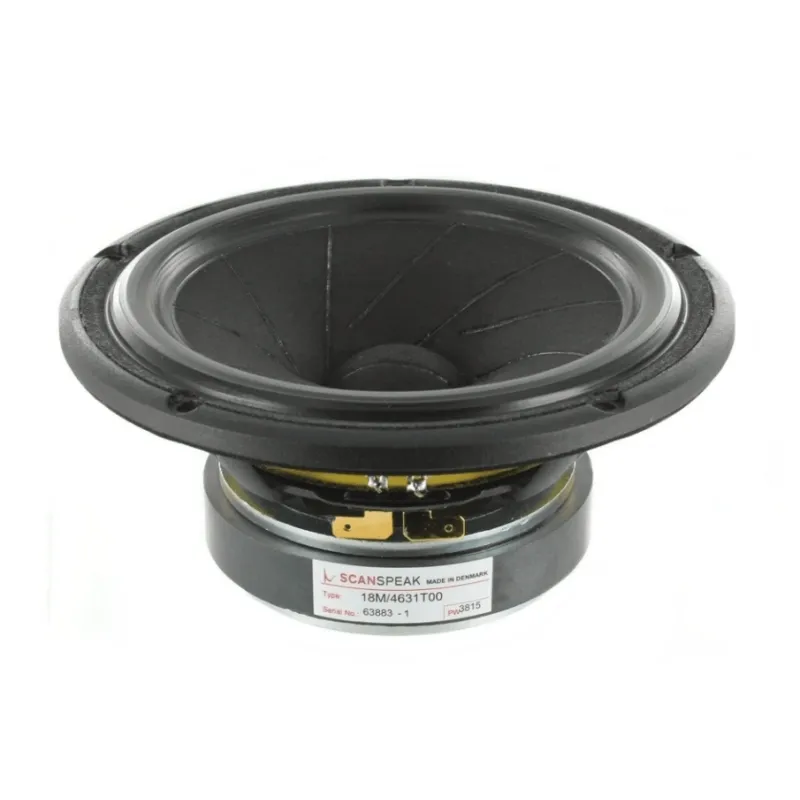

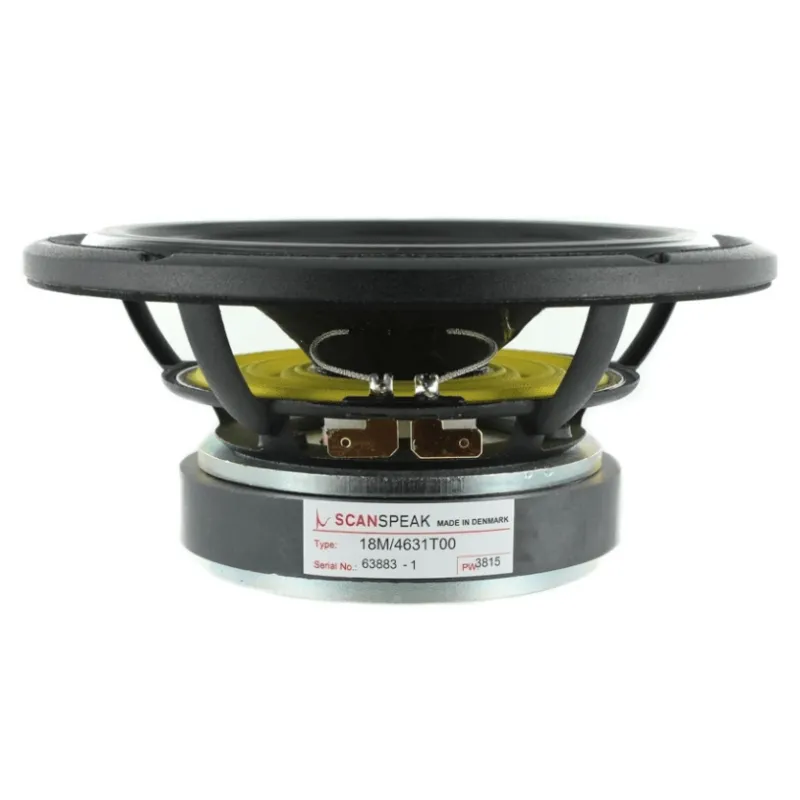

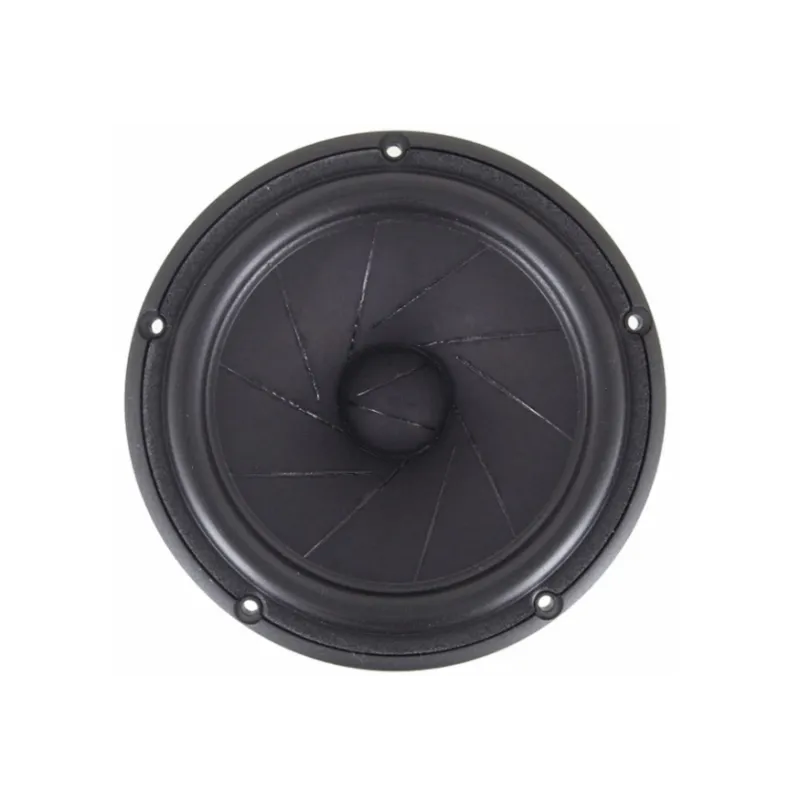

SCAN SPEAK 18M/4631T00 6.5" Bass-midwoofer
SCAN SPEAK 18M/4631T00 6.5" Bass-midwoofer
Delivery time 10 days
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
SCAN SPEAK 18M/4631T00 6.5" Bass-midwoofer
The Revelator midranges are well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.
Highlights:
Paper cone technology
Coated Foam Surround
Sliced Cone (Control Cone Breakups)
Product details:
Scan-Speak Revelator 18M/4631T00 6.5" Woofer
Patented Symmetrical Drive motor design. Sliced Cone (Control Cone Breakups). Low-loss Linear Suspension. High Sensitivity 92dB @ 2,83V. Coated Foam Surround. Rigid Titanium Voice Coil Former.
Specifications:
Woofer Series: Revelator
Woofer Type: Bass-midwoofer
Power Handling (RMS): 120 Watts
Power Handling (max): 250 Watts
Impedance (Z): 4 Ω
Sensitivity (SPL at 1m / 2.83V): 92 dB
Voice Coil Diameter: 38 mm
DC Resistance (Re): 3.5 Ω
Voice Coil Inductance (Le): 0.16 mH
Resonant Frequency (Fs): 65 Hz
Mechanical Q (Qms): 5.65
Electromagnetic Q (Qes): 0.67
Total Q (Qts): 0.60
Diaphragm Mass Inc. Airload (Mms): 14.3 g
Mechanical Compliance of Suspension (Cms): 0.42 mm/N
Surface Area of Cone (Sd): 154 cm2
BL Product (BL): 5.6 Tm
Compliance Equivalent Volume (Vas): 14 L
Maximum Linear Excursion (Xmax): 3 mm
Driver's Mechanical Losses (Rms): 1.03 kg/s
