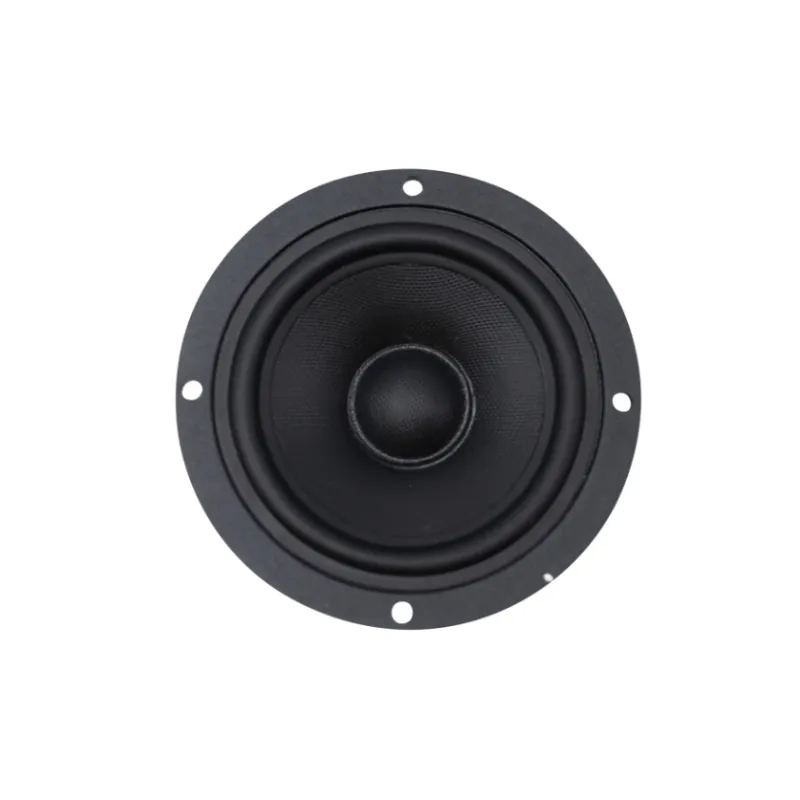

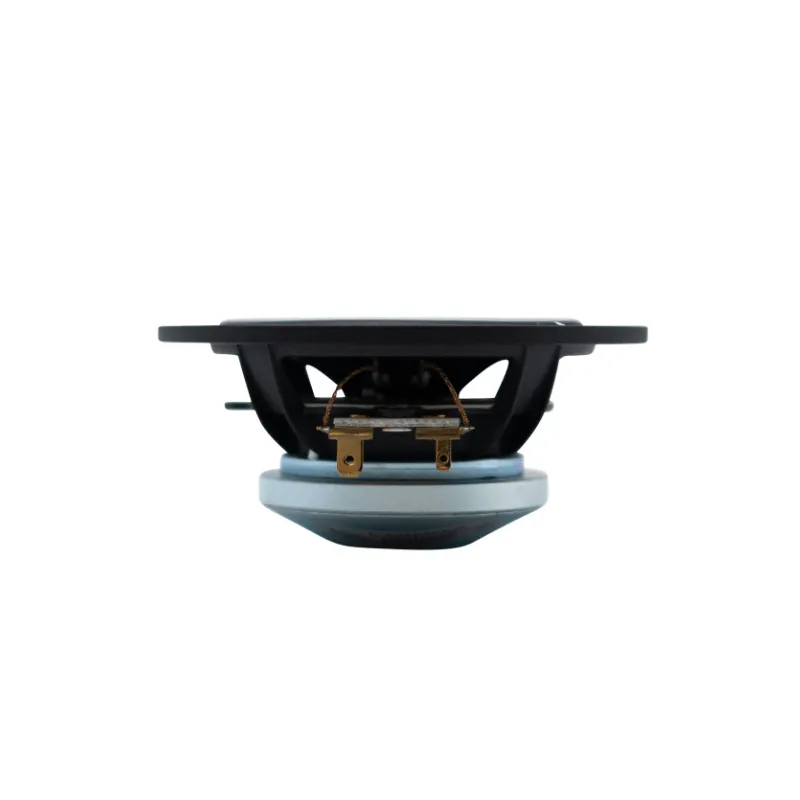

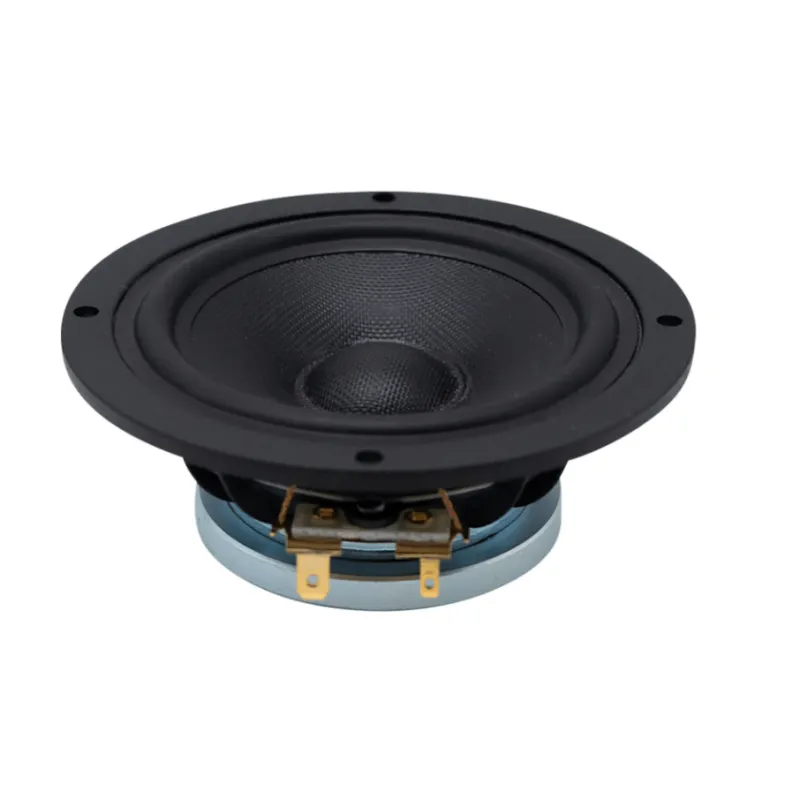

SCAN SPEAK 10F/4424G00 Discovery - Midrange
Very wide Frequency Range
Coated NRSC Fiber Glass Cone (patent)
Compact Size
Neodymium magnet
Aluminum Chassis
High Sensitivity 90dB / 2,83V
SBR Rubber Surround
Copper Cap on Pole Piece
Scan-Speak Discovery 10F/4424G00 4" Full-range Woofer
The Discovery series is designed for the discerning audiophile customer. To meet the needs of this audience, several new technologies were developed with the goal of lowering distortion and damping in the speaker. The coated fiberglass cone reduces vibration and standing waves, and the vented motor system minimizes power compression. The combined result is a very open and dynamic sound.
Woofer Series: Discovery Series
Woofer Type: Full-range
Nominal Diameter: 4"
Power Handling (RMS): 15 Watts
Power Handling (max): 30 Watts
Impedance (Z): 4 ohms
Sensitivity (SPL at 1m / 2.83V): 89.8 dB
Voice Coil Diameter: 0.78"
DC Resistance (Re): 3.2 ohms
Voice Coil Inductance (Le): 0.1 mH
Resonant Frequency (Fs): 90 Hz
Mechanical Q (Qms): 3.2
Electromagnetic Q (Qes): 0.32
Total Q (Qts): 0.29
Diaphragm Mass Inc. Airload (Mms): 2.8g
Mechanical Compliance of Suspension (Cms): 1.1 mm/N
Surface Area of Cone (Sd): 36 cm2
BL Product (BL): 3.9 Tm
Compliance Equivalent Volume (Vas): 0.07 ft.³
Maximum Linear Excursion (Xmax): 2.6 mm
