Morel applied their years of experience and creative genius to produce a world-beating sub-bass driver…the Titanium Ultimate 12" subwoofer.

Highlights:

Copper-sleeved pole piece and titanium former reduce speed-depleting inductance

8 ohm impedance for a high damping factor and more amplifier control

5.1" Hexatech voice coil for 600 watts RMS power handling

Accucenter self-centering, one-piece paper cone assembly

Product details:

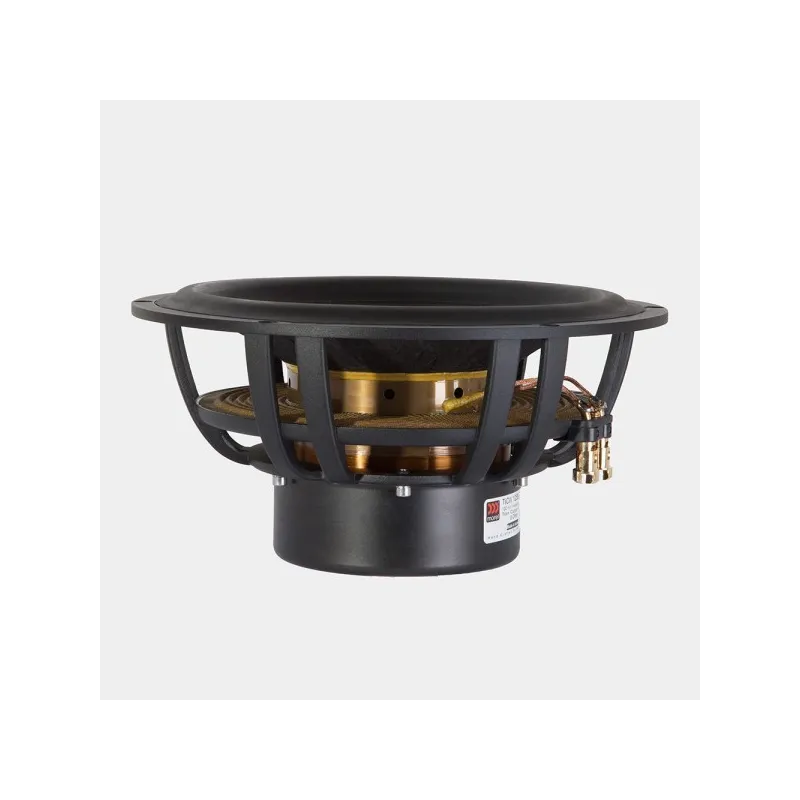

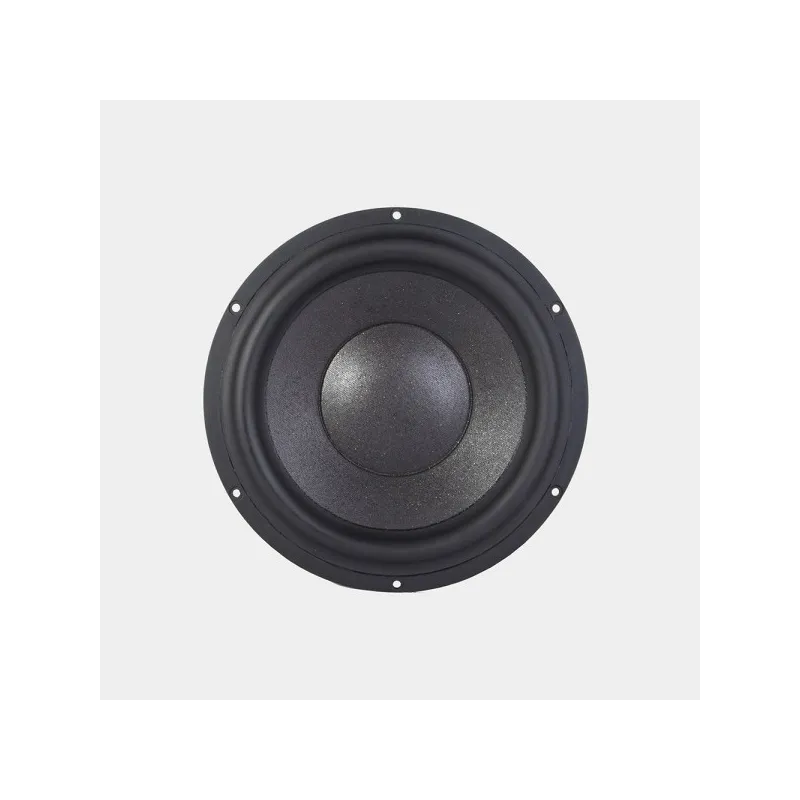

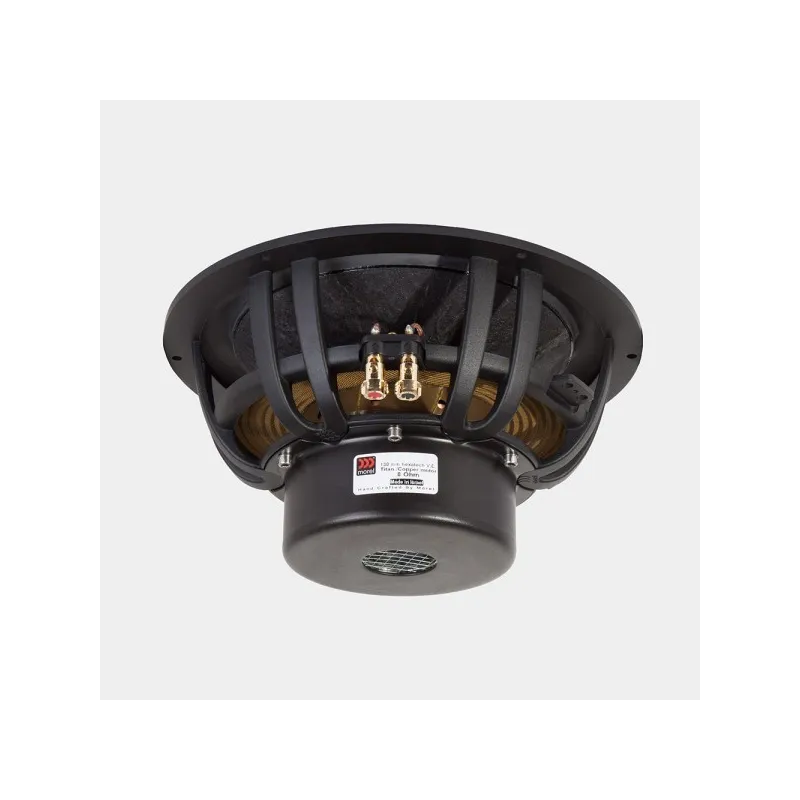

Morel TiCW 1258Ft Titanium Series 12" Subwoofer 8 Ohm

To create their Titanium Ultimate high fidelity 12" subwoofer, Morel began with an extra-large, 5.1" diameter, Hexatech™ aluminum voice coil wound on a vented titanium former. Moving this beast requires huge amounts of magnetic force, so to do so Morel uses a high flux double magnet system.

Speed-robbing energy storage is reduced to an insanely low 0.62 mH through the combination of the titanium former and a copper-sleeved pole piece. Trapped air within the subwoofer is virtually inexistent due to the Uniflow™ cast aluminum chassis, which works with the Accucenter™ self-centering cone assembly to reduce distortion and the effects of power compression.

Product Specifications

    Nominal Diameter 12"
    Power Handling (RMS)600 Watts
    Power Handling (max)3,000 Watts
    Impedance 8 ohms
    Frequency Response19 to 2,000 Hz
    Sensitivit y88 dB 2.83V/1m
    Voice Coil Diameter 5.1"

Thiele-Small Parameters

    Resonant Frequency (Fs)19 Hz
    DC Resistance (Re)6.4 ohms
    Voice Coil Inductance (Le)0.62 mH
    Mechanical Q (Qms)4.03
    Electromagnetic Q (Qes)0.38
    Total Q (Qts)0.34
    Compliance Equivalent Volume (Vas)6.02 ft.³
    BL Product (BL)15.25 Tm
    Diaphragm Mass Inc. Airload (Mms)110g
    Maximum Linear Excursion (Xmax)10.5 mm
    Surface Area of Cone (Sd)437 cm²

Materials of Construction

    Cone MaterialPaper
    Surround MaterialRubber
    Voice Coil Wire MaterialAluminum
    Voice Coil FormerTitanium
    Basket / Frame MaterialCast Aluminum
    Magnet MaterialFerrite

Mounting Information

    Overall Outside Diameter 12.00"
    Baffle Cutout Diameter 10.60"
    Depth 5.9"
    Mounting Holes

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

    Sealed Volume 1.35 ft.³
    Sealed F344 Hz
    Vented Volume 2.88 ft.³
    Vented F326 Hz

Morel TiCW 1258Ft Titanium Series 12" Subwoofer 8 Ohm

    Brand Morel
    Model TiCW 1258Ft
    Part Number297-110
    Unit of Measure EA
    Weight 17.6000 lbs-8Kg
