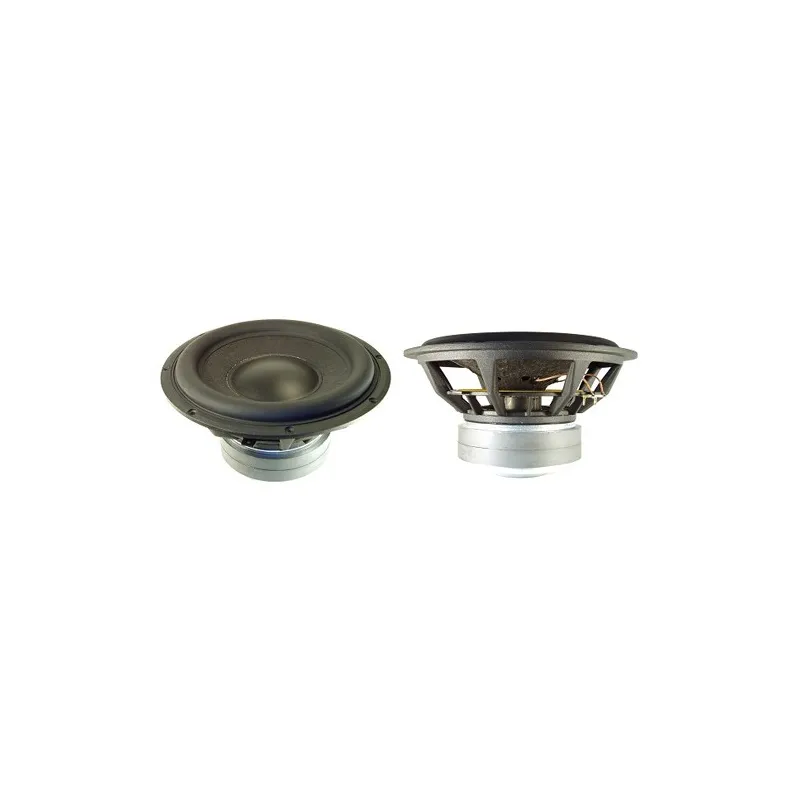

Peerless Extra Extra Long Stroke
Technical characteristics:
Thick Nomex fiber cone
Cast frame
Big roll rubber surround
Good for 30 liter bass reflex box or with passive radiator XLS with 600 grams
269.3mm flange
240mm cut out
137mm depth
More box info on the DST web site
Znom 8 ohm
Re 3.4 ohm
Le 4.2 mH
fs 18.9 Hz
Qms 2.63
Qes 0.18
Qts 0.17
Mms 135.3 g
Cms 0.52 mm/N
Sd 352 cm2
BL 17.5 N/A
Vas 89.7 ltrs
Xmax 12.5 mm peak
Voice Coil Ø 51 mm
Sensitivity
2.83V / 1m 88.4 dB
Power (IEC) 350 W
Magnet weight 2.4 kg
1250600006
