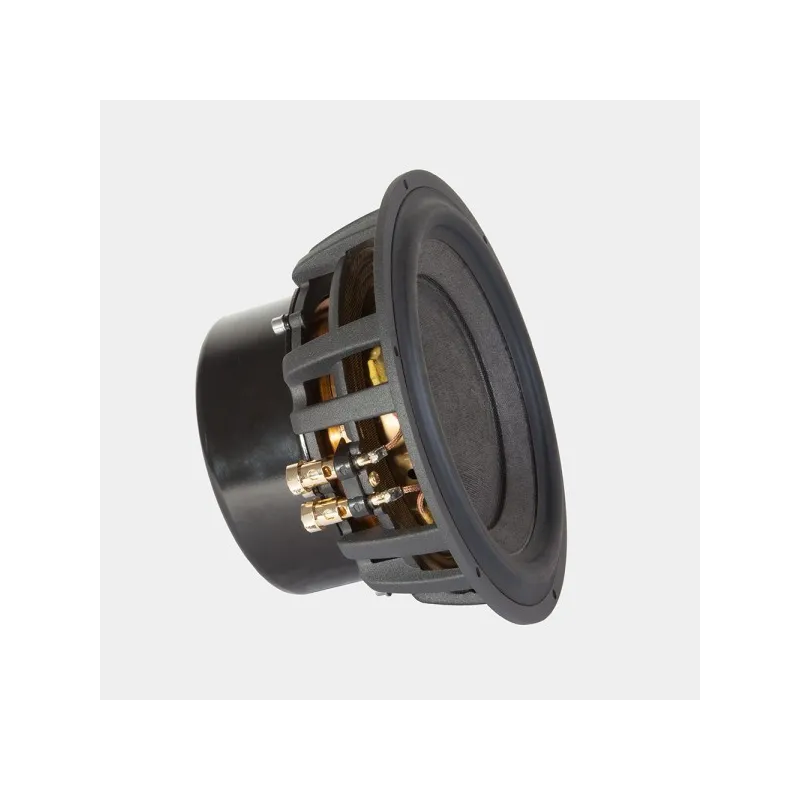

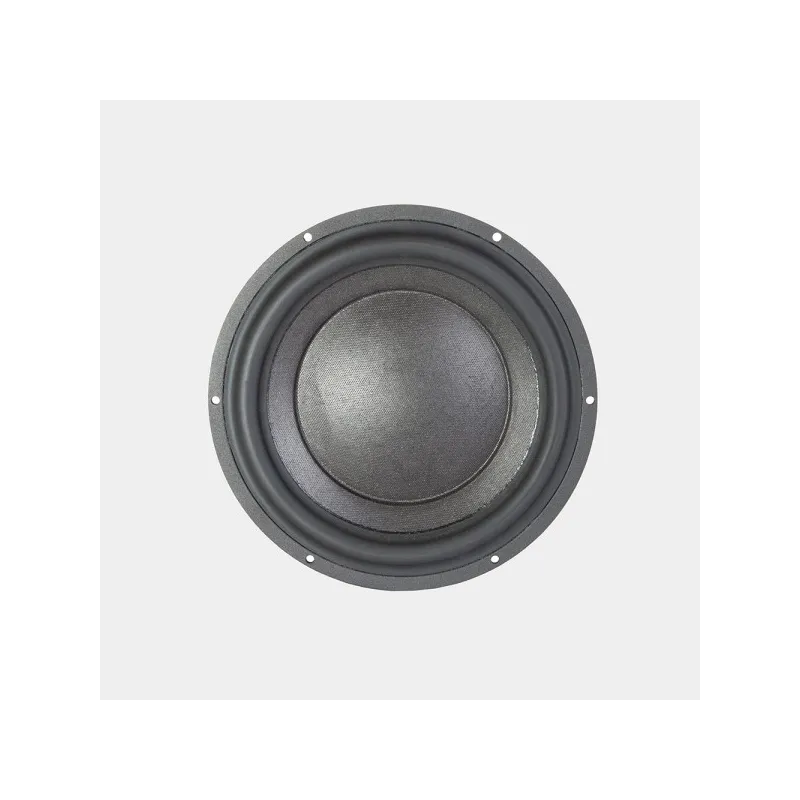

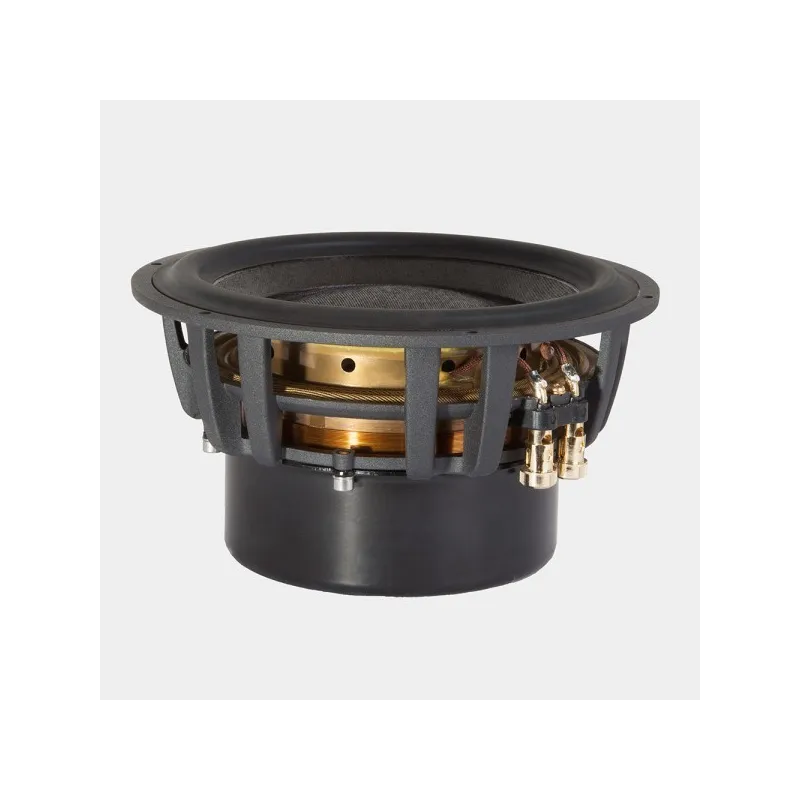

MOREL TiCW 958Ft Titanium Series 9" Subwoofer
Morel TiCW 958Ft. Titanium Series 9" Subwoofer 8ohm
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
Product Specifications
- Nominal Diameter 9"
- Power Handling (RMS)500 Watts
- Power Handling (max)1,500 Watts
- Impedance8 ohms
- Frequency Response 28 to 1,000 Hz
- Sensitivity 85 dB 2.83V/1m
- Voice Coil Diameter 5.1"
Thiele-Small Parameters
- Resonant Frequency (Fs)28 Hz
- DC Resistance (Re)6.3 ohms
- Voice Coil Inductance (Le)0.62 mH
- Mechanical Q (Qms)4.4
- Electromagnetic Q (Qes)0.43
- Total Q (Qts)0.38
- Compliance Equivalent Volume (Vas)1.20 ft.³
- BL Product (BL)15 Tm
- Diaphragm Mass Inc. Airload (Mms)77g
- Maximum Linear Excursion (Xmax)10.5 mm
- Surface Area of Cone (Sd)243 cm²
Materials of Construction
- Cone MaterialPaper
- Surround MaterialRubber
- Voice Coil Wire MaterialAluminum
- Voice Coil FormerTitanium
- Basket / Frame MaterialCast Aluminum
- Magnet MaterialFerrite
Mounting Information
- Overall Outside Diameter 8.74"
- Baffle Cutout Diameter 7.87"
- Depth 4.92"
- Mounting Holes 6
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
- Sealed Volume 0.36 ft.³
- Sealed F358 Hz
- Vented Volume 0.83 ft.³
- Vented F332 Hz
Morel TiCW 958Ft Titanium Series 9" Subwoofer 8 Ohm
- Brand Morel
- Model TiCW 958Ft
- Part Number297-108
- Unit of Measure EA
- Weight 15.2500 lbs-7Kg
