Made from 100% aluminum wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary, fast-transient response Morel drive units are known for.
Highlights:
Underhung voice coil, 4 ohm
Acoustically matched pair
1⅛” Large Hexatech™ Aluminum voice coil
Neodymium flat pancake magnet
High power handling
110mm IDR™ (Improved Dispersion Recess)
Titanium Voice Coil Former
Replaceable Acuflex™ dome/coil assembly
Aluminum die-cast rear chamber
Copper shorting ring (in & out)
Product details:

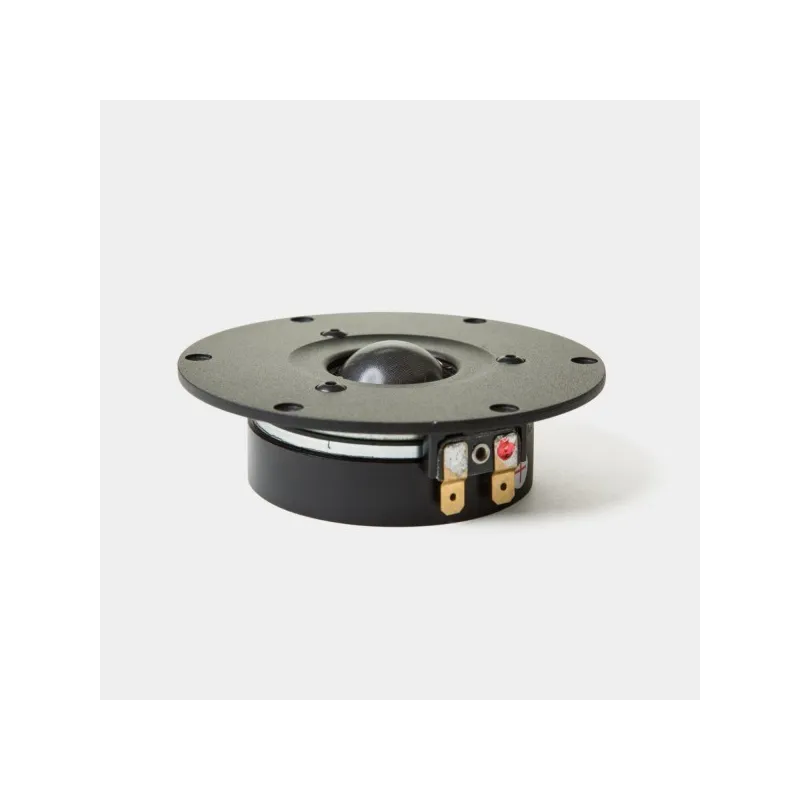

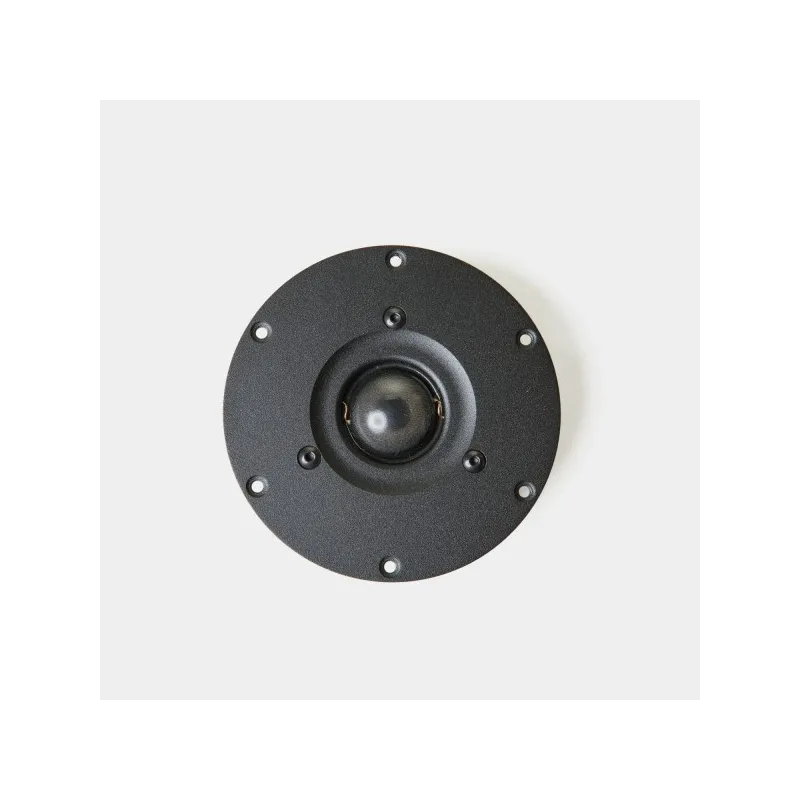

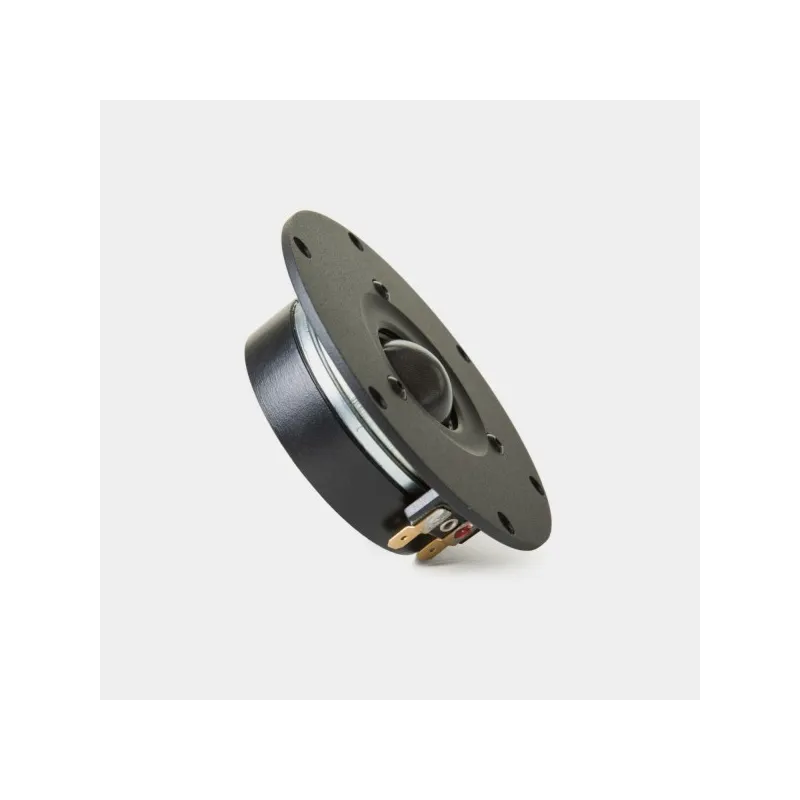

Morel Supreme TSCT 1104 1" Dome Tweeter Matched Pair
Sold as each but packaged in matched pairs. Innovative engineering and an advanced approach to acoustic construction makes SUPREME a superior high-performance tweeter. With an acoustic construction based on the underhung voice coil configuration method, SUPREME voice coil moves in a significantly higher magnetic field and fully remains there always during operation. As a result, SUPREME provides a linear excursion of the coil in the magnetic field; eliminates intermodulation distortion created by non-linear excursion; eliminates sound compression at high levels; and considerably improves low frequency reproduction.
Made from 100% aluminium wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary, fast-transient response Morel drive units are known for.
| Resonant frequency (fs) | 591 Hz | Nominal impedance (Zn) | 4 Ω |
| Effective diaphragm diameter | 28mm | DC resistance (Re) | 4.19 Ω |
| Ferrofluid ? Y/N | Yes | RMS power handling | 200W |
| Recommended crossover | 2.5khz | Faceplate diameter | 110 mm |
| Sensitivity (2.83V/1m) | 95 dB | Cutout hole diameter | 72.8 mm |
