Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance.
Highlights:
Sold in factory matched pairs
130 mm IDR™ Improved Dispersion Recess aluminum faceplate
Flat neodymium motor structure provides maximum flux
Hexatech™ voice coil for maximum BL product and power handling
Acuflex™ coated dome with the perfect blend of internal damping and rigidity
Precisely matched acoustic loading between the dome cavity and rear chamber
Unique offset dome design
Product details:

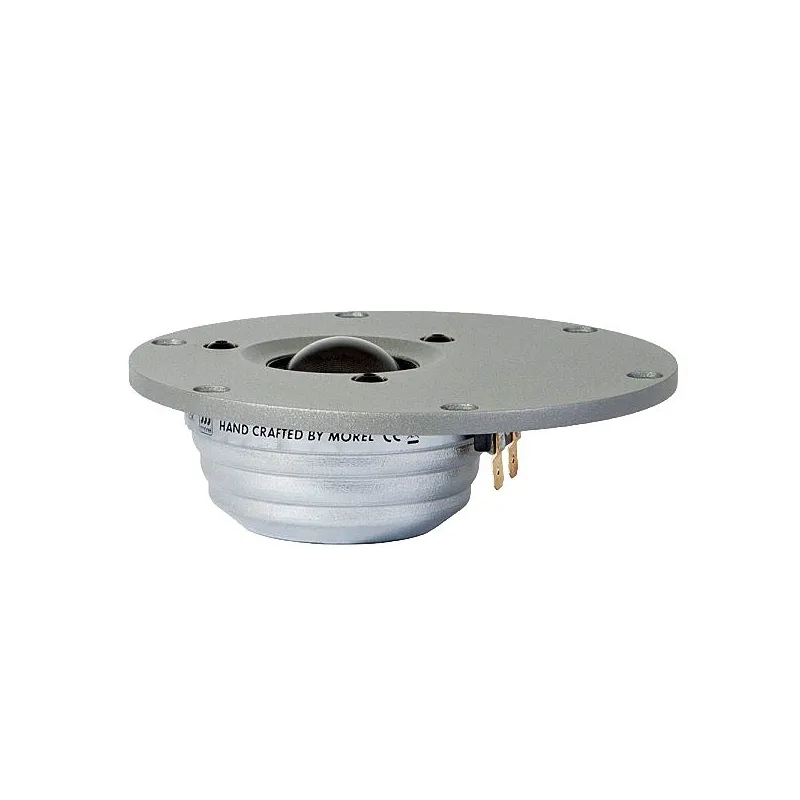

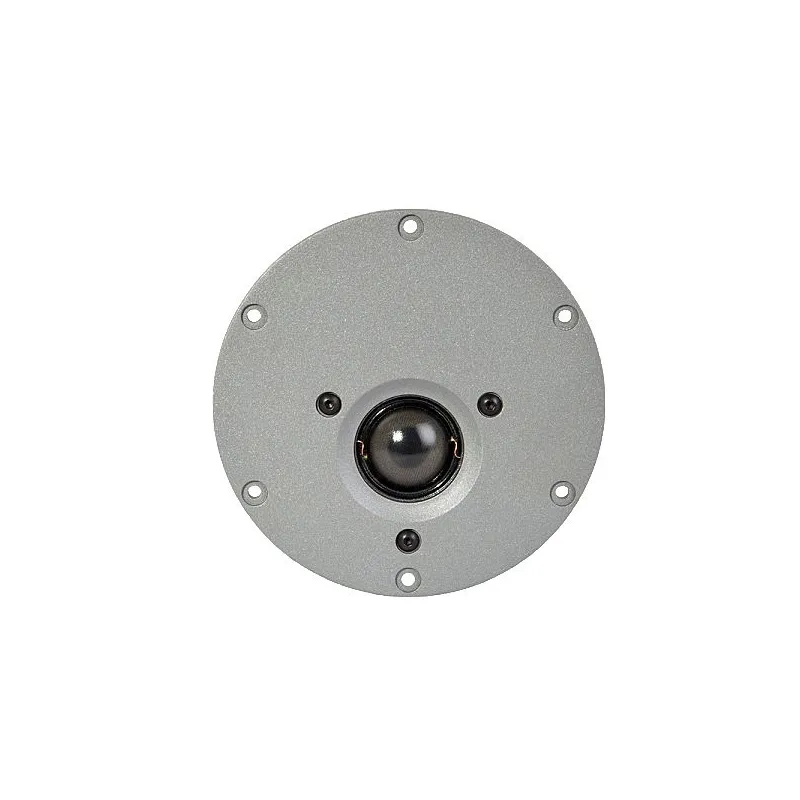

Morel Supreme ST 1308 1" Dome Tweeter Matched Pair
Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance. Their underhung voice coils move in a significantly higher magnetic field and remain there always during operation. As a result, the Morel Supreme tweeters provide more linear excursion, eliminate intermodulation distortion, reduce power compression at high levels, and considerably improve low frequency reproduction.
Characteristics:
- 130mm offset dome aluminium faceplate
- Large Hexatech™ aluminium voice coil
- 28mm soft dome treated with Acuflex
- Neodymium flat pancake magnet
- Critically tuned rear chamber
- Replaceable dome assembly
- High power handling
Basic parameters:
Resonant frequency (fs) | 680Hz | Nominal impedance (Zn) | 8 Ω |
Effective diaphragm diameter | 28mm | DC resistance (Re) | 5.2 Ω |
Ferrofluid ? Y/N | Yes | RMS power handling | 220W |
Recommended crossover | 2.5khz | Faceplate diameter | 130 mm |
Sensitivity (2.83V/1m) | 91.5 dB | Cutout hole diameter | 104 mm |
