ACCUTON C25-6-158

1’ tweeter with ultra-hard ceramic dome

Frequency range: 2500-30000 Hz

Resonance frequency: 810 Hz

RMS power: 100 W

Impedance: 6 Ohm

Sensitivity: 92.5 dB (2.83V/1m)

Coil: 28 mm ventilated titanium, double neodymium magnets

Linear excursion: +/- 1.2 mm

  Can we help you? Contact to our Expert Now

bloques info producto

Bank Transfer (3% OFF)

If you make the payment via bank transfer, you will receive an extra 3% discount on your order.

Individual Consultancy

Contact us without any obligation.

957460112
info@audiohum.com

Need to upgrade your equipment?

Would you be interested in trading in a device when purchasing this item?

Renovar equipo




Accuton C25-6-158. 1 inch tweeter with ultra hard ceramic dome

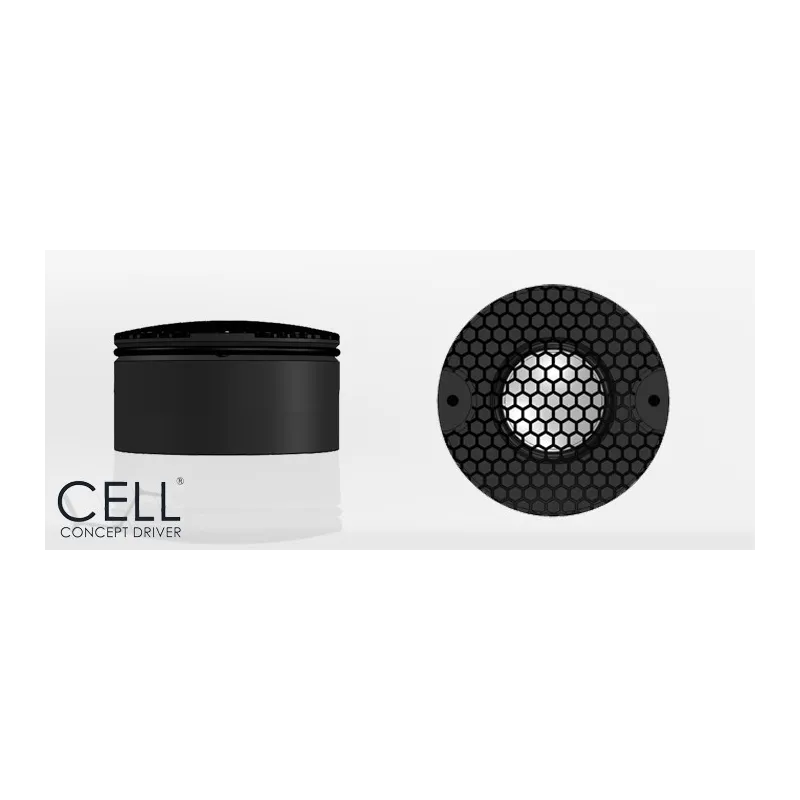

The C25-6-158 is a 1 inch tweeter with ultra hard ceramic dome in a 58 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required. A unique FEA optimized underhung motor design with vented titanium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion. The new designed soft fabric surround centers the moving parts with improved linearity.We recommend our C25-6-158 in an application above 2000 Hz.

Main features:

RMS power = 100 W

Frequency range = 2500-30000 Hz

Resonance frequency = 810 Hz

Impedance = 6 Ohm

Sound pressure level SPL = 92.5 dB (2.83V; 1m)

DC resistance Re = 5.8 Ohm

Force factor BL = 3,27 N / A

Coil inductance L = 0.01 mH

Effective membrane area Sd = 5.94 cm2

Displaced mass. Air load included mms = 0.17 g

Total quality factor Qts = 0.62 (Qms = 2.68, Qes = 0.81)

Coil diameter = 28mm

Linear excursion xlin = +/- 1.2 mm

Mounting diameter d = 58 mm

Diameter / overall dimensions d = 57.6 mm

Mounting depth (not countersunk) t = 28 mm

Weight = 0.38 kg
