DARTZEEL LHC-208
The LHC-208 presents itself as an integrated amplifier, network player and high-resolution digital converter, all contained in a modern and refined chassis.
darTZeel has ushered in an era of unprecedented possibilities in digital audio reproduction with the LHC-208.
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Would you be interested in trading in a device when purchasing this item?
The LHC-208, designed to handle high quality digital music, is actually an integrated "analogue-to-digital" amplifier with an integrated transmission system and built-in digital-to-analogue converter.
darTZeel has ventured into the digital realm to deliver its distinctive, unparalleled sound reproduction through its novel approach to signal processing.
With an active Ethernet connection, the LHC-208 decodes and plays digital audio files, including formats such as DSD256 and 24/384.
The LHC-208 can be controlled via its remote control or any DLNA-compatible UPnP application.
This device offers excellent digital conversion quality, ease of use, a compact and elegant chassis, powerful output stages and development potential with its modern interface.
Attention to detail
Prior to providing an unforgettable musical experience, the darTZeel LHC-208 was gradually developed over more than three years in our laboratory, where attention was paid to the smallest detail.
For the first time, you can enjoy high-resolution music with non-PLL clock distribution, for an unprecedented analogue listening experience.
Technical features:
Rated output power: 200 watts RMS (220 watts peak) @ 8 ohms, 300 watts RMS (330 watts peak) @ 4 ohms.
Line gain: 0dB nominal, up to + 12 dB.
Power stage gain: 26 dB @ 8 ohms.
Analogue input impedances: 1 x Zeel BNC 50 ohms, 3 x RCA line > 30 kOhm, 1 x Aux 3.5 mm front panel connector > 10 kOhm.

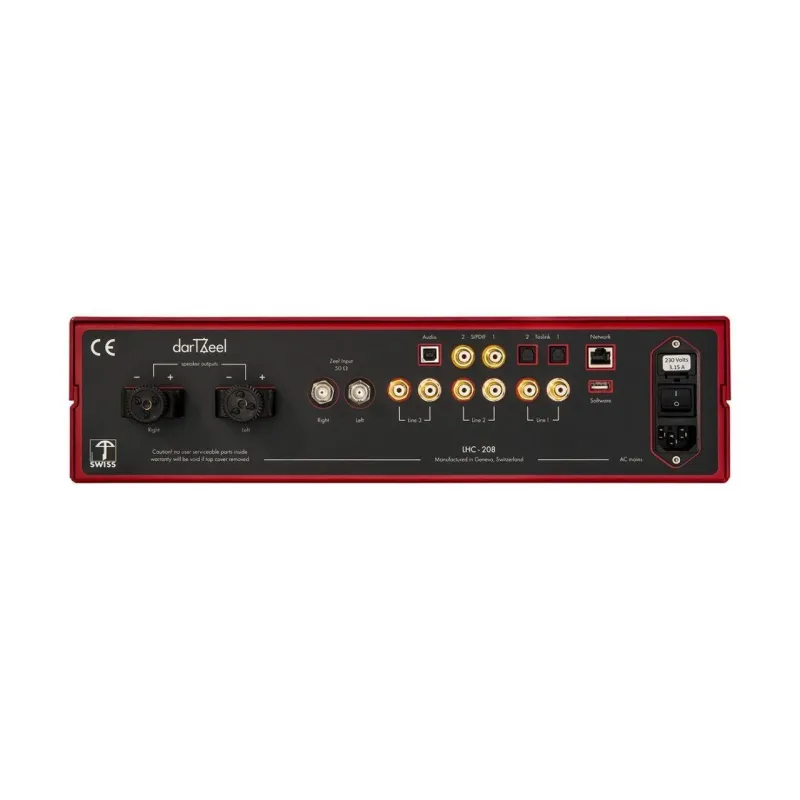

Digital inputs: 1 x RJ45 Network, 1 x USB, 2 x SPDIF (RCA 75 ohm), 2 x TOS Link.
Analogue line output: 1 x headphone 6.35mm front panel connector.
Speaker output impedance: < 0.33 ohms from 20 Hz to 20 kHz (measured under 8 ohms).
Frequency response: 7 Hz - 170 kHz, +0, -3 dB.
Rise time: < 0.8 µs.
Rise rate: > 100 V/µs, peak-to-peak.
DC output voltage: < ± 15 mV maximum.
Total Harmonic Distortion (THD): < 1 % from 7 Hz to 77 kHz within the output dynamic range.
Temporal distortion: None, at any level and load, as specified above.
Crosstalk: < -60 dB @ 1 kHz.
Signal-to-Noise Ratio: > 105 dB(A) @ rated power.
Power consumption: 2 watts standby, 40 watts idle, 900 watts at maximum output power.
Dimensions in mm: 440 x 350 x 130 (WxDxH).
Dimensions in inches: 17.32 x 13.78 x 5.12 (WxDxH).
Net weight: 16 kg.
