Compact HiFi Amplifier.
100W x 2 (8Ω) / 200W x 2 (4Ω)
ESS 9039Q2M DAC + TI TPA3255 Class D amplification
THD+N ≤ 0.0005% | SNR ≥ 120 dB
PFFB Technology: Natural and detailed sound
Inputs: Optical, coaxial, pure RCA | 12V trigger
Outputs: Gold-plated banana plugs
Aluminum chassis with advanced heat dissipation
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Would you be interested in trading in a device when purchasing this item?

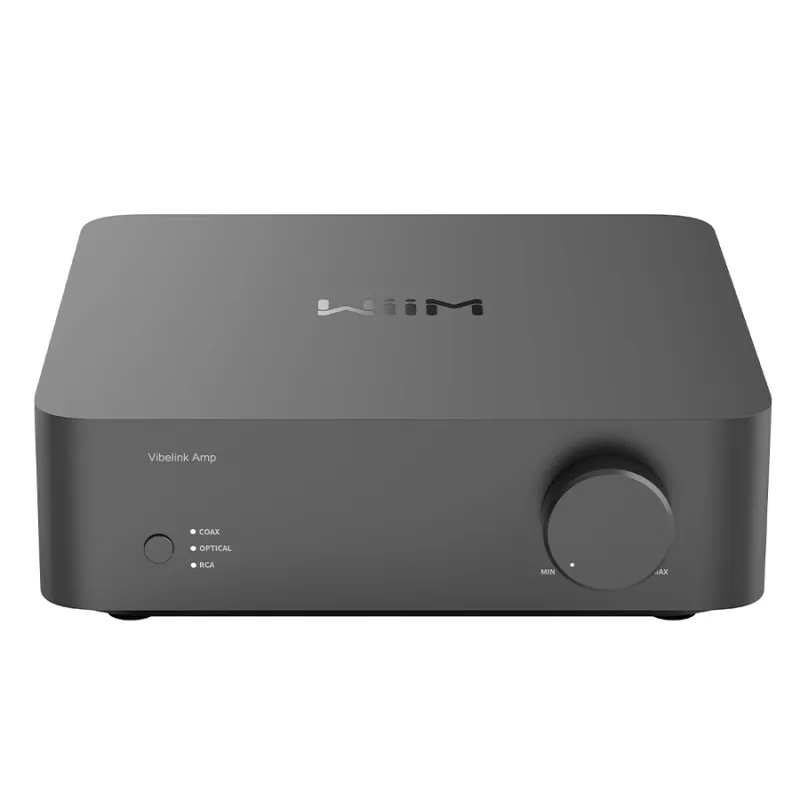

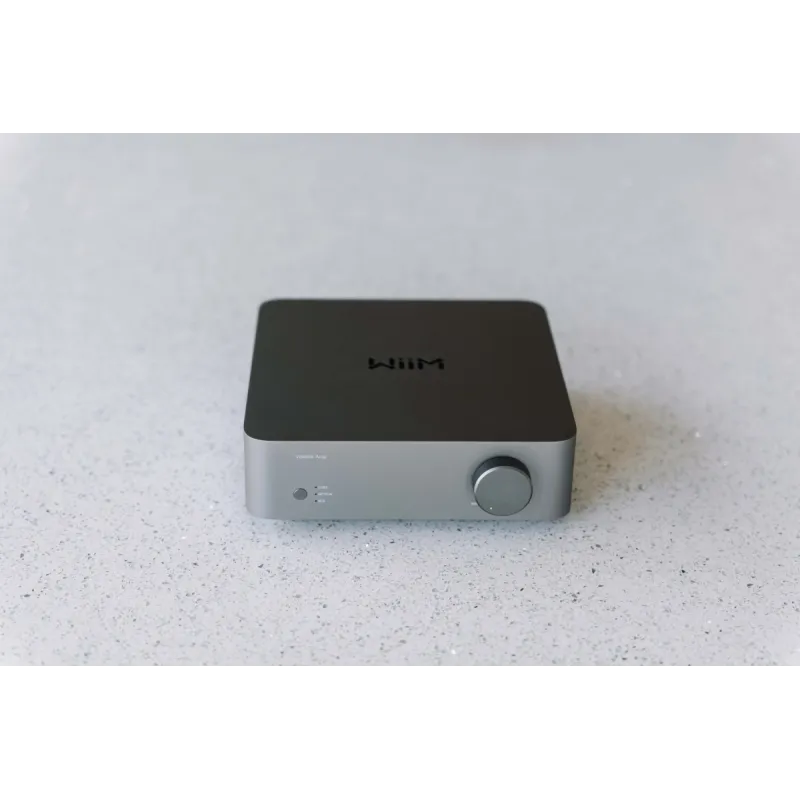

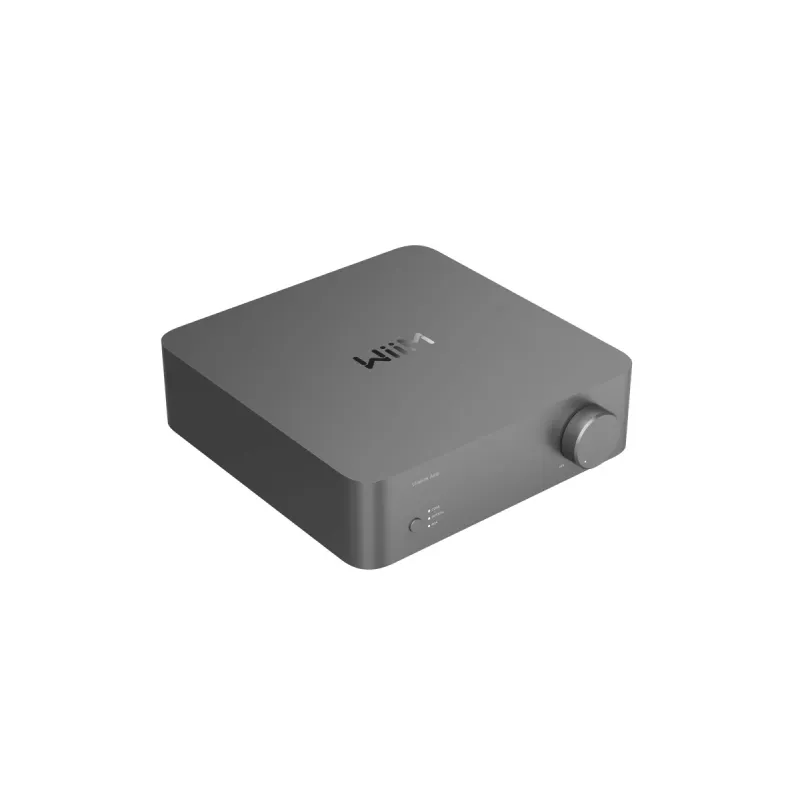

The WiiM Vibelink Amp is a premium HiFi stereo amplifier engineered for audiophiles and home cinema enthusiasts seeking powerful sound, precise detail, and refined aesthetics in one compact unit. Delivering 100W per channel at 8 ohms (200W at 4 ohms), it ensures clean, dynamic, and immersive audio that elevates any home audio system.

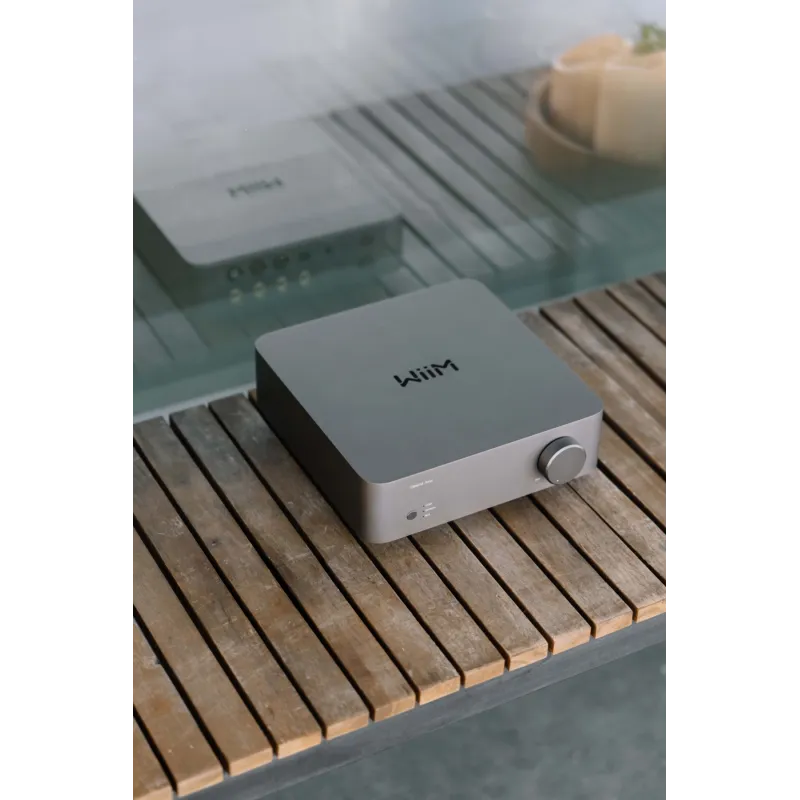

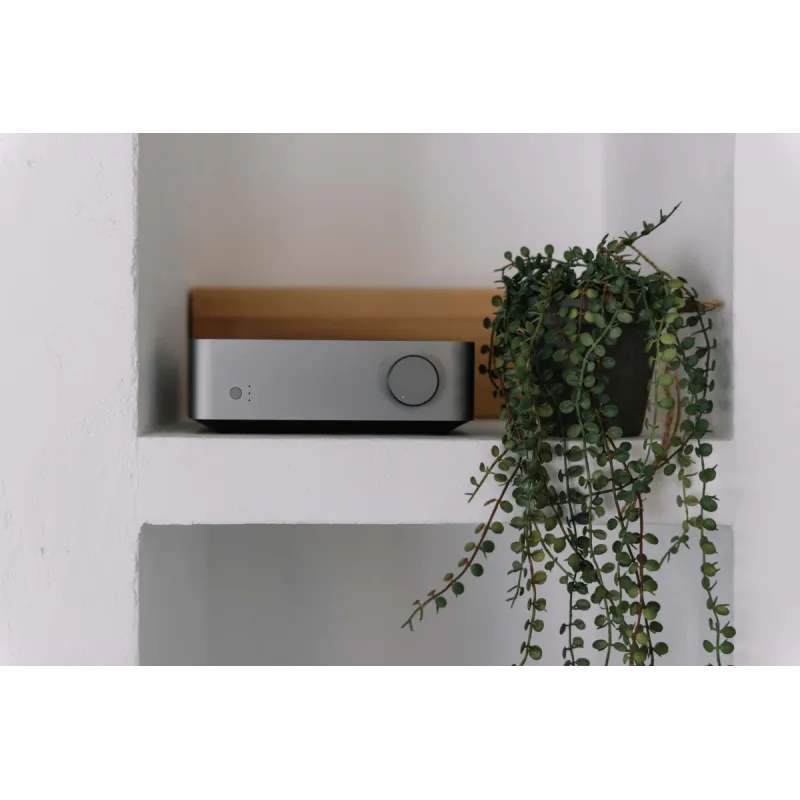

Sleek Design with Advanced Cooling

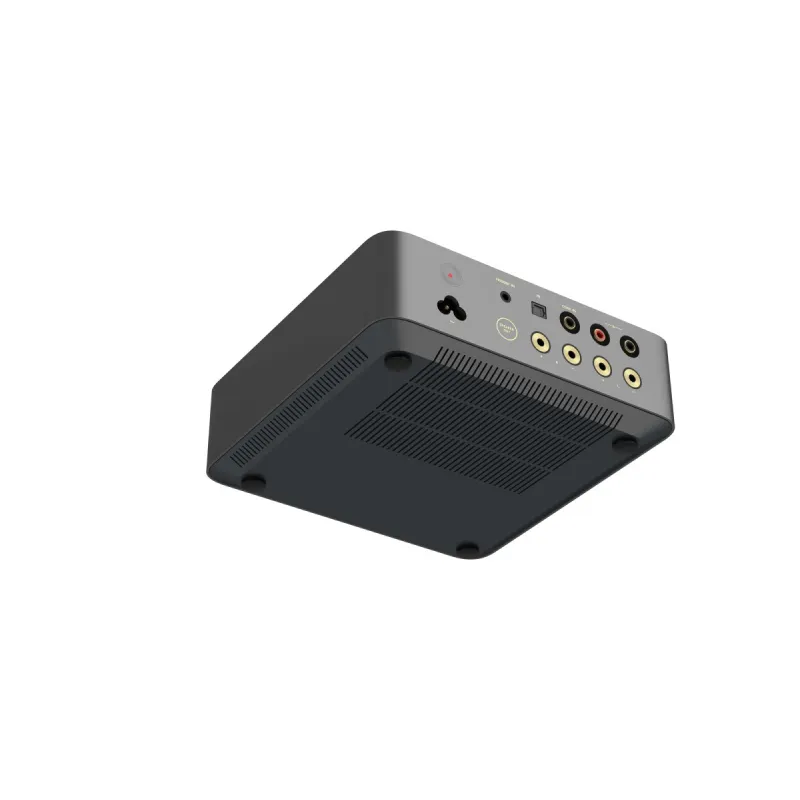

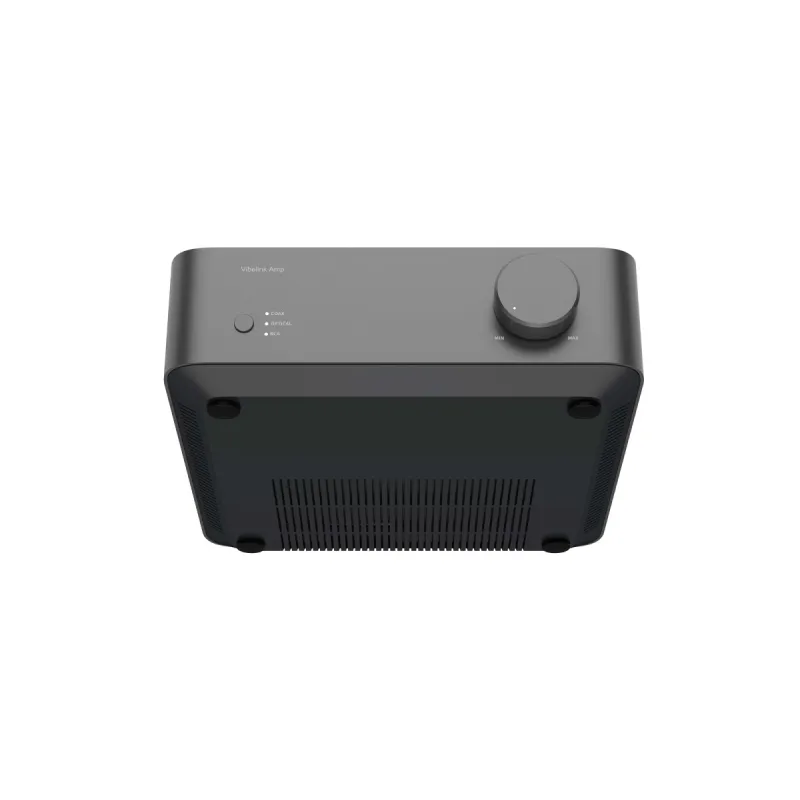

Crafted with a unibody brushed aluminum chassis, the Vibelink Amp offers not only modern elegance but also exceptional heat dissipation. It features a copper heat pipe, oversized aluminum heatsink, and PID-controlled thermal management for stable, reliable performance even under demanding conditions.
Premium Components for High-Fidelity Sound
Inside, the Vibelink Amp integrates cutting-edge audio technology:
ESS 9039Q2M DAC for high-resolution conversion.
Texas Instruments TPA3255 Class D amplifier for efficient power.
Six TI OPA1612 op-amps for ultra-low distortion.
This design enables bit-perfect playback up to 192kHz / 24-bit, capturing every nuance and detail in your music.
PFFB Technology for Superior Sound
The amplifier's Post-Filter Feedback (PFFB) architecture enhances frequency response and minimizes distortion, ensuring consistent performance across speaker loads. The result is tighter bass, clearer highs, and a more open, natural soundstage.

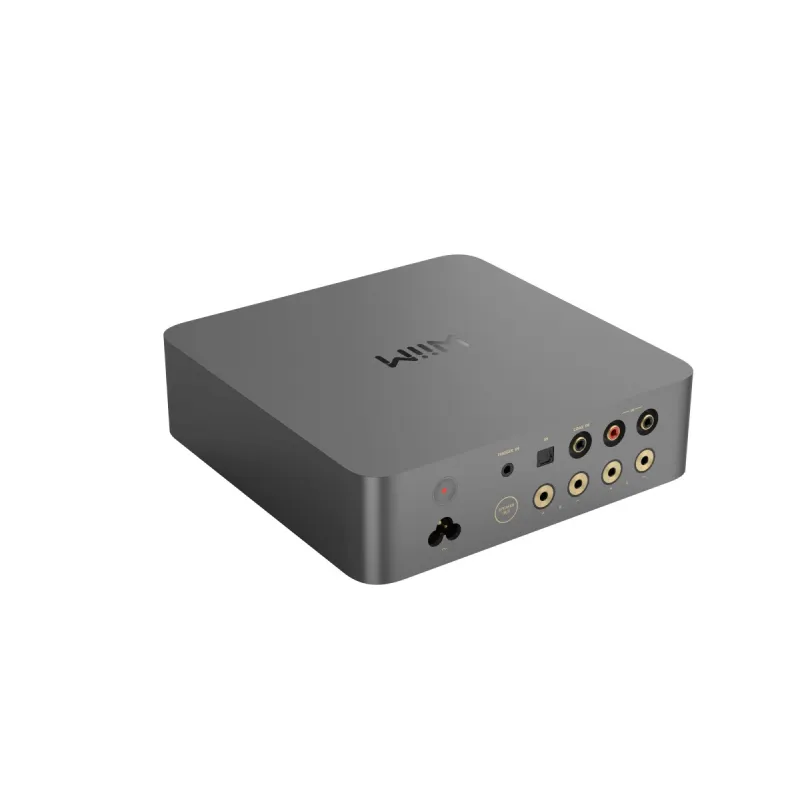

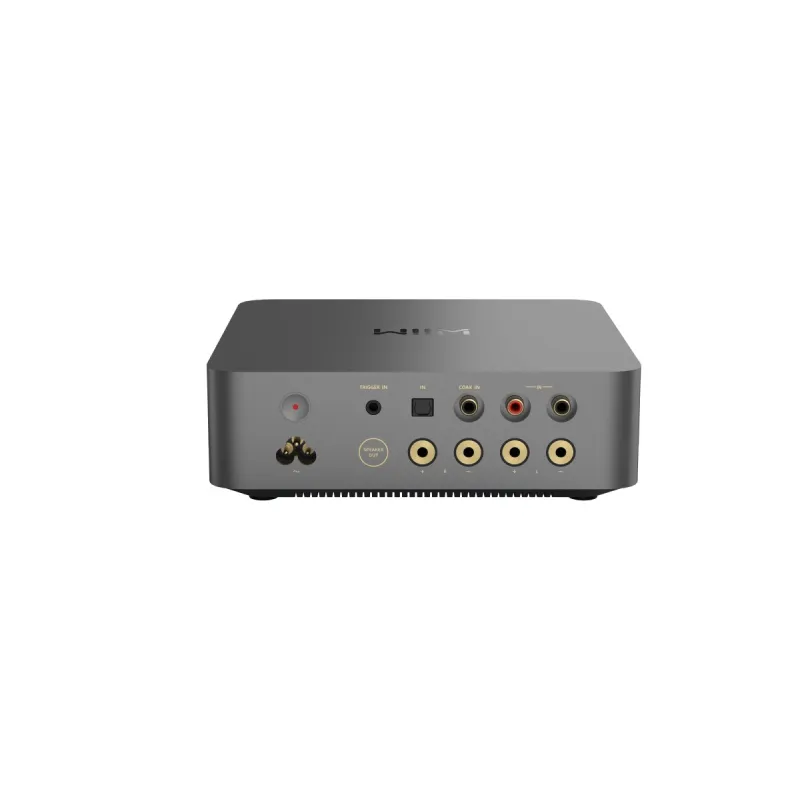

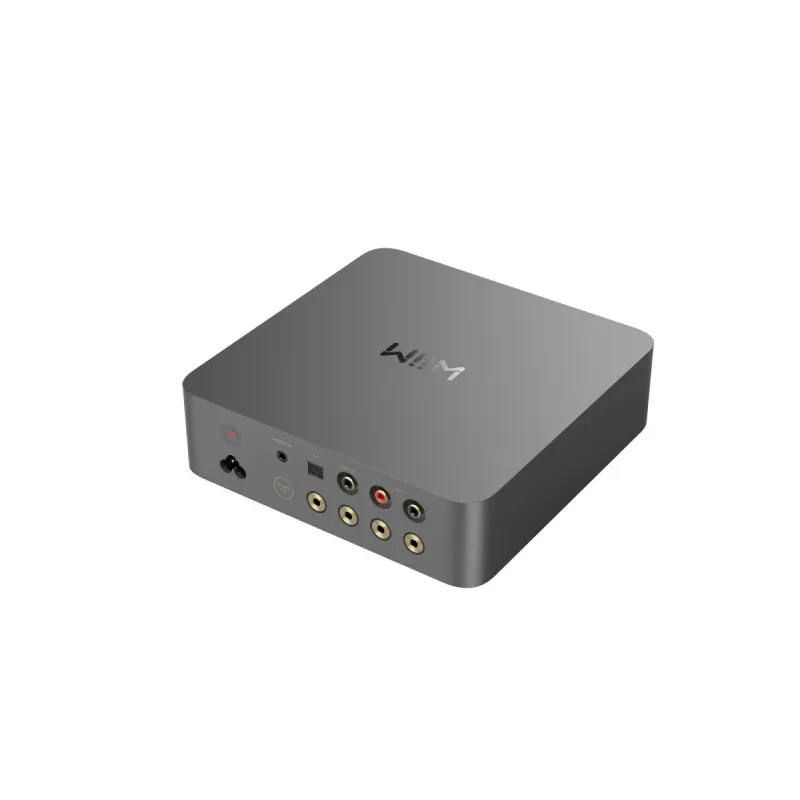

Versatile Connectivity
Digital inputs: Optical (TOSLINK) and Coaxial (S/PDIF), supporting up to 192kHz / 24-bit PCM
Pure analog input: RCA with no A/D conversion – ideal for turntables or analog sources.
Gold-plated speaker terminals.
12V trigger input for auto power-on with connected devices.
Auto standby after 30 or 60 minutes of inactivity.

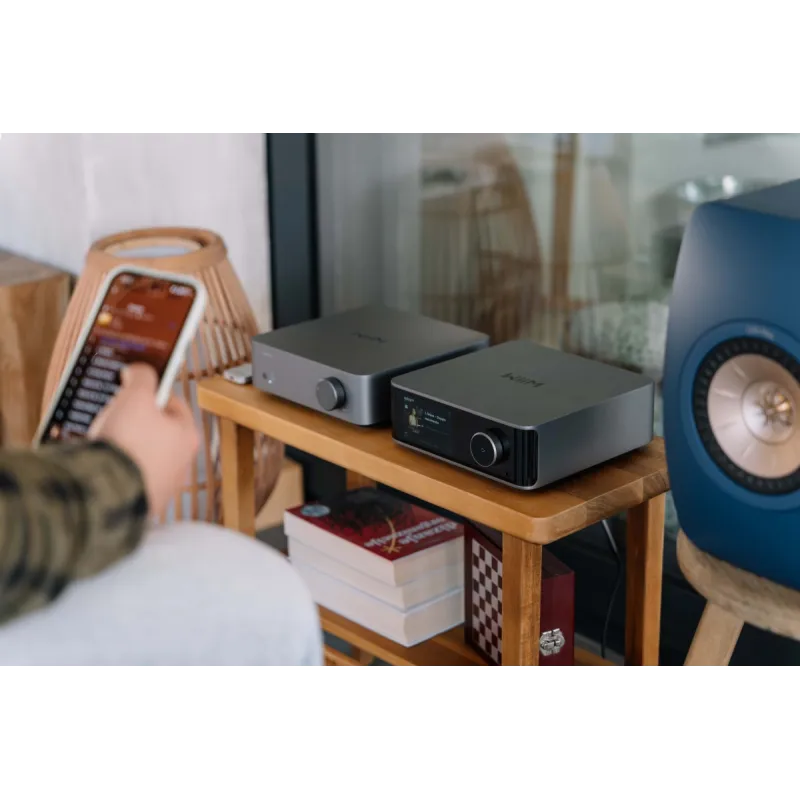

Ideal Match for WiiM Streamers
The Vibelink Amp is the perfect companion for WiiM Mini, Pro, Pro Plus, and Ultra streamers. Together, they form a sleek, high-resolution streaming solution for serious listeners.
Power Output: 100W/ch (8Ω), 200W/ch (4Ω)
THD+N: ≤0.0005%
SNR: ≥120 dB
Frequency Response: 20Hz–20kHz ±0.5 dB
DAC: ESS 9039Q2M
Dimensions: 200 × 200 × 63 mm
Weight: 2.05 kg
In the Box
User Manual ×1
Power Cable ×1
RCA Cable ×1
Optical Cable ×1
Banana Plug Set ×4
